BCA® DC216TTR2 BCADC216TTR2

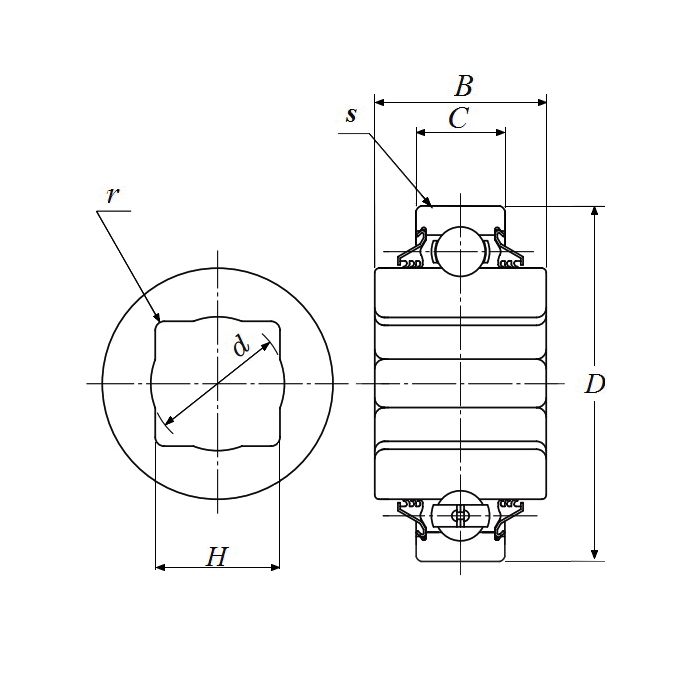

BCA® DC216TTR2 DC Series Type 5 Square Bore Farm Implement Bearing, Cylindrical Bearing, 58.725 mm Dia Bore, 140 mm OD, 63.5 mm W, 72500 N Load
- Manufacturer: NTN
- Brand Name: BCA®
- Part Number: BCADC216TTR2
- MPN: DC216TTR2
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
BCA® Farm Implement Bearing, Type 5 Square Bore, Series: DC Series, Cylindrical Bearing, 58.725 mm Bore Dia, 140 mm Outside Dia, 63.5 mm W, 72500 N, Through Hardened Steel Bearing, Nitrile Rubber Seal, -40 to 120 deg C
| Bearing Material | : | Through Hardened Steel |
| Bearing Type | : | Cylindrical |
| Bore Diameter | : | 58.725 mm |
| Load Capacity | : | 72500 N |
| Outside Diameter | : | 140 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | DC Series |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Type 5 Square Bore |
| Width | : | 63.5 mm |
- Sealed on both sides with rugged triple lip nitrite rubber seals
- Crimped to outer ring grooves for ultimate seal security
- Seals bonded to heavy gauge trash guard shields
- Flexible nylon retainer
- C3 radial clearance greater than normal
- Ability to support both axial and radial loads
- Relubricatable
- ISO class 0 precision rating
- 72500 N dynamic/53000 N static
