Barden SR4FF3 G-2 BARSR4FF

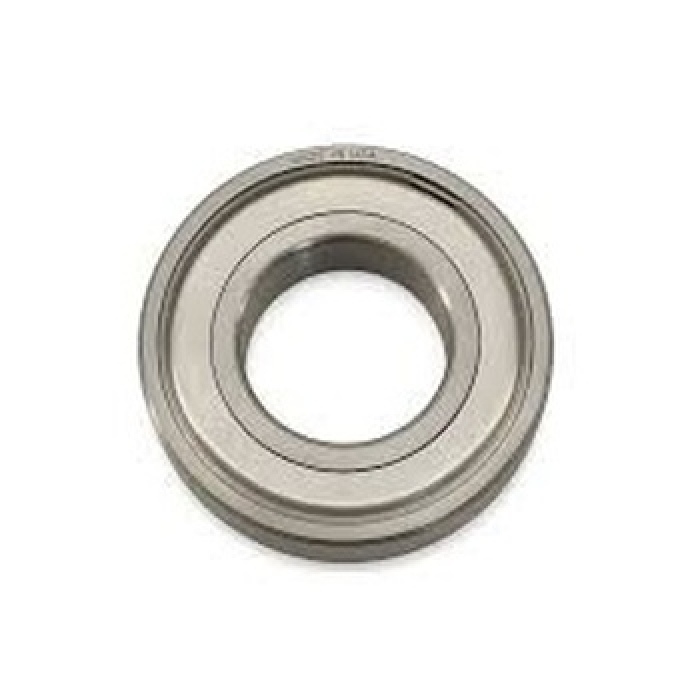

Barden SR4FF3 G-2 Deep Groove Instrument Bearing, 1/4 in Dia Bore, 5/8 in OD, 1 Row, 0.196 in W, 694 N Dynamic/156 N Static Load

  • Manufacturer: Schaeffler Group
  • Brand Name: Barden
  • Part Number: BARSR4FF
  • MPN: SR4FF3 G-2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Barden Deep Groove Instrument Bearing, 1/4 in Bore Dia, 5/8 in Outside Dia, 1 Row, 0.196 in W, Double Flexeal Closure, 694 N Dynamic/156 N Static, Stainless Steel Bearing, Fiber Seal, Aluminum/Fiber Laminate Cage, 105000 rpm Maximum, 350 deg F, Uncoated

Bearing Material      :      Stainless Steel
Bore Diameter      :      1/4 in
Cage Material      :      Aluminum/Fiber Laminate
Closure Type      :      Double Flexeal
Finish      :      Uncoated
Load Capacity      :      694 N Dynamic/156 N Static
Maximum Speed      :      105000 rpm
Number of Rows      :      1
Outside Diameter      :      5/8 in
Seal Material      :      Fiber
Temperature Rating      :      350 deg F
Width      :      0.196 in
  • AISI 440C rings and balls
  • Exxon Beacon 325 grease lubrication
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Barden_G_12_CHEVRON_SR1_2_Catalog.pdf
