Barden SR3SS3 G-2 BARSR3SS3G2
  1. pin-int

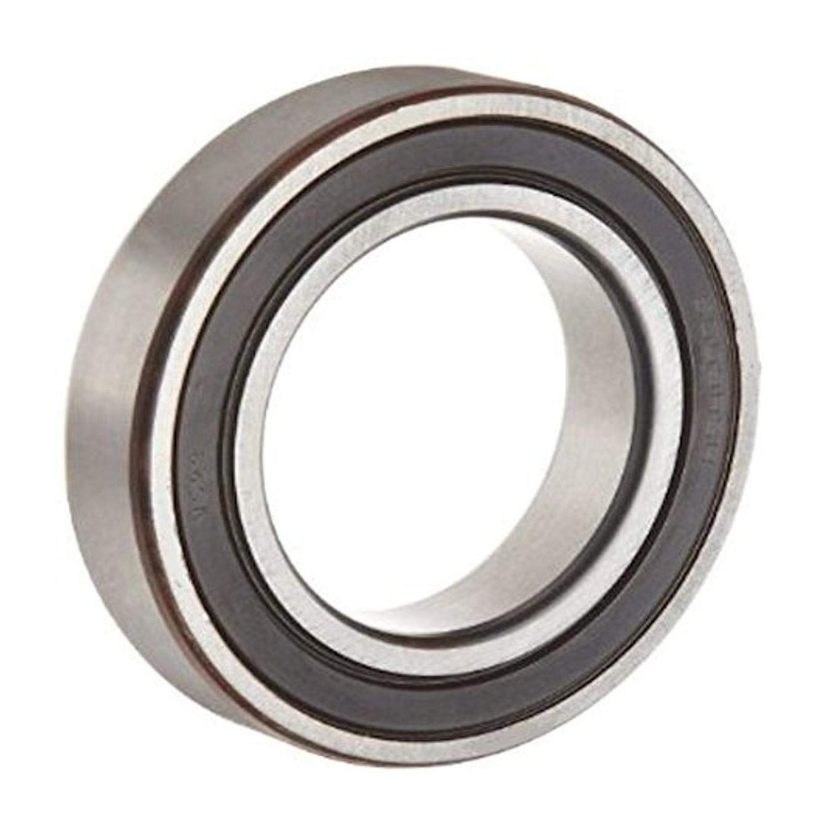

Barden SR3SS3 G-2 BARSR3SS3G2

Barden SR3SS3 G-2 Deep Groove Instrument Bearing, 3/16 in Dia Bore, 1/2 in OD, 1 Rows, 0.196 in W, 614 N Dynamic/120 N Static Load

  • Manufacturer: Schaeffler Group
  • Brand Name: Barden
  • Part Number: BARSR3SS3G2
  • MPN: SR3SS3 G-2
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Barden Deep Groove Instrument Bearing, 3/16 in Bore, 1/2 in OD, 1 Rows, 0.196 in Width, Double Shield Closure, 614 N Dynamic/120 N Static Load, Stainless Steel Bearing, Metal Seal, Stainless Steel Cage, 135000 rpm Maximum, 600 deg F, Uncoated

Bearing Material      :      Stainless Steel
Bore Diameter      :      3/16 in
Cage Material      :      Stainless Steel
Closure Type      :      Double Shield
Finish      :      Uncoated
Load Capacity      :      614 N Dynamic/120 N Static
Maximum Speed      :      135000 rpm
Number of Rows      :      1
Outside Diameter      :      1/2 in
Seal Material      :      Metal
Temperature Rating      :      600 deg F
Width      :      0.196 in
  • AISI 440C rings and balls
  • Exxon Beacon 325 grease lubrication
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Barden_G_12_CHEVRON_SR1_2_Catalog.pdf
