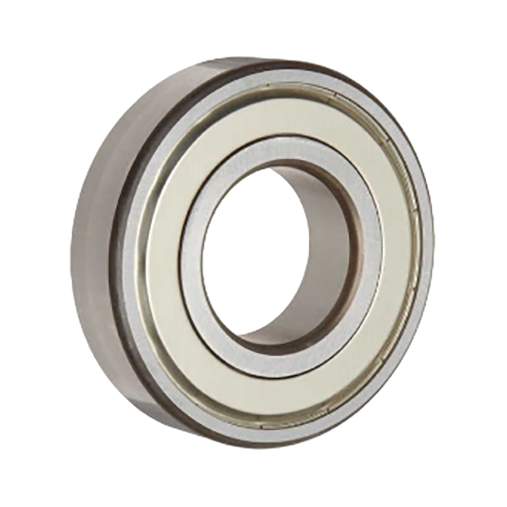

Barden 206SST5 G-74 BAR206SST5
Barden 206SST5 G-74 Deep Groove Spindle Bearing, 30 mm Dia Bore, 62 mm OD, 1 Rows, 16 mm W, 19.07 kN Dynamic/13.09 kN Static Load
- Manufacturer: Schaeffler Group
- Brand Name: Barden
- Part Number: BAR206SST5
- MPN: 206SST5 G-74
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Deep groove ball bearings have full shoulders on both sides of the raceways of the inner and outer rings. They can accept radial loads, thrust loads in either direction, or a combination of loads. The full shoulders and the cages used in deep groove bearings make them suitable for the addition of closures. Besides single deep groove bearings with closures, Barden also offers duplex pairs with seals or shields on the outboard faces.
Barden Deep Groove Spindle Bearing, 30 mm Bore, 62 mm OD, 1 Rows, 16 mm Width, Double Shield Closure, 19.07 kN Dynamic/13.09 kN Static Load, Steel Bearing, Metal Seal, Aluminum/Phenolic Resin Cage, 28333 rpm Maximum, 600 deg F
| Bearing Material | : | Steel |
| Bore Diameter | : | 30 mm |
| Cage Material | : | Aluminum/Phenolic Resin |
| Closure Type | : | Double Shield |
| Load Capacity | : | 19.07 kN Dynamic/13.09 kN Static |
| Maximum Speed | : | 28333 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 62 mm |
| Seal Material | : | Metal |
| Temperature Rating | : | 600 deg F |
| Width | : | 16 mm |
- Exxon Unirex N3 grease lubrication
- ABEC 7 nominal tolerances
