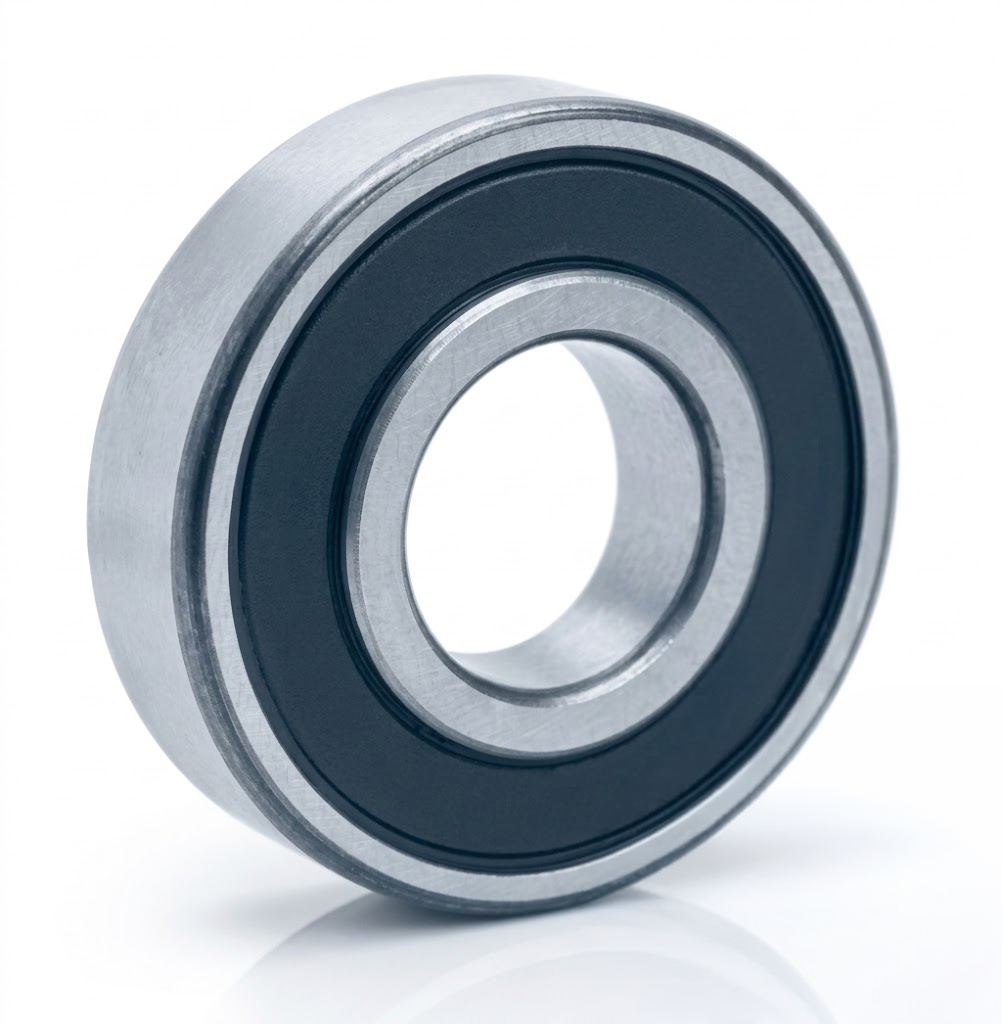

Barden 203FFT5 G-18 BAR203FFT5
Barden 203FFT5 G-18 Deep Groove Spindle Bearing, 17 mm Dia Bore, 40 mm OD, 1 Row, 12 mm W, 5.6 kN Dynamic/9.39 kN Static Load
- Manufacturer: Schaeffler Group
- Brand Name: Barden
- Part Number: BAR203FFT5
- MPN: 203FFT5 G-18
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Deep groove ball bearings have full shoulders on both sides of the raceways of the inner and outer rings. They can accept radial loads, thrust loads in either direction, or a combination of loads. The full shoulders and the cages used in deep groove bearings make them suitable for the addition of closures. Besides single deep groove bearings with closures, Barden also offers duplex pairs with seals or shields on the outboard faces.
Barden Deep Groove Spindle Bearing, 17 mm Bore Dia, 40 mm Outside Dia, 1 Row, 12 mm W, Double Flexeal Closure, 5.6 kN Dynamic/9.39 kN Static, Steel Bearing, Fiber Seal, Aluminum/Fiber Laminate Cage, 850000 rpm Maximum, 300 deg F
| Bearing Material | : | Steel |
| Bore Diameter | : | 17 mm |
| Cage Material | : | Aluminum/Fiber Laminate |
| Closure Type | : | Double Flexeal |
| Load Capacity | : | 5.6 kN Dynamic/9.39 kN Static |
| Maximum Speed | : | 850000 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 40 mm |
| Seal Material | : | Fiber |
| Temperature Rating | : | 300 deg F |
| Width | : | 12 mm |
- NYE Rheotemp 500 grease lubrication
- ABEC 7 nominal tolerances
