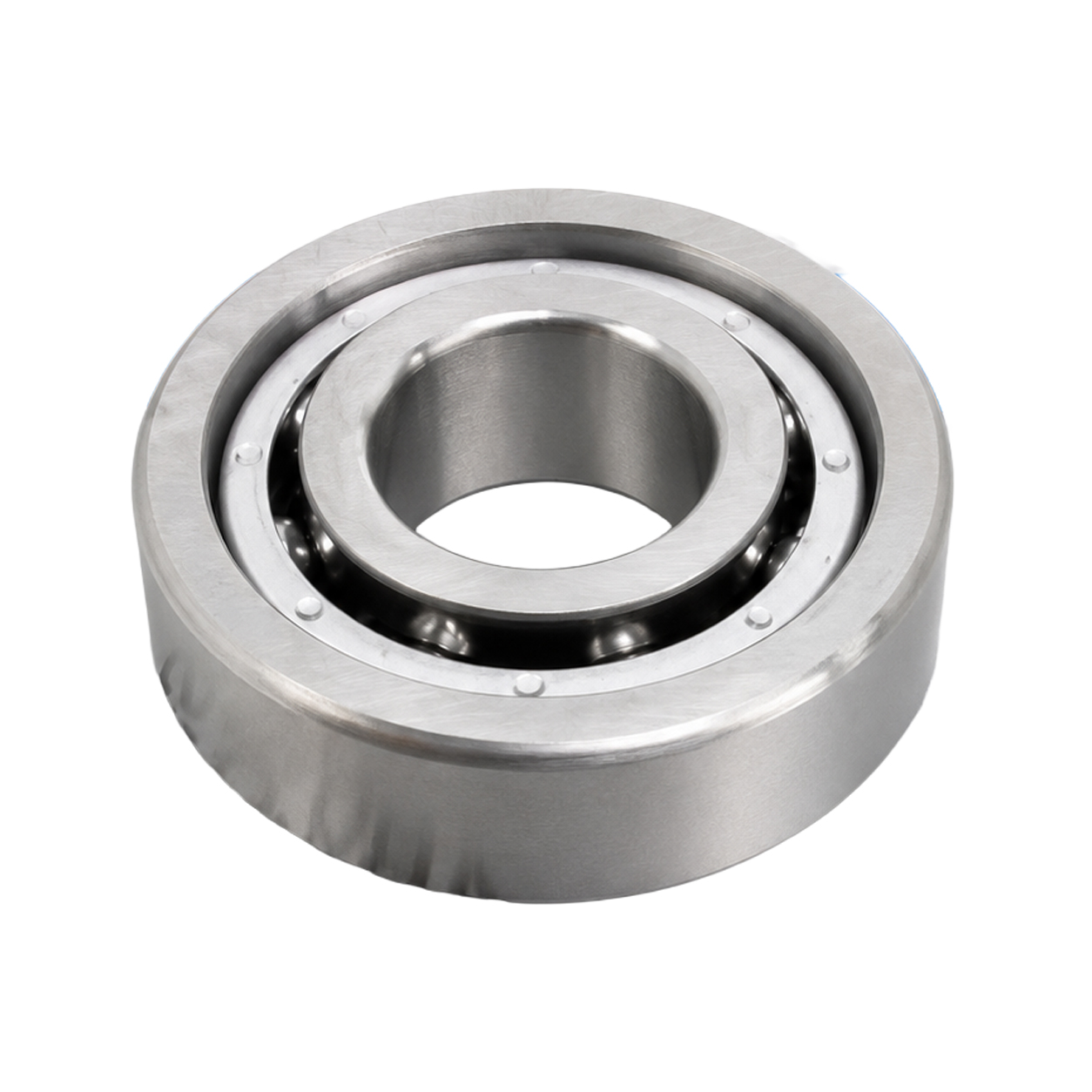

Barden 106BX48D17 BAR106BX48D17
Barden 106BX48D17 Angular Contact Spindle Bearing, 30 mm Dia Bore, 55 mm OD, 1 Row, 13 mm W, 15 deg, 2715 lb Dynamic/1843 lb Static Load
- Manufacturer: Schaeffler Group
- Brand Name: Barden
- Part Number: BAR106BX48D17
- MPN: 106BX48D17
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Angular contact bearings have one ring shoulder removed, either from the inner or outer ring. This allows a larger ball complement than found in comparable deep groove bearings, giving a greater load capacity. Speed capacity of angular contact bearings is also greater.
Barden Angular Contact Spindle Bearing, 30 mm Bore Dia, 55 mm Outside Dia, 1 Row, 13 mm W, 15 deg Contact, Open Closure, 2715 lb Dynamic/1843 lb Static, Steel Bearing, Phenolic Resin Cage, 60000 rpm Grease/33300 rpm Oil Maximum, 300 deg F, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 30 mm |
| Cage Material | : | Phenolic Resin |
| Closure Type | : | Open |
| Contact Angle | : | 15 deg |
| Finish | : | Uncoated |
| Load Capacity | : | 2715 lb Dynamic/1843 lb Static |
| Maximum Speed | : | 60000 rpm Grease/33300 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 55 mm |
| Temperature Rating | : | 300 deg F |
| Width | : | 13 mm |
- Relieved inner ring
- Universal mounting
- ABEC 7 nominal tolerances
