Bando 5VX750 BAN5VX750

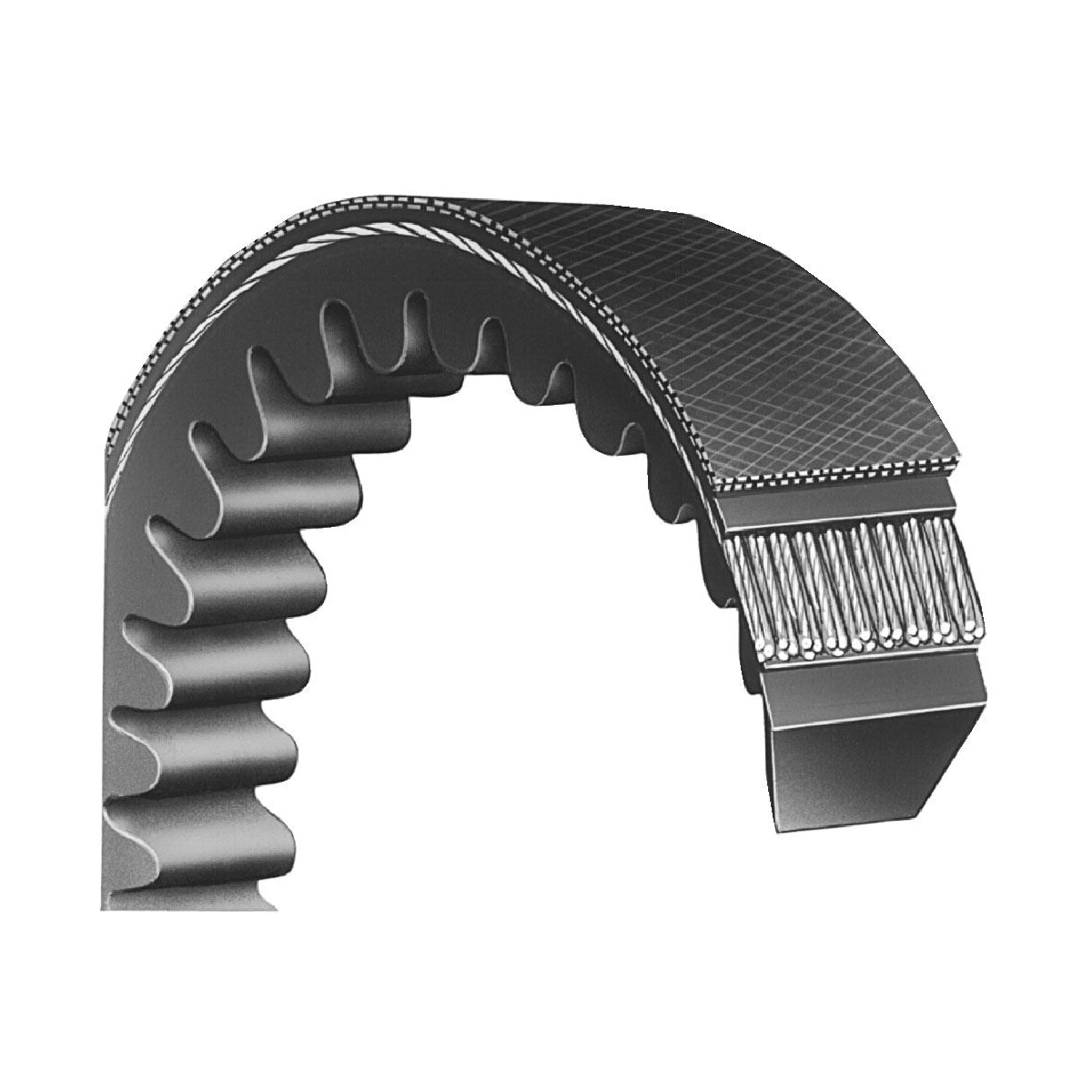

Bando Power Ace® 5VX750 Cogged V-Belt, 5V Section, 0.62 in W Top, 75 in L Outside, 0.54 in THK, Rubber

  • Manufacturer: Bando
  • Brand Name: Bando
  • Part Number: BAN5VX750
  • MPN: 5VX750
  • UPC: 649717295370
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Studies have determined that using Power Ace® Cog V-belts can save substantial dollars on energy consumption. The precision molded raw edge cogged construction transfers power with much greater efficiency, allowing for smaller sheave sizes and increased power transmission capabilities.

Bando Power Ace® V-Belt, Cogged, 5V Section, 0.62 in Top Width, 75 in Outside Length, 0.54 in Thickness, 4.4 in Minimum Pulley Dia, -30 to 90 deg C, Rubber, Polyester Reinforced

Material      :      Rubber
Minimum Pulley Diameter      :      4.4 in
Outside Length      :      75 in
Reinforced Material      :      Polyester
Section Size      :      5V
Temperature Range      :      -30 to 90 deg C
Thickness      :      0.54 in
Top Width      :      0.62 in
Type      :      Cogged
  • The bias cut cover stock provides lateral stability across the width of the belt while allowing axial flexibility
  • Stability is assured through the use of Banprene® cushion stock that maintains cord integrity, assuring uniform distribution of load transmission
  • The fiber loaded cogged construction provides optimum flexibility and minimizes heat build-up
  • Meets RMA standards for oil and heat resistance and static conductivity
