Bando 500-5M-15 BAN5005M15

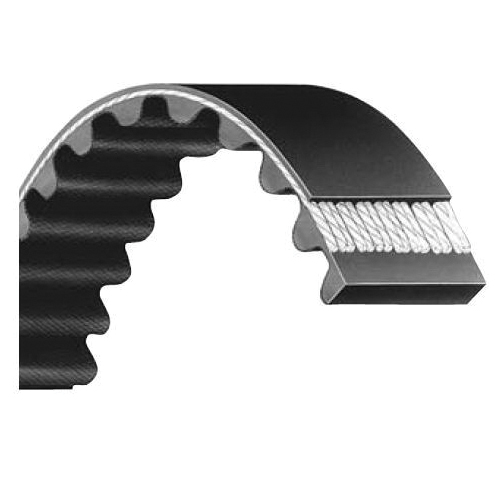

Bando Synchro-Link® 500-5M-15 High Torque Drive Synchronous Timing Belt, 100 Teeth, 5 mm Pitch, 500 mm OAL, 15 mm W, Neoprene

  • Manufacturer: Bando
  • Brand Name: Bando
  • Part Number: BAN5005M15
  • MPN: 500-5M-15
  • UPC: 649717173357
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Synchro-Link® HT (High Torque Synchronous) belts Curvilinear tooth design improves stress distribution to provide high horsepower ratings over a wide speed range and high torque transmission at low speeds.

Bando Synchro-Link® Timing Belt, High Torque Drive Synchronous, Series: 5M, 100 Teeth, 5 mm Pitch, 500 mm Overall Length, 15 mm Width, -30 to 90 deg C Ambient, Round Curvilinear Tooth Profile, Neoprene, Fiberglass Reinforced

Material      :      Neoprene
Number of Teeth      :      100
Overall Length      :      500 mm
Pitch      :      5 mm
Reinforced Material      :      Fiberglass
Series      :      5M
Temperature Range      :      -30 to 90 deg C Ambient
Tooth Profile      :      Round Curvilinear
Type      :      High Torque Drive Synchronous
Width      :      15 mm
  • Rounded tooth profile meshes precisely with matching pulley grooves so there is no belt creep or slip to cause speed vibration
  • HT belt drives are 99% efficient, leading to significant energy savings on high horsepower applications
  • HT belts are thin and flexible so they do not generate heat build up, delivering long service life
  • Continuous, helically wound S and Z oriented fiberglass cord is the load carrying muscle of the belt
  • Fiberglass cord resists elongation and shock loads while providing excellent strength and service life
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bando_100H13U_Catalog.pdf
