Bando 2-5VX750 BAN2-5VX750
  1. pin-int

Bando 2-5VX750 BAN2-5VX750

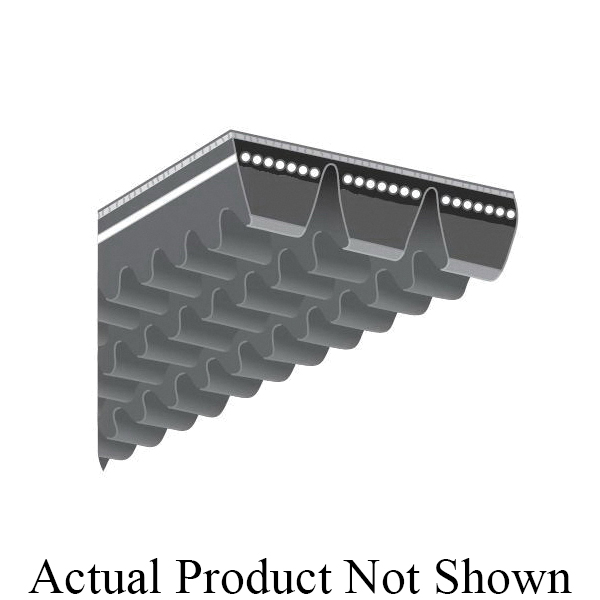

Bando Power Ace® 2-5VX750 Banded Cog Combo V-Belt, 5VX Section, 1.38 in W Top, 75 in L Outside, 0.64 in THK, Rubber

  • Manufacturer: Bando
  • Brand Name: Bando
  • Part Number: BAN2-5VX750
  • MPN: 2-5VX750
  • UPC: 649717428761
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Power Ace® Cog Combo combines the superior load carrying capacity of the Power Ace® Cog belt with the banded construction of Bando's Combo series to provide an exceptional belt for troublesome applications. The tie band assures lateral rigidity and guides the belts into the sheave grooves.

Bando Power Ace® Combo V-Belt, Banded Cog, 5VX Section, 1.38 in Top Width, 75 in Outside Length, 0.64 in Thickness, 2 Ribs, 4.4 in Minimum Pulley Dia, Rubber

Material      :      Rubber
Minimum Pulley Diameter      :      4.4 in
Number of Ribs      :      2
Outside Length      :      75 in
Section Size      :      5VX
Thickness      :      0.64 in
Top Width      :      1.38 in
Type      :      Banded Cog
  • The tie band, reinforced with high strength transverse tensile cords, is fully oil and heat resistant and permanently welds the individual belts together
  • Bando Power Ace® cog combos utilize the premium quality of Bando Power Ace® cog belts
  • Provide belt stability in drives where high shock or pulsating loads cause belts to whip, flip over or jump out of the sheave grooves
  • Assure equal load distribution
  • Ideal for use on vertical shaft drives
  • Meets RMA standards for oil and heat resistance and static conductivity
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bando_100H13U_Catalog.pdf
