Bando 124L100G BAN124L100G
  1. pin-int

Bando 124L100G BAN124L100G

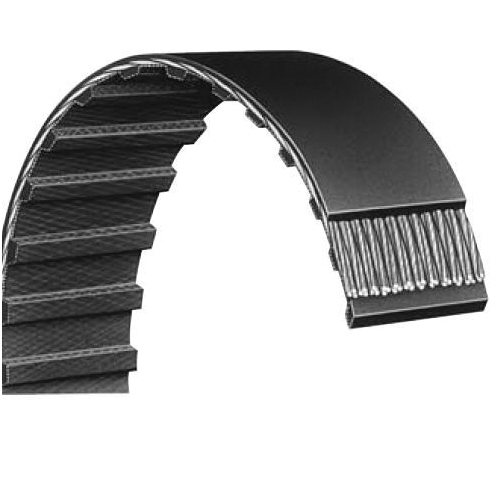

Bando Synchro-Link® 124L100G Trapezoidal Synchronous Timing Belt, 33 Teeth, 3/8 in Pitch, 12.38 in OAL, 1 in W, Neoprene

  • Manufacturer: Bando
  • Brand Name: Bando
  • Part Number: BAN124L100G
  • Alt Part Number: 124L100
  • MPN: 124L100G
  • UPC: 649717066024
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

The extra durable, highly flexible neoprene backing provides excellent abrasion and wear resistance - especially important if power is transmitted from the back of the belt. Backing also guards the tensile cords against oil, grease, dirt and moisture.

Bando Synchro-Link® Timing Belt, Trapezoidal Synchronous, Series: L Series, 33 Teeth, 3/8 in Pitch, 12.38 in Overall Length, 1 in Width, -22 to 194 deg F Ambient, Neoprene, Fiberglass Reinforced

Material      :      Neoprene
Number of Teeth      :      33
Overall Length      :      12.38 in
Pitch      :      3/8 in
Reinforced Material      :      Fiberglass
Series      :      L Series
Temperature Range      :      -22 to 194 deg F Ambient
Type      :      Trapezoidal Synchronous
Width      :      1 in
  • Continuous, helically wound high strength fiberglass tensile cords guarantee dimensional stability to eliminate take up adjustments
  • Heavy torque loads won't fatigue this super strong cord
  • S and Z orientation of the cords aid in minimizing belt tracking problems
  • Precision formed, oil and heat resistant neoprene teeth have a shear resistance equal to the tensile strength of the belt (under standard "6 teeth in mesh" tests)
  • Tooth design and tight manufacturing tolerances provide full surface contact between belt and pulley for smooth running characteristics
  • The tooth surface is protected by a low friction, clean running, wear resistant woven nylon facing
  • Seamless construction eliminates vibration
