Bando 120XL025G BAN120XL025G

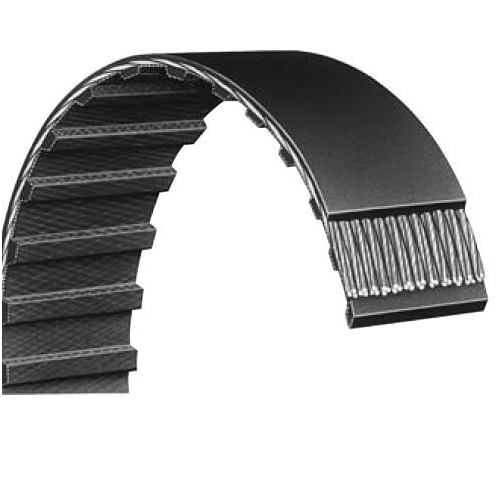

Bando Synchro-Link® 120XL025G Trapezoidal Synchronous Timing Belt, 60 Teeth, 1/5 in Pitch, 12 in OAL, 1/4 in W, Neoprene
- Manufacturer: Bando
- Brand Name: Bando
- Part Number: BAN120XL025G
- Alt Part Number: 120XL025
- MPN: 120XL025G
- UPC: 649717070694
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The extra durable, highly flexible neoprene backing provides excellent abrasion and wear resistance - especially important if power is transmitted from the back of the belt. Backing also guards the tensile cords against oil, grease, dirt and moisture.
Bando Synchro-Link® Timing Belt, Trapezoidal Synchronous, Series: XL Series, 60 Teeth, 1/5 in Pitch, 12 in Overall Length, 1/4 in Width, -22 to 194 deg F Ambient, Neoprene, Fiberglass Reinforced
| Material | : | Neoprene |
| Number of Teeth | : | 60 |
| Overall Length | : | 12 in |
| Pitch | : | 1/5 in |
| Reinforced Material | : | Fiberglass |
| Series | : | XL Series |
| Temperature Range | : | -22 to 194 deg F Ambient |
| Type | : | Trapezoidal Synchronous |
| Width | : | 1/4 in |
- Continuous, helically wound high strength fiberglass tensile cords guarantee dimensional stability to eliminate take up adjustments
- Heavy torque loads won't fatigue this super strong cord
- S and Z orientation of the cords aid in minimizing belt tracking problems
- Precision formed, oil and heat resistant neoprene teeth have a shear resistance equal to the tensile strength of the belt (under standard "6 teeth in mesh" tests)
- Tooth design and tight manufacturing tolerances provide full surface contact between belt and pulley for smooth running characteristics
- The tooth surface is protected by a low friction, clean running, wear resistant woven nylon facing
- Seamless construction eliminates vibration
