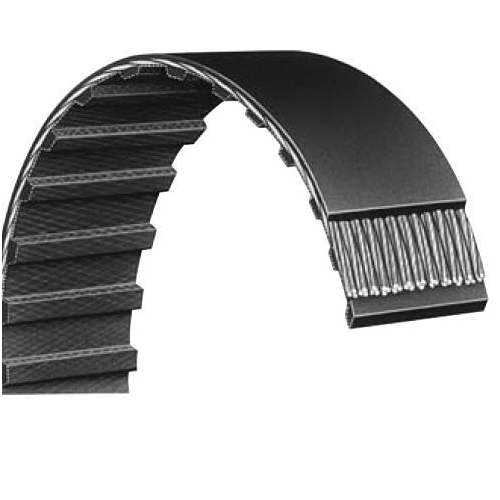

Bando 1140H200G BAN1140H200G

The extra durable, highly flexible neoprene backing provides excellent abrasion and wear resistance - especially important if power is transmitted from the back of the belt. Backing also guards the tensile cords against oil, grease, dirt and moisture.

Bando Synchro-Link® Timing Belt, Trapezoidal Synchronous, Series: H Series, 228 Teeth, 1/2 in Pitch, 114 in Overall Length, 2 in Width, -22 to 194 deg F Ambient, Neoprene, Fiberglass Reinforced

• Continuous, helically wound high strength fiberglass tensile cords guarantee dimensional stability to eliminate take up adjustments
• Heavy torque loads won't fatigue this super strong cord
• S and Z orientation of the cords aid in minimizing belt tracking problems
• Precision formed, oil and heat resistant neoprene teeth have a shear resistance equal to the tensile strength of the belt (under standard "6 teeth in mesh" tests)
• Tooth design and tight manufacturing tolerances provide full surface contact between belt and pulley for smooth running characteristics
• The tooth surface is protected by a low friction, clean running, wear resistant woven nylon facing
• Seamless construction eliminates vibration

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bando_109214M115_Manual.pdf
