Baldor-Reliance XT31502TS-4 BALXT31502TS-4

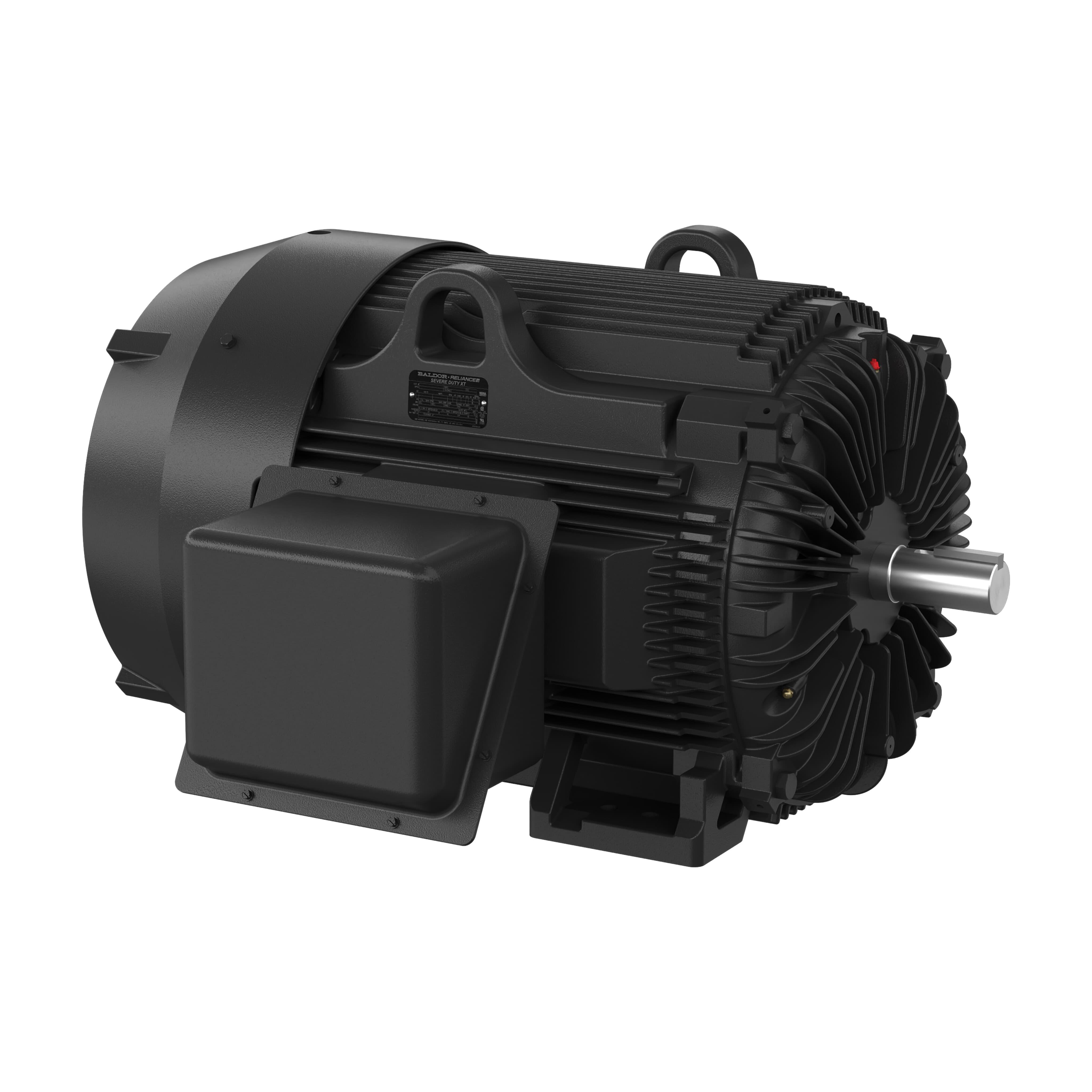

Baldor-Reliance XT31502TS-4 Severe Duty Motor, TEFC Enclosure, 150 hp, 460 VAC, 60 Hz, 3 ph Phase, 445TS Frame, 3600 rpm Speed, F1 Mount
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALXT31502TS-4
- Alt Part Number: A44-8881-3535
- MPN: XT31502TS-4
- UPC: 781568965580
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-Reliance, XT31502TS-4, Motor, Severe Duty, 150 hp, 460 VAC, 165.0 A, 60 Hz Frequency, 3 ph, 3600 rpm Speed, 1 Speed, TEFC Enclosure, 445TS Frame, 2.375 in Shaft, Reversible Rotation, 1.15 Service Factor, F1 Mounting, 40 deg C, Insulation Class: F, Iron, 41.22 in L Dimensions
| Amperage Rating | : | 165.0 A |
| Dimensions | : | 41.22 in L |
| Enclosure Type | : | TEFC |
| Frame | : | 445TS |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 150 hp |
| Insulation Class | : | F |
| Material | : | Iron |
| Mounting Type | : | F1 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 2.375 in |
| Speed | : | 3600 rpm |
| Temperature Rating | : | 40 deg C |
| Type | : | Severe Duty |
| Voltage Rating | : | 460 VAC |
- Rigid Base Indicator
- 95.0 percent Efficiency at 100 percent Load
- 6 at 2 AWG Motor Lead Quantity/Wire Size
- Direct on line Starting Method
- POLYREX EM Grease
