Baldor-Reliance XT31256T-4 BALXT31256T-4

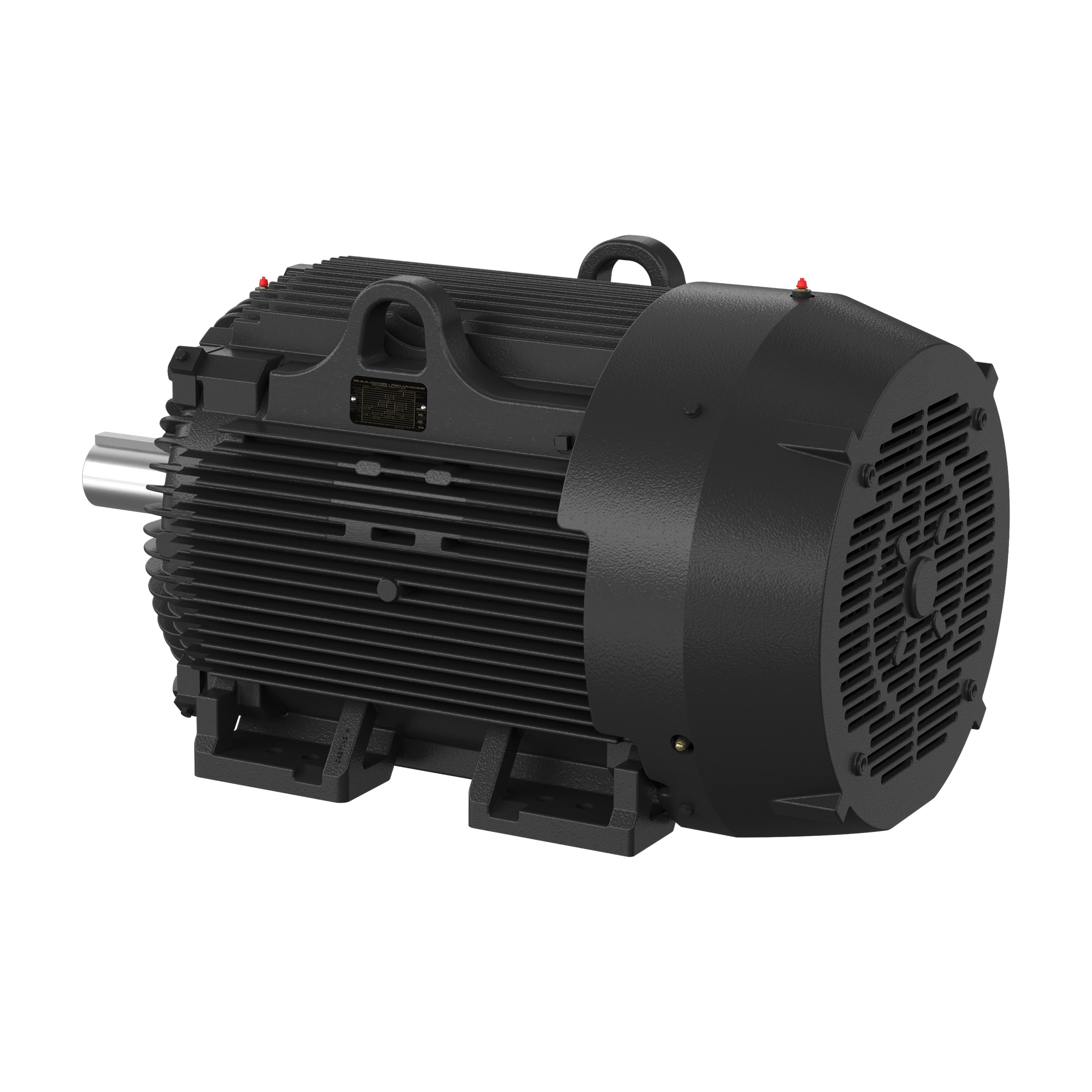

Baldor-Reliance XT31256T-4 Severe Duty Motor, TEFC Enclosure, 125 hp, 460 VAC, 60 Hz, 3 ph Phase, 445T Frame, 1200 rpm Speed, F1 Mount
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALXT31256T-4
- Alt Part Number: A44-9152-2120
- MPN: XT31256T-4
- UPC: 781568960646
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-Reliance, XT31256T-4, Motor, Severe Duty, 125 hp, 460 VAC, 144.0 A, 60 Hz Frequency, 3 ph, 1200 rpm Speed, 1 Speed, TEFC Enclosure, 445T Frame, 3.375 in Shaft, Reversible Rotation, 1.15 Service Factor, F1 Mounting, 40 deg C, Insulation Class: F, Iron, 44.97 in L Dimensions
| Amperage Rating | : | 144.0 A |
| Dimensions | : | 44.97 in L |
| Enclosure Type | : | TEFC |
| Frame | : | 445T |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 125 hp |
| Insulation Class | : | F |
| Material | : | Iron |
| Mounting Type | : | F1 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 3.375 in |
| Speed | : | 1200 rpm |
| Temperature Rating | : | 40 deg C |
| Type | : | Severe Duty |
| Voltage Rating | : | 460 VAC |
- Rigid Base Indicator
- 95.0 percent Efficiency at 100 percent Load
- 3 at 1 AWG Motor Lead Quantity/Wire Size
- Direct on line Starting Method
- POLYREX EM Grease
Specification Sheet
