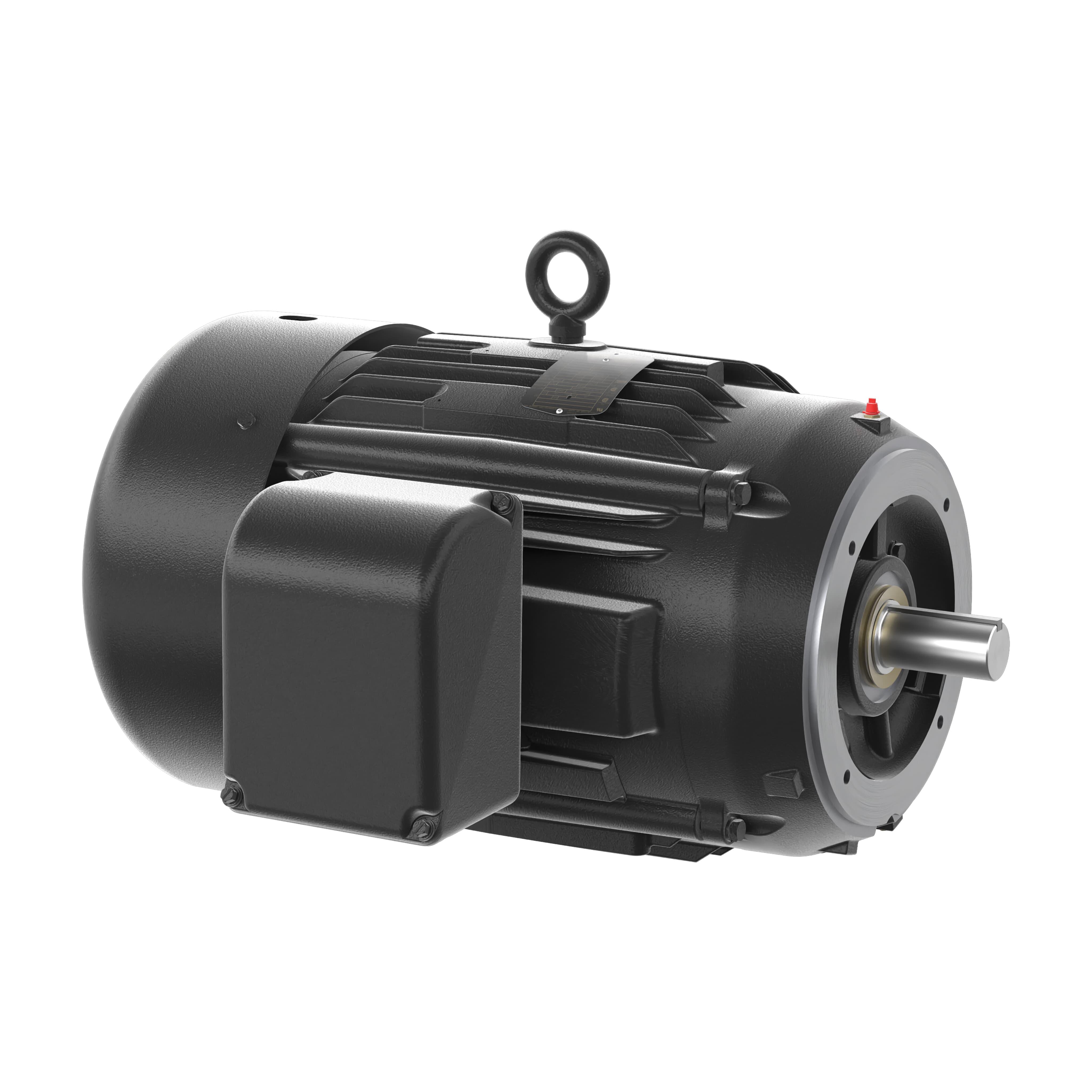

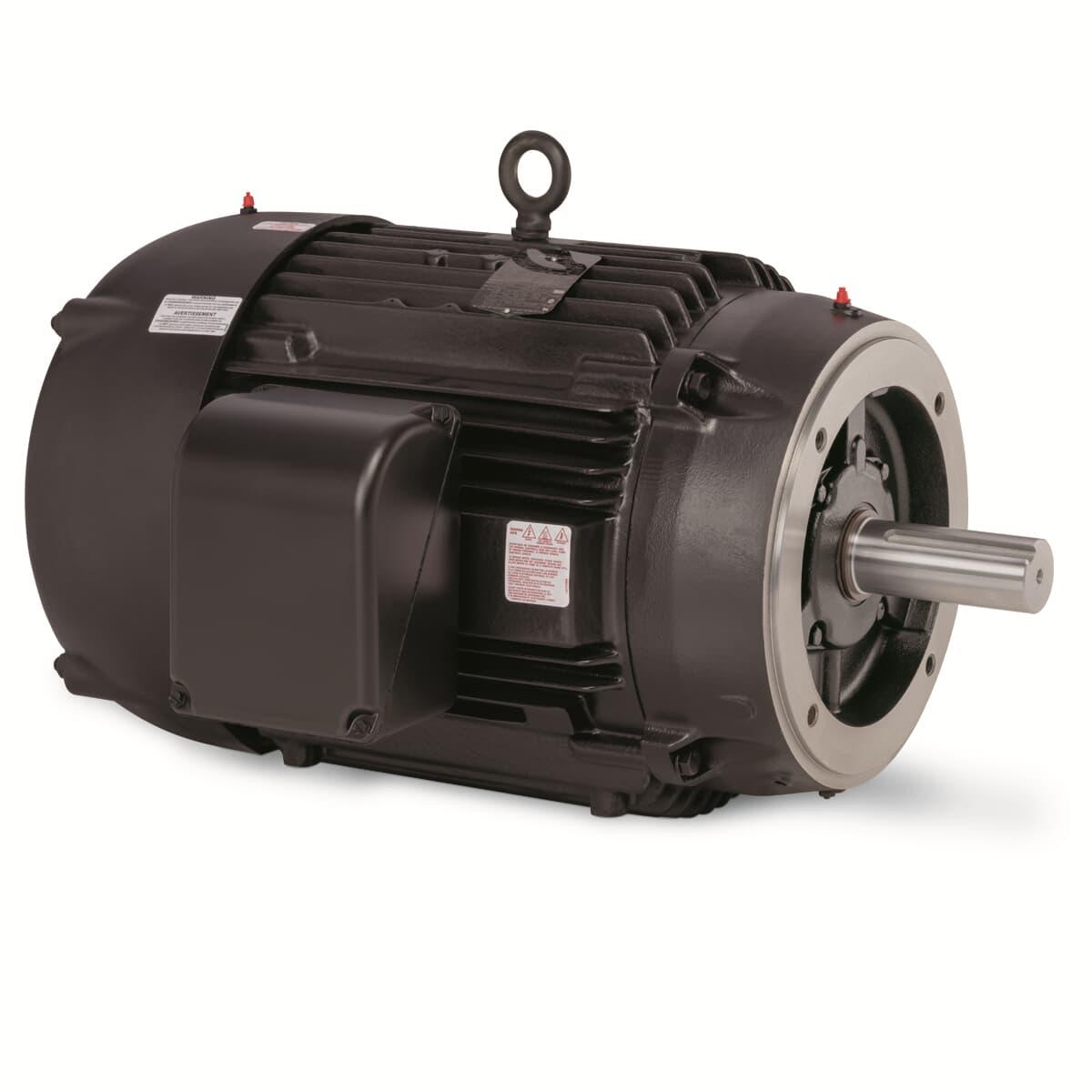

Baldor-Reliance VXT3302TS BALVXT3302TS
Baldor-Reliance VXT3302TS Severe Duty Motor, TEFC Enclosure, 30 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 286TSC Frame, 3525 rpm Speed, F1 Mount
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALVXT3302TS
- Alt Part Number: 10-0001436
- MPN: VXT3302TS
- UPC: 781568959541
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-Reliance, VXT3302TS, Motor, Severe Duty, 30 hp, 230/460 VAC, 68/34 A, 60 Hz Frequency, 3 ph, 3525 rpm Speed, 1 Speed, TEFC Enclosure, 286TSC Frame, 1.625 in Shaft, Reversible Rotation, 1.15 Service Factor, 135 lb-ft Torque, F1 Mounting, 40 deg C, Insulation Class: F, Iron, 6 Constant Torque Speed, 26.39 in L Dimensions
| Amperage Rating | : | 68/34 A |
| Constant Torque Speed Range | : | 6 |
| Dimensions | : | 26.39 in L |
| Enclosure Type | : | TEFC |
| Frame | : | 286TSC |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 30 hp |
| Insulation Class | : | F |
| Material | : | Iron |
| Mounting Type | : | F1 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 1.625 in |
| Speed | : | 3525 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 135 lb-ft |
| Type | : | Severe Duty |
| Voltage Rating | : | 230/460 VAC |
- 91.7 percent Efficiency at 100 percent Load
- Standard Lifting Lugs
- Flying Leads Motor Lead Termination
- Direct on line Starting Method
- 0.24052 ohm A Ph/0 ohm B Ph Line-Line Res. at 25 deg C
- 69 deg C Temperature Rise at Rated Load
- 85 deg C Temperature Rise at S.F. Load
- DOL Start Configuration
- 47 LB-FT Pull-Up Torque
- 65.2 LB-FT Locked-Rotor Torque
- 212 A Starting Current
Specification Sheet
