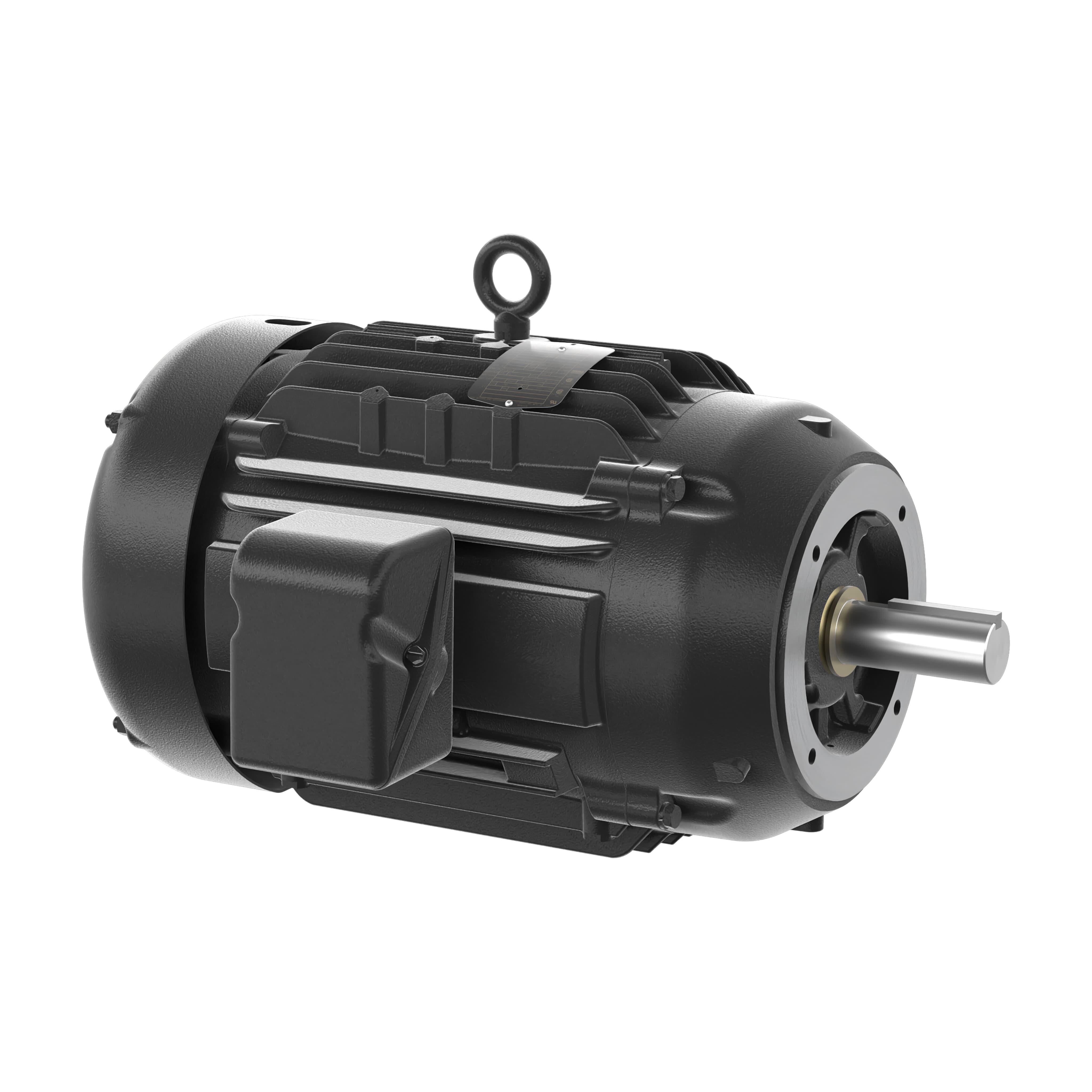

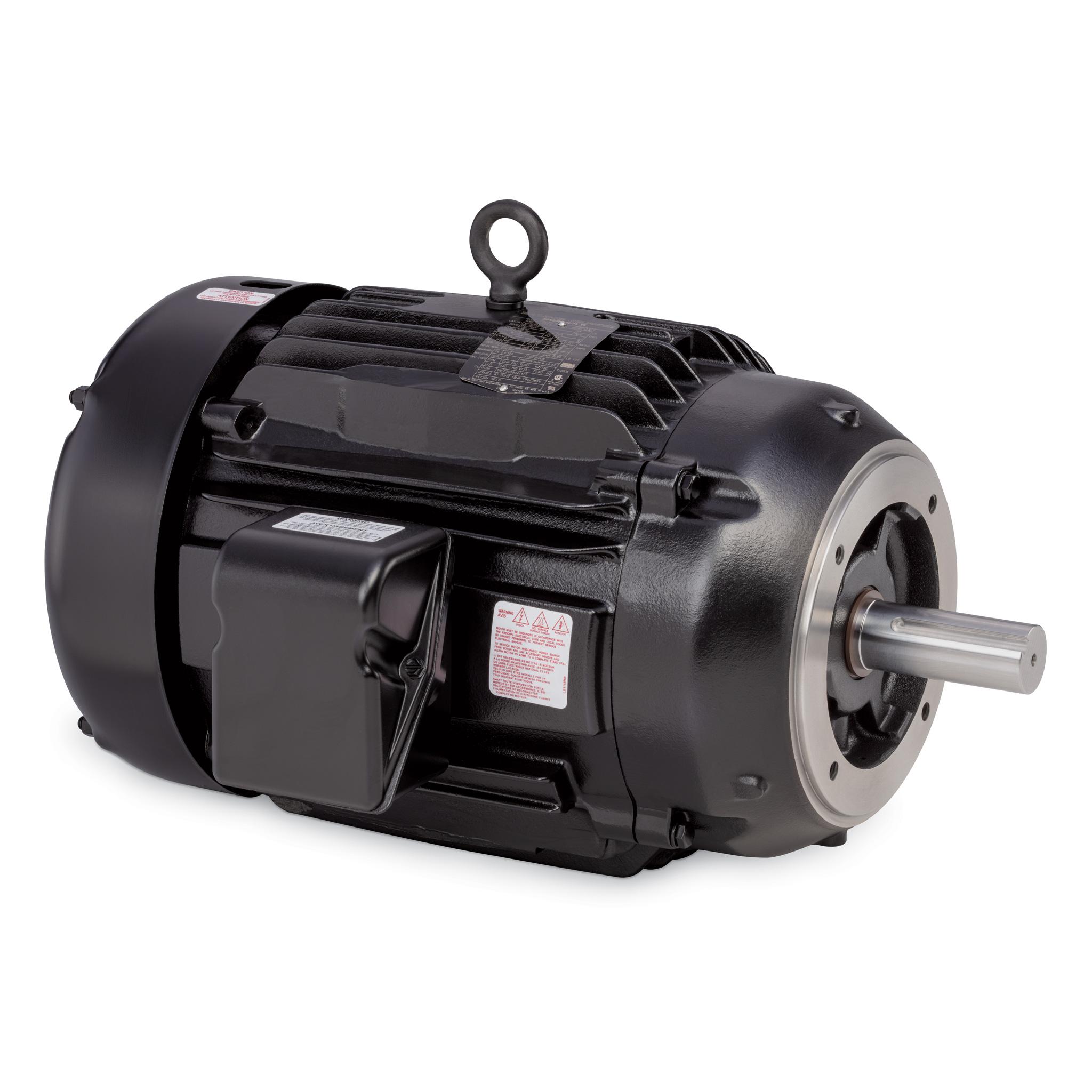

Baldor-Reliance VXT3106T BALVXT3106T
Baldor-Reliance VXT3106T Severe Duty Motor, TEFC Enclosure, 10 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 256TC Frame, 1180 rpm Speed, F1 Mount
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALVXT3106T
- Alt Part Number: 09-0000-2725
- MPN: VXT3106T
- UPC: 781568967065
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-Reliance, VXT3106T, Motor, Severe Duty, 10 hp, 230/460 VAC, 28.2/14.1 A, 60 Hz Frequency, 3 ph, 1180 rpm Speed, 1 Speed, TEFC Enclosure, 256TC Frame, 1.625 in Shaft, Reversible Rotation, 1.15 Service Factor, 121 lb-ft Torque, F1 Mounting, 40 deg C, Insulation Class: F, Iron, 3 Constant Torque Speed, 23.76 in L Dimensions
| Amperage Rating | : | 28.2/14.1 A |
| Constant Torque Speed Range | : | 3 |
| Dimensions | : | 23.76 in L |
| Enclosure Type | : | TEFC |
| Frame | : | 256TC |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 10 hp |
| Insulation Class | : | F |
| Material | : | Iron |
| Mounting Type | : | F1 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 1.625 in |
| Speed | : | 1180 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 121 lb-ft |
| Type | : | Severe Duty |
| Voltage Rating | : | 230/460 VAC |
- 91.0 percent Efficiency at 100 percent Load
- Standard Lifting Lugs
- Flying Leads Motor Lead Termination
- Direct on line Starting Method
- 0.746 ohm A Ph/0 ohm B Ph Line-Line Res. at 25 deg C
- 38 deg C Temperature Rise at Rated Load
- DOL Start Configuration
- 50.6 LB-FT Pull-Up Torque
- 67 LB-FT Locked-Rotor Torque
- 81 A Starting Current
Specification Sheet
