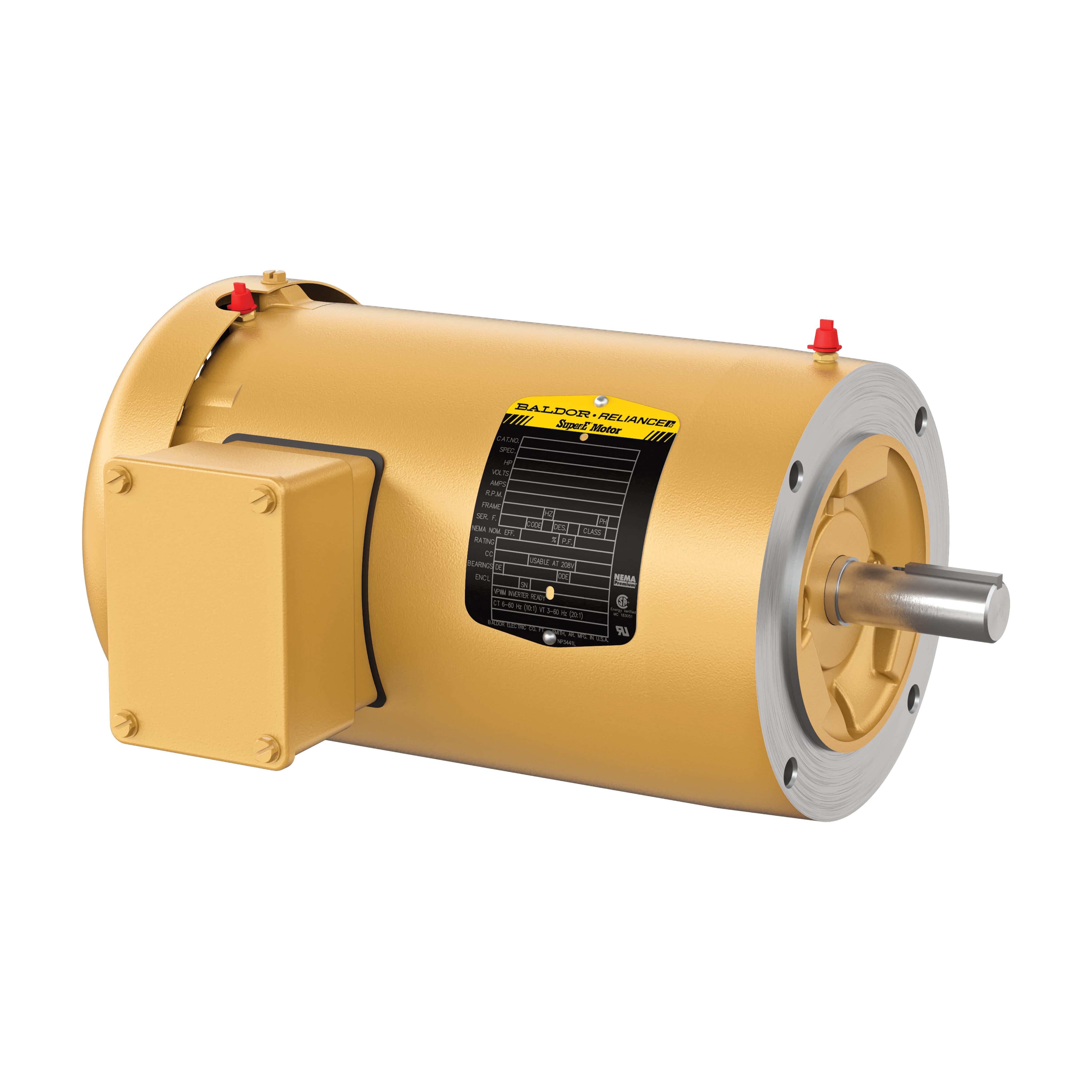

Baldor-Reliance VEM3558T BALVEM3558T
Baldor-Reliance Super-E® VEM3558T Type 3530M Continuous Duty AC Motor, Application Type: General Purpose AC Motors, Compressor Motors, Fan and Blower Motors, TEFC Enclosure, 2 hp, 208/230/460 V AC, 60 Hz, 3 Phase, 145TC Frame, 1755 rpm Speed
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALVEM3558T
- Alt Part Number: 35AA003G073G1
- MPN: VEM3558T
- UPC: 781568414149
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-Reliance Super-E® AC Motor, Type 3530M Continuous Duty, General Purpose AC Motors, Compressor Motors, Fan and Blower Motors Application Type, 2 hp, 208/230/460 V AC, 6/5.8/2.9 A, 60 Hz, 3 Phase, 1755 rpm, 1 Speed, TEFC, 145TC Frame, 7/8 in Shaft, Reversible, Service Factor: 1.15, Ball Bearing, C-Face/Footless/F1 Mount, 40 to 76 deg C, Insulation Class: Class F, Steel, 13.29 in L
| Amperage Rating | : | 6/5.8/2.9 A |
| Application Type | : | General Purpose AC Motors, Compressor Motors, Fan and Blower Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 13.29 in L |
| Enclosure Type | : | TEFC |
| Frame | : | 145TC |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 2 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | C-Face/Footless/F1 |
| Number of Speeds | : | 1 |
| Phase | : | 3 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 7/8 in |
| Speed | : | 1755 rpm |
| Temperature Rating | : | 40 to 76 deg C |
| Type | : | Type 3530M Continuous Duty |
| Voltage Rating | : | 208/230/460 VAC |
- Footless design reduces weight and improves safety
- Locked DE bearing to allow mounting in any configuration
- 60 Hz designs with 50 Hz information on 2, 4, 6-pole 1 to 125 hp ratings
- Suitable for inverter use per NEMA MG1 part 31.4.4.2
- Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
- NEMA Design L Motor
