Baldor-Reliance VEM3546 BALVEM3546

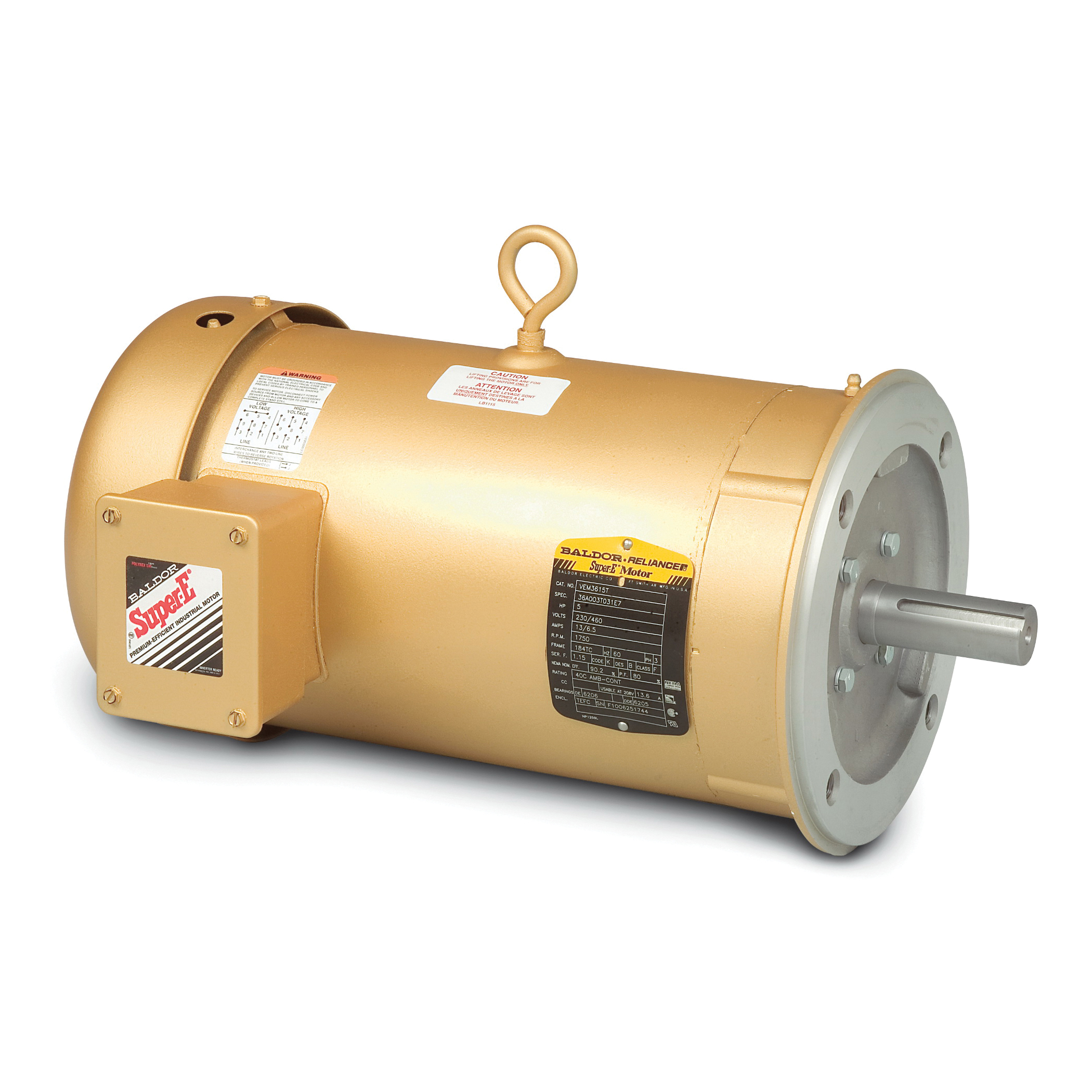

Baldor-Reliance Super-E® VEM3546 Type 3519M Continuous Duty AC Motor, Application Type: General Purpose AC Motors, Compressor Motors, Fan and Blower Motors, TEFC Enclosure, 1 hp, 208/230/460 V AC, 60 Hz, 3 Phase, 56C Frame, 1760 rpm Speed
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALVEM3546
- MPN: VEM3546
- UPC: 781568308608
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: EACH
-
Price:
Baldor-Reliance Super-E® AC Motor, Type 3519M Continuous Duty, General Purpose AC Motors, Compressor Motors, Fan and Blower Motors Application Type, 1 hp, 208/230/460 V AC, 3.1/3/1.5 A, 60 Hz, 3 Phase, 1760 rpm, 1 Speed, TEFC, 56C Frame, 5/8 in Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 2.99 ft-lb, C-Face/Footless/F1 Mount, 40 to 76 deg C, Insulation Class: Class F, Steel, 12.23 in L x 9.75 in W
| Amperage Rating | : | 3.1/3/1.5 A |
| Application Type | : | General Purpose AC Motors, Compressor Motors, Fan and Blower Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 12.23 in L x 9.75 in W |
| Enclosure Type | : | TEFC |
| Frame | : | 56C |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | C-Face/Footless/F1 |
| Number of Speeds | : | 1 |
| Phase | : | 3 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 5/8 in |
| Speed | : | 1760 rpm |
| Temperature Rating | : | 40 to 76 deg C |
| Torque Rating | : | 2.99 ft-lb |
| Type | : | Type 3519M Continuous Duty |
| Voltage Rating | : | 208/230/460 VAC |
- Footless design reduces weight and improves safety
- Locked DE bearing to allow mounting in any configuration
- 60 Hz designs with 50 Hz information on 2, 4, 6-pole 1 to 125 hp ratings
- Suitable for inverter use per NEMA MG1 part 31.4.4.2
- Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
- NEMA Design L Motor
