Baldor-Reliance UCLE3145 BALUCLE3145
  1. pin-int

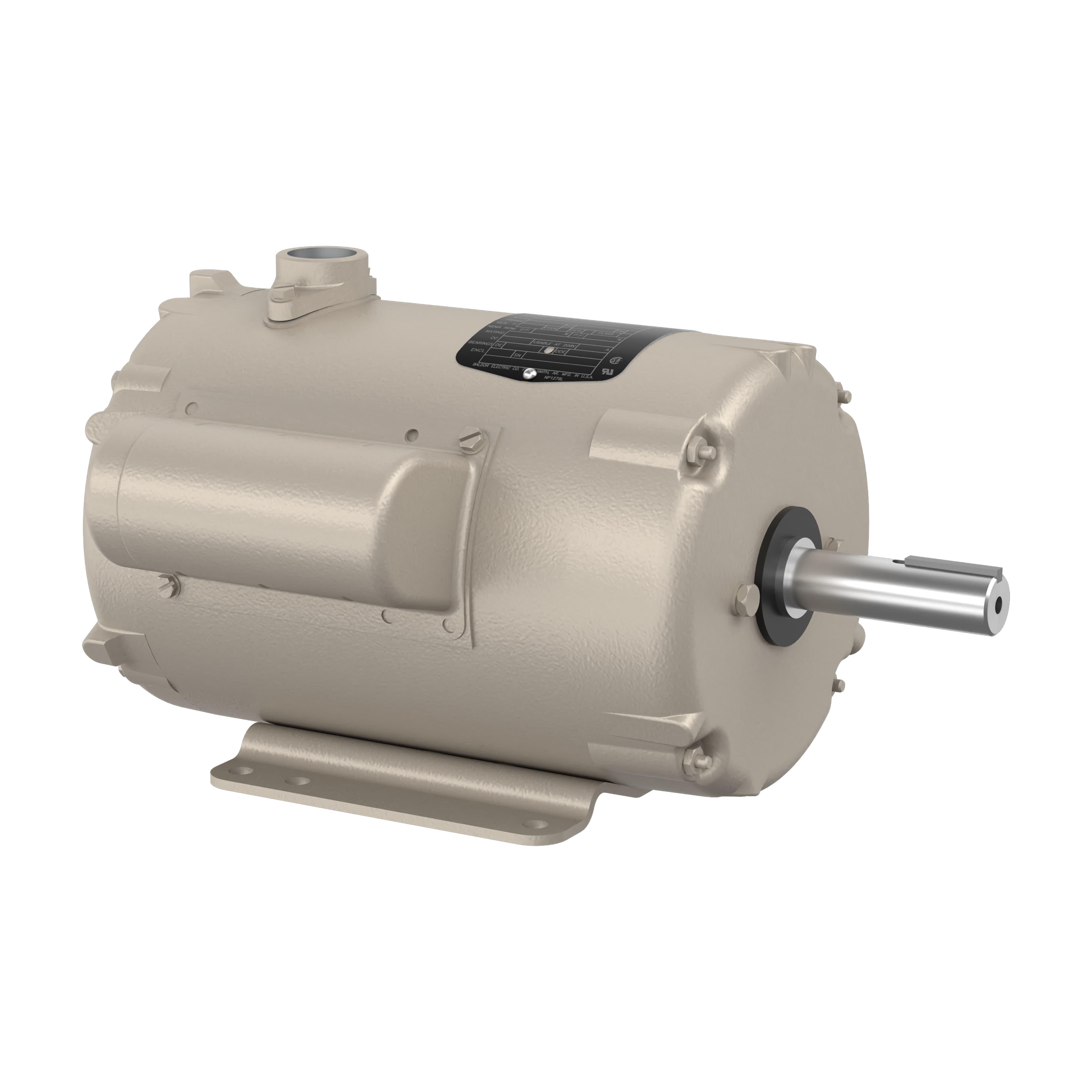

Baldor-Reliance UCLE3145 BALUCLE3145

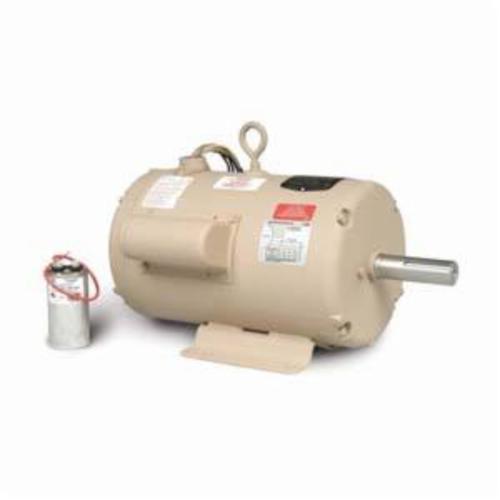

Baldor-Reliance UCLE3145 Continuous-Duty AC Motor, TENV Enclosure, 3 hp, 4-1/2 hp, 230 VAC, 60 Hz, 1 Phase, 145TZ Frame, 3450 rpm Speed, F-1 Mount

  • Manufacturer: ABB Baldor-Reliance
  • Brand Name: Baldor-Reliance
  • Part Number: BALUCLE3145
  • MPN: UCLE3145
  • UPC: 781568221976
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.

Baldor-Reliance AC Motor, Continuous-Duty, Farm Duty Motors, Fan & Blower Motors Application, 3540LC Motors, Direct On Line Starting Method Special Features, 3 hp, 4-1/2 hp, 230 VAC, 20/12.5 A, 60 Hz Frequency, 1 ph, 3450 rpm Speed, 1 Speed, TENV Enclosure, 145TZ Frame, 7/8 in Dia Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 14.6 ft-lb Torque, F-1 Mounting, 40 to 176 deg C, Insulation Class: Class F, Steel, 15.62 in L Dimensions

Amperage Rating      :      20/12.5 A
Application Type      :      Farm Duty Motors, Fan & Blower Motors
Bearing Type      :      Ball
Dimensions      :      15.62 in L
Enclosure Type      :      TENV
Frame      :      145TZ
Frequency Rating      :      60 Hz
Horsepower      :      3 hp, 4-1/2 hp
Insulation Class      :      Class F
Material      :      Steel
Mounting Type      :      F-1
Number of Speeds      :      1
Phase      :      1
Rotation      :      Reversible
Service Factor      :      1
Shaft Size      :      7/8 in Dia
Special Features      :      3540LC Motors, Direct On Line Starting Method
Speed      :      3450 rpm
Temperature Rating      :      40 to 176 deg C
Torque Rating      :      14.6 ft-lb
Type      :      Continuous-Duty
  • Shaft length 3/4 in longer than NEMA standard
  • 1/4-20 tapped and keyed shaft
  • Convenient lead location for ease of conduit connectivity
  • Normally closed winding thermostats to protect against overheating
  • Lubed for life double sealed ball bearings on TEAO motors
  • Lip seal and V-ring slinger on DE for increased moisture resistance
