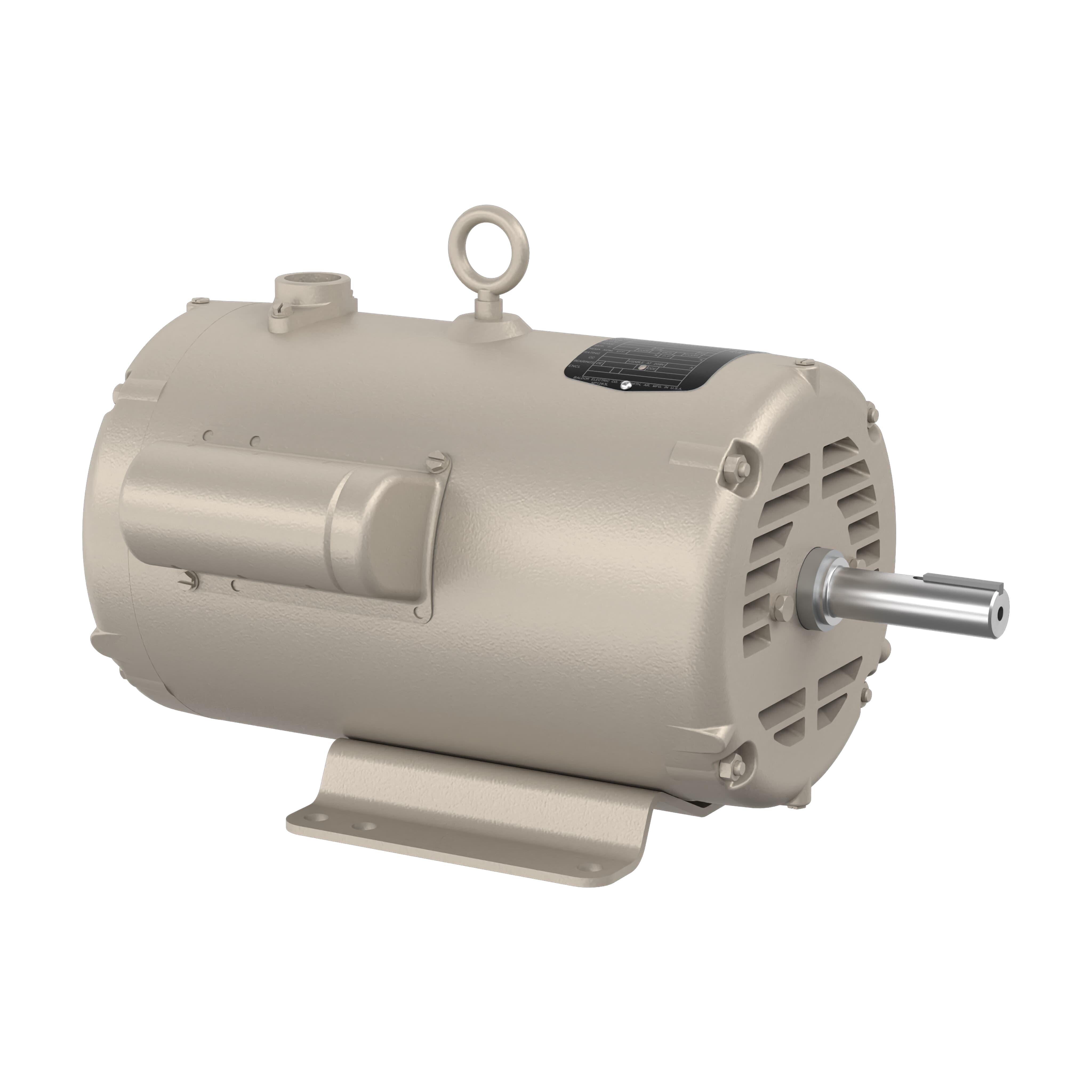

Baldor-Reliance UCL345 BALUCL345
Baldor-Reliance UCL345 AC Motor, 3 hp, 4-1/2 hp, 230 V AC, 60 Hz, 1 ph, 182Z Frame, 3450 rpm, F1 Foot Mount, Open Enclosure
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALUCL345
- Alt Part Number: 36F549-2510
- MPN: UCL345
- UPC: 781568122181
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-RelianceAC Motor, General Purpose AC Motor Application Type, Continuous Duty Motor, Farm Duty Motor Special Features, 3 hp, 4-1/2 hp, 230 V AC, 22 A, 60 Hz, 1 ph, 3450 rpm, 1 Speed, Open, 182Z Frame, 7/8 in Shaft, Reversible, Service Factor: 1, Ball Bearing, 6.8 ft-lb, F1 Foot Mount, 40 deg C, Insulation Class: Class F, Steel, 14.88 in L
| Amperage Rating | : | 22 A |
| Application Type | : | General Purpose AC Motor |
| Bearing Type | : | Ball |
| Dimensions | : | 14.88 in L |
| Enclosure Type | : | Open |
| Frame | : | 182Z |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 3 hp, 4-1/2 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | F1 Foot |
| Number of Speeds | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 7/8 in |
| Special Features | : | Continuous Duty Motor, Farm Duty Motor |
| Speed | : | 3450 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 6.8 ft-lb |
| Voltage Rating | : | 230 V AC |
- Without drip cover
- Without auxiliary box
