Baldor-Reliance UCL1015 BALUCL1015

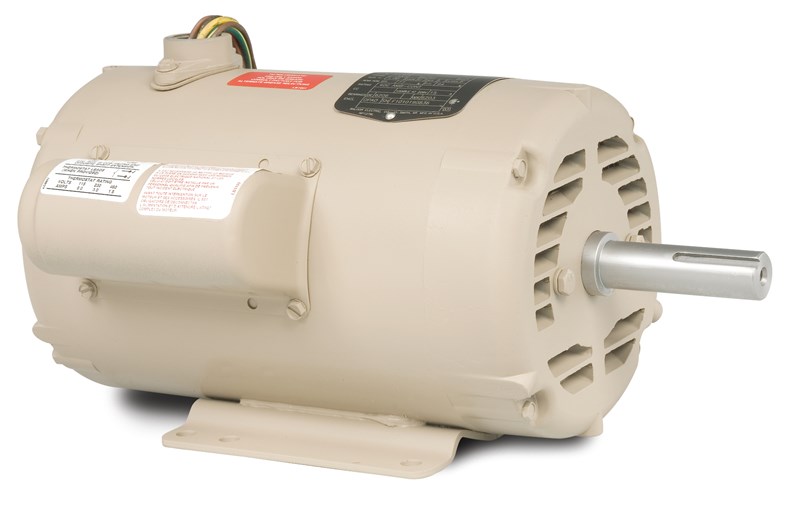

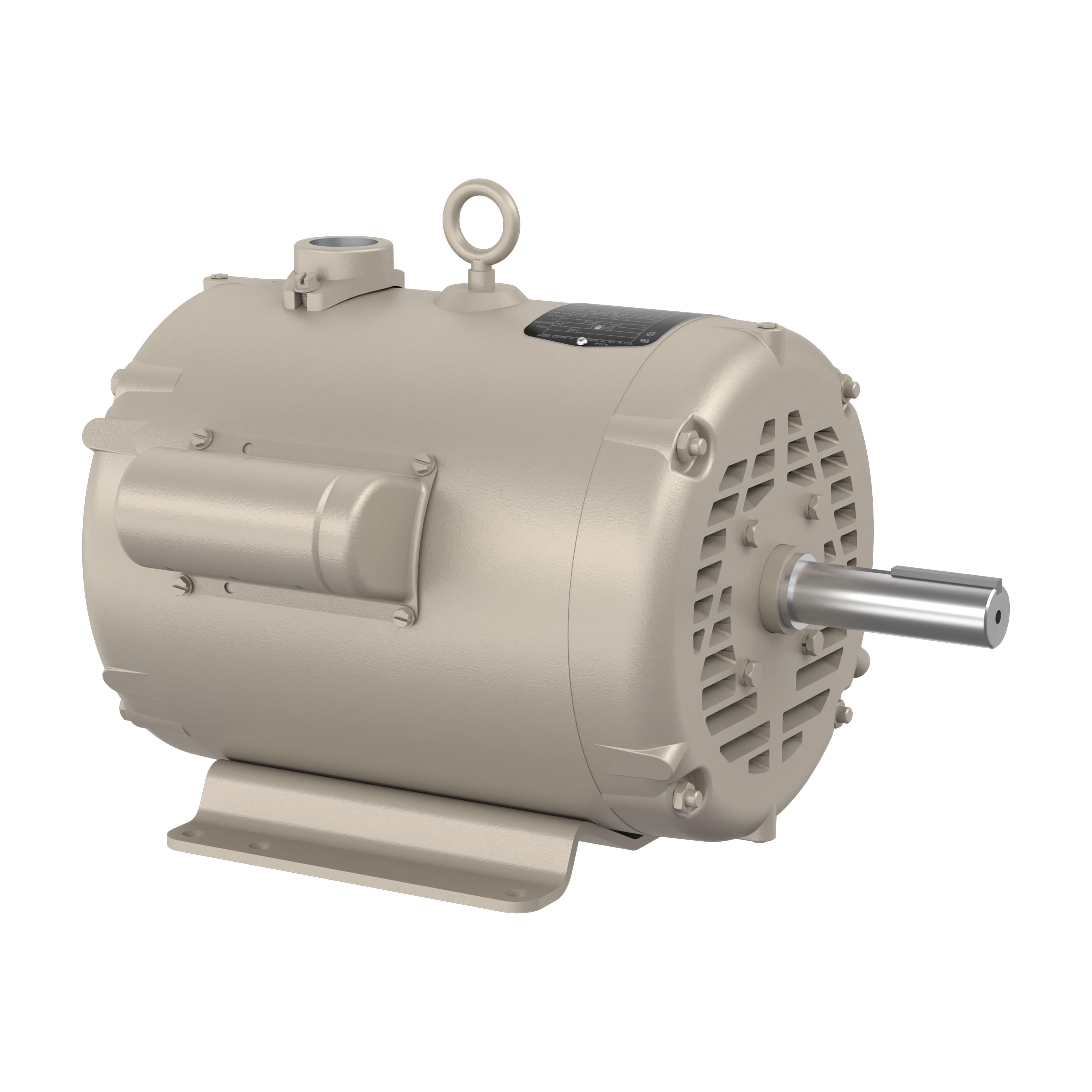

Baldor-Reliance UCL1015 Type 3744LC Continuous Duty Direct On Line Grain Dryer/Vane Axial Fan Motor, Open Enclosure, 10 hp, 15 hp, 230 VAC, 60 Hz, 1 Phase, 215Z Frame, 3450 rpm Speed, Foot Rigid Mount
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALUCL1015
- Alt Part Number: 37M291W198
- MPN: UCL1015
- UPC: 781568122228
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.
Baldor-Reliance Grain Dryer/Vane Axial Fan Motor, Type 3744LC Continuous Duty Direct On Line, General Purpose AC Motors Application, 10 hp, 15 hp, 230 VAC, 44 A, 60 Hz Frequency, 1 ph, 3450 rpm Speed, 1 Speed, Open Enclosure, 215Z Frame, 1-1/8 in Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 22.5 ft-lb Torque, Foot Rigid Mounting, 40 to 176 deg C, Insulation Class: Class F, Steel, 17.81 in L Dimensions
| Amperage Rating | : | 44 A |
| Application Type | : | General Purpose AC Motors |
| Bearing Type | : | Sealed |
| Dimensions | : | 17.81 in L |
| Enclosure Type | : | Open |
| Frame | : | 215Z |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 10 hp, 15 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | Foot Rigid |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1-1/8 in |
| Speed | : | 3450 rpm |
| Temperature Rating | : | 40 to 176 deg C |
| Torque Rating | : | 22.5 ft-lb |
| Type | : | Type 3744LC Continuous Duty Direct On Line |
| Voltage Rating | : | 230 VAC |
- Shaft length 3/4 in longer than NEMA standard
- 1/4-20 tapped and keyed shaft
- Convenient lead location for ease of conduit connectivity
- Normally closed winding thermostats to protect against overheating
- Lubed for life double sealed ball bearings on TEAO motors
- Lip seal and V-ring slinger on DE for increased moisture resistance
