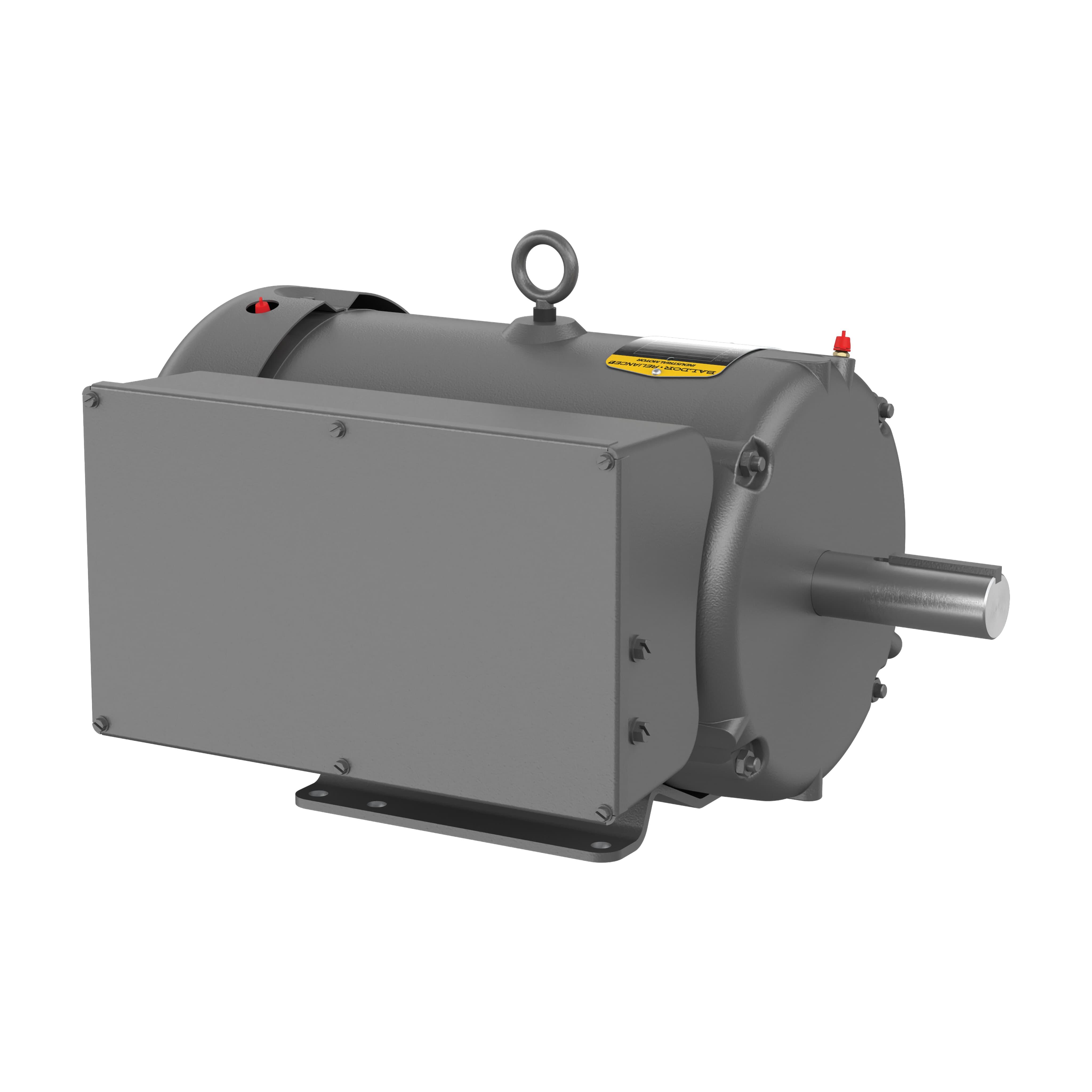

Baldor-Reliance L3712T BALL3712T
Baldor-Reliance L3712T Type 3748LC Continuous Duty AC Motor, TEFC Enclosure, 10 hp, 230 V AC, 60 Hz, 1 ph Phase, 215T Frame, 1740 rpm Speed, F1/Foot Rigid Mount
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALL3712T
- Alt Part Number: 37M293T875
- MPN: L3712T
- UPC: 781568100905
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
1-phase and 3-phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of general purpose motors are available in wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.
Baldor-Reliance AC Motor, Type 3748LC Continuous Duty, General Purpose AC Motors, Fan and Blower Motors Application, 10 hp, 230 V AC, 38 A, 60 Hz Frequency, 1 ph, 1740 rpm Speed, 1 Speed, TEFC Enclosure, 215T Frame, 1-3/8 in Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 29.8 ft-lb Torque, F1/Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 20.52 in L x 12.42 in H Dimensions
| Amperage Rating | : | 38 A |
| Application Type | : | General Purpose AC Motors, Fan and Blower Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 20.52 in L x 12.42 in H |
| Enclosure Type | : | TEFC |
| Frame | : | 215T |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 10 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | F1/Foot Rigid |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1-3/8 in |
| Speed | : | 1740 rpm |
| Temperature Rating | : | 40 to 76 deg C |
| Torque Rating | : | 29.8 ft-lb |
| Type | : | Type 3748LC Continuous Duty |
| Voltage Rating | : | 230 V AC |
- Low noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design provides optimized torque profiles
- Robust heavy gauge steel design
- NEMA Design L Motor
