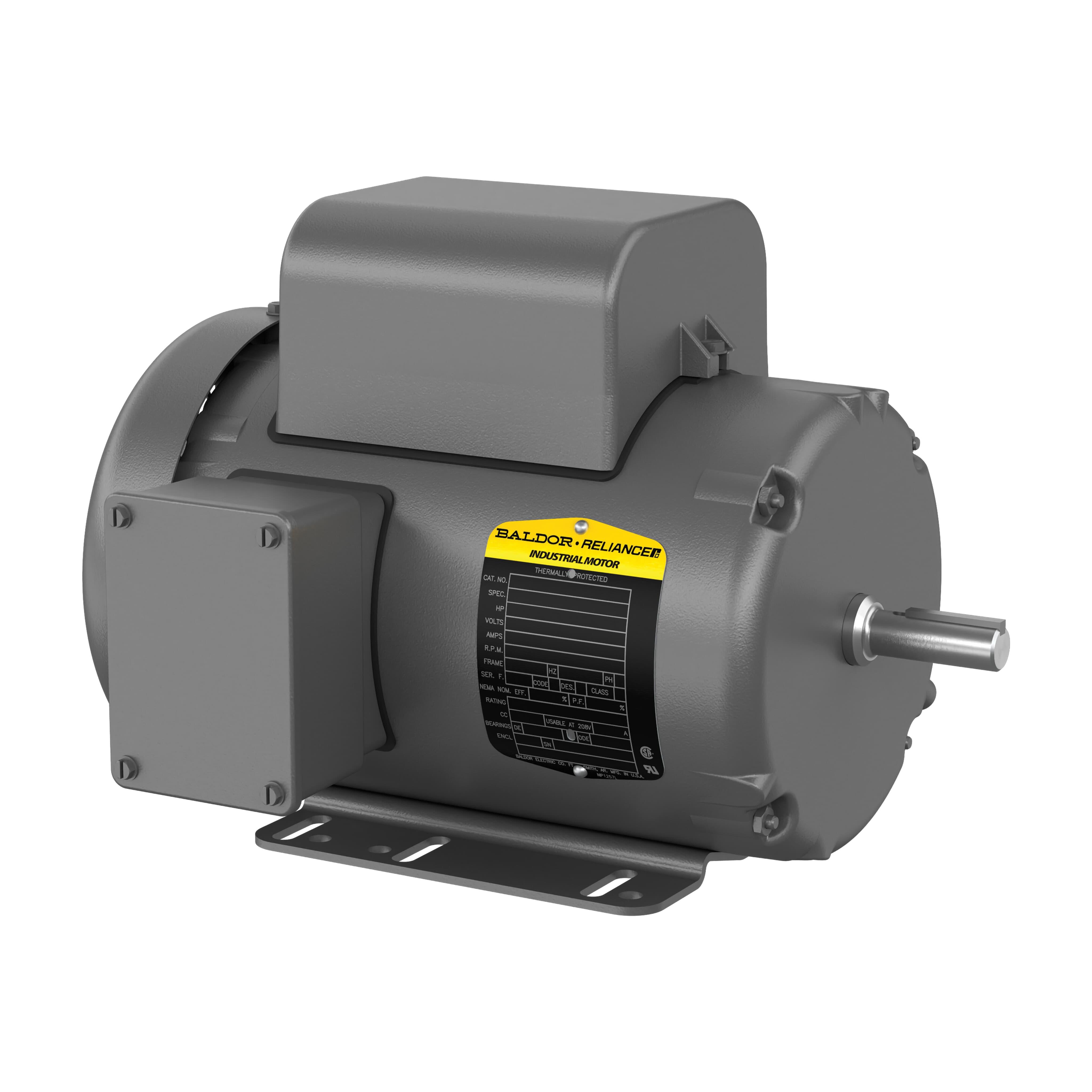

Baldor-Reliance L3514M BALFDL3514M
Baldor-Reliance L3514M Type 3532LC Continuous Duty AC Motor, 1-1/2 hp, 115/208/230 VAC, 60 Hz, 1 Phase, 56/56H Frame, 1725 rpm Speed, Foot Rigid Mounting
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALFDL3514M
- Alt Part Number: 35H611W114
- MPN: L3514M
- UPC: 781568100547
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of general purpose motors are available in ok wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.
Baldor-Reliance, L3514M, AC Motor, Type 3532LC Continuous Duty, General Purpose AC Motors, Fan & Blower Motors Application, 1-1/2 hp, 115/208/230 VAC, 16/7.9/8 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, 56/56H Frame, 5/8 in Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, Foot Rigid Mounting, 40 to 76 deg C, Steel, 13.81 in L x 9.88 in W x 9.06 in H Dimensions
| Amperage Rating | : | 16/7.9/8 A |
| Application Type | : | General Purpose AC Motors, Fan & Blower Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 13.81 in L x 9.88 in W x 9.06 in H |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
| Frame | : | 56/56H |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1-1/2 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | Foot Rigid |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 5/8 in |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 to 76 deg C |
| Type | : | Type 3532LC Continuous Duty |
| Voltage Rating | : | 115/208/230 VAC |
- Low noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design provides optimized torque profiles
- Robust heavy gauge steel design
- Lubed for life double sealed ball bearings
- Lip seal and V-ring slinger on DE for increased moisture resistance
- Gasketed manual reset thermal overload protection
