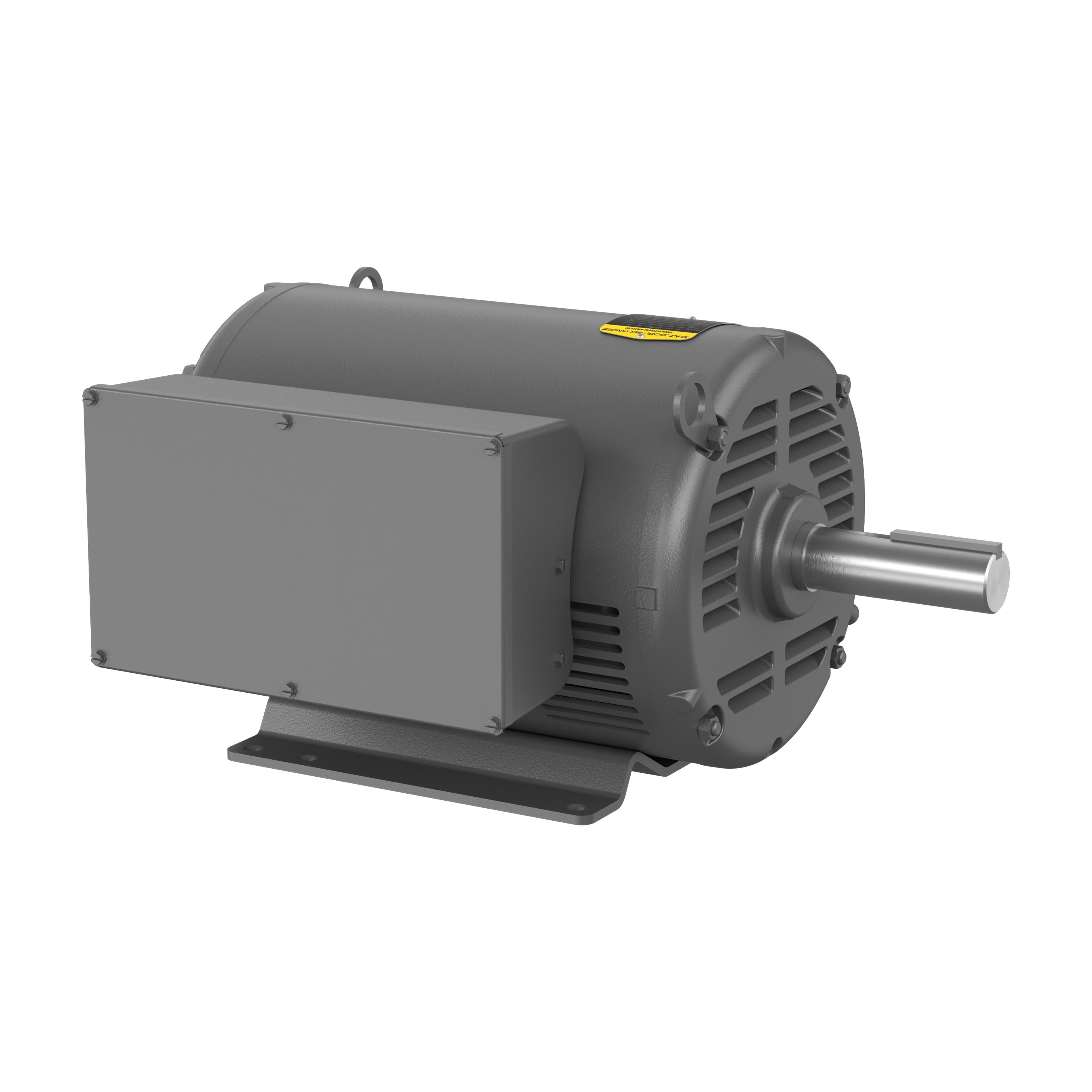

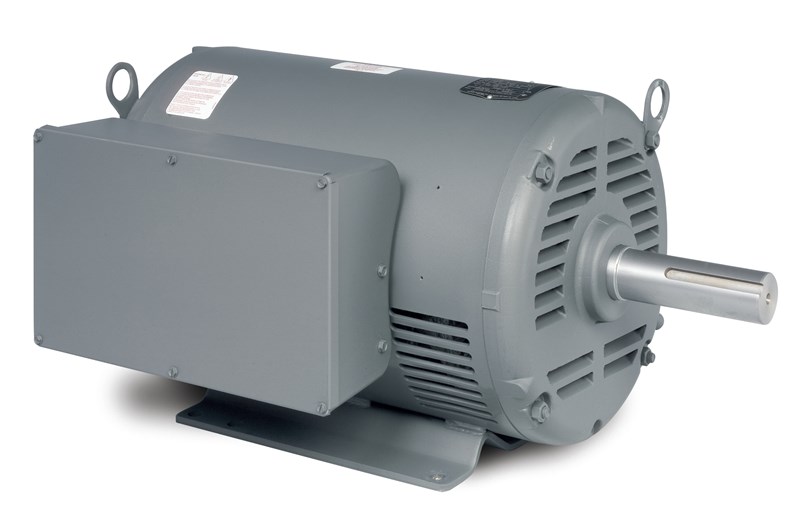

Baldor-Reliance GDL1615T BALGDL1615T
Baldor-Reliance GDL1615T AC Motor, 16 hp, 208/230 V AC, 60 Hz, 1 ph, 256TZ Frame, 1760 rpm, F1 Foot Mount, OPSB Enclosure
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALGDL1615T
- Alt Part Number: 39T017X522
- MPN: GDL1615T
- UPC: 781568121542
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-RelianceAC Motor, General Purpose AC Motor Application Type, Continuous Duty Motor, Farm Duty Motor Special Features, 16 hp, 208/230 V AC, 62/71 A, 60 Hz, 1 ph, 1760 rpm, 1 Speed, OPSB, 256TZ Frame, 1-5/8 in Shaft, Reversible, Service Factor: 1, Ball Bearing, 48.7 ft-lb, F1 Foot Mount, 40 deg C, Insulation Class: Class F, Steel, 24.19 in L
| Amperage Rating | : | 62/71 A |
| Application Type | : | General Purpose AC Motor |
| Bearing Type | : | Ball |
| Dimensions | : | 24.19 in L |
| Enclosure Type | : | OPSB |
| Frame | : | 256TZ |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 16 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | F1 Foot |
| Number of Speeds | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1-5/8 in |
| Special Features | : | Continuous Duty Motor, Farm Duty Motor |
| Speed | : | 1760 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 48.7 ft-lb |
| Voltage Rating | : | 208/230 V AC |
- Without drip cover
- Without auxiliary box
Specification Sheet
