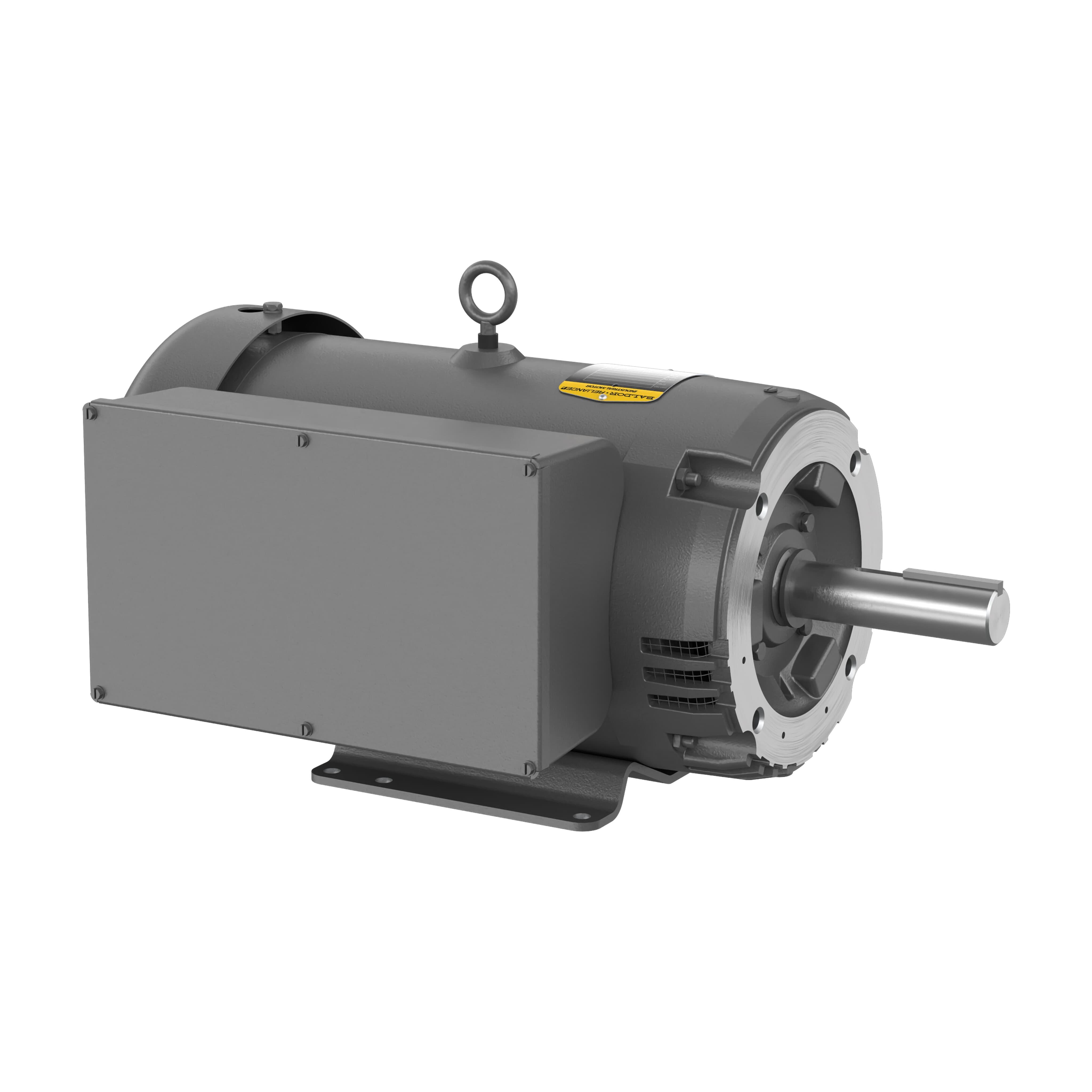

Baldor-Reliance GDL1610T BALGDL1610T
Baldor-Reliance GDL1610T AC Motor, 10 hp, 230 V AC, 60 Hz, 1 ph, 215TZ Frame, 1725 rpm, F1 Foot Mount, ODTF Enclosure
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALGDL1610T
- Alt Part Number: 37M329T875G1
- MPN: GDL1610T
- UPC: 781568121535
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-RelianceAC Motor, General Purpose AC Motor Application Type, Continuous Duty Motor, Farm Duty Motor Special Features, 10 hp, 230 V AC, 40 A, 60 Hz, 1 ph, 1725 rpm, 1 Speed, ODTF, 215TZ Frame, 1-3/8 in Shaft, Reversible, Service Factor: 1, Sealed Bearing, 29.8 ft-lb, F1 Foot Mount, 40 deg C, Insulation Class: Class F, Steel, 22.85 in L
| Amperage Rating | : | 40 A |
| Application Type | : | General Purpose AC Motor |
| Bearing Type | : | Sealed |
| Dimensions | : | 22.85 in L |
| Enclosure Type | : | ODTF |
| Frame | : | 215TZ |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 10 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | F1 Foot |
| Number of Speeds | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1-3/8 in |
| Special Features | : | Continuous Duty Motor, Farm Duty Motor |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 29.8 ft-lb |
| Voltage Rating | : | 230 V AC |
- Without drip cover
- Without auxiliary box
Specification Sheet
