Baldor-Reliance FDL3712TM BALFDL3712TM
  1. pin-int

Baldor-Reliance FDL3712TM BALFDL3712TM

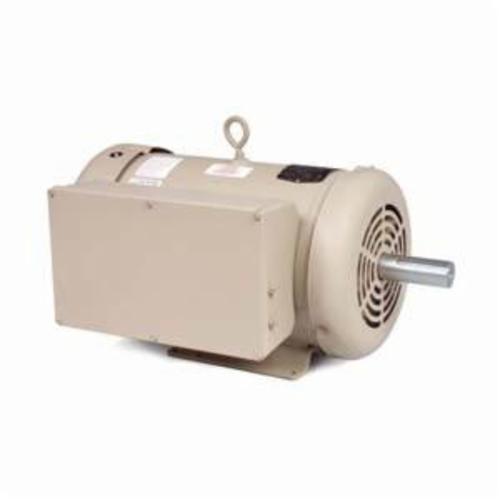

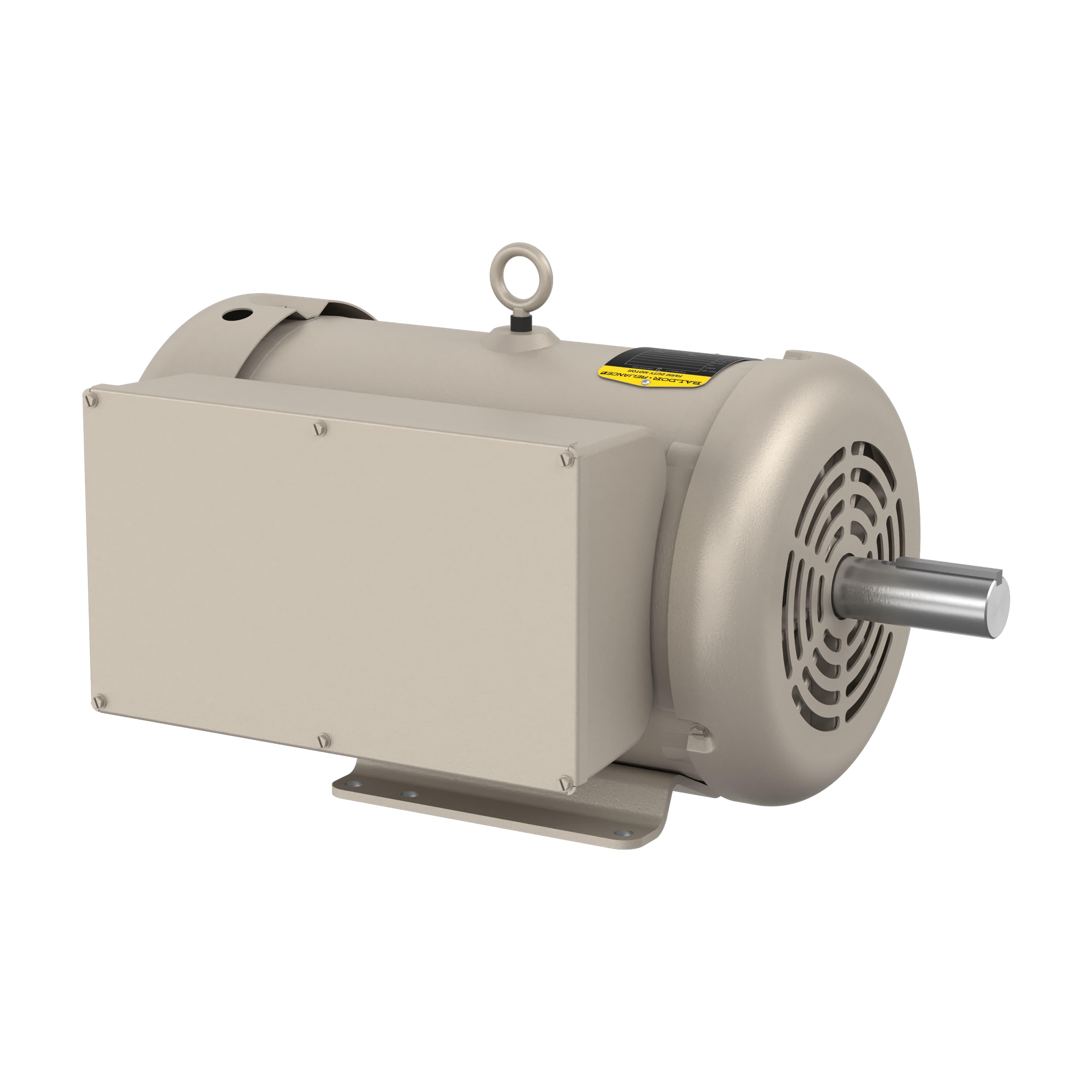

Baldor-Reliance FDL3712TM Continuous Duty Extra High Torque AC Motor, TEFC Enclosure, 10 hp, 230 V AC, 60 Hz, 1 ph Phase, 215T Frame, 1725 rpm Speed, F-1 Mount

  • Manufacturer: ABB
  • Brand Name: Baldor-Reliance
  • Part Number: BALFDL3712TM
  • Alt Part Number: 37N374T913G1
  • MPN: FDL3712TM
  • UPC: 781568296431
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.

Baldor-Reliance AC Motor, Continuous Duty Extra High Torque, Farm Duty Motors, General Purpose AC Motors, Fan & Blower Motors Application, 3750LC Motors, Direct On Line Starting Method Special Features, 10 hp, 230 V AC, 40 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, TEFC Enclosure, 215T Frame, 1-3/8 in Dia Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 92.7 ft-lb Torque, F-1 Mounting, 40 to 176 deg C, Insulation Class: Class F, Steel, 20.77 in L Dimensions

Amperage Rating      :      40 A
Application Type      :      Farm Duty Motors, General Purpose AC Motors, Fan & Blower Motors
Bearing Type      :      Sealed
Dimensions      :      20.77 in L
Enclosure Type      :      TEFC
Frame      :      215T
Frequency Rating      :      60 Hz
Horsepower      :      10 hp
Insulation Class      :      Class F
Material      :      Steel
Mounting Type      :      F-1
Number of Speeds      :      1
Phase      :      1
Rotation      :      Reversible
Service Factor      :      1
Shaft Size      :      1-3/8 in Dia
Special Features      :      3750LC Motors, Direct On Line Starting Method
Speed      :      1725 rpm
Temperature Rating      :      40 to 176 deg C
Torque Rating      :      92.7 ft-lb
Type      :      Continuous Duty Extra High Torque
  • Lubed for life double sealed ball bearings
  • Lip seal and V-ring slinger on DE for increased moisture resistance
  • Gasketed manual reset thermal overload protection
