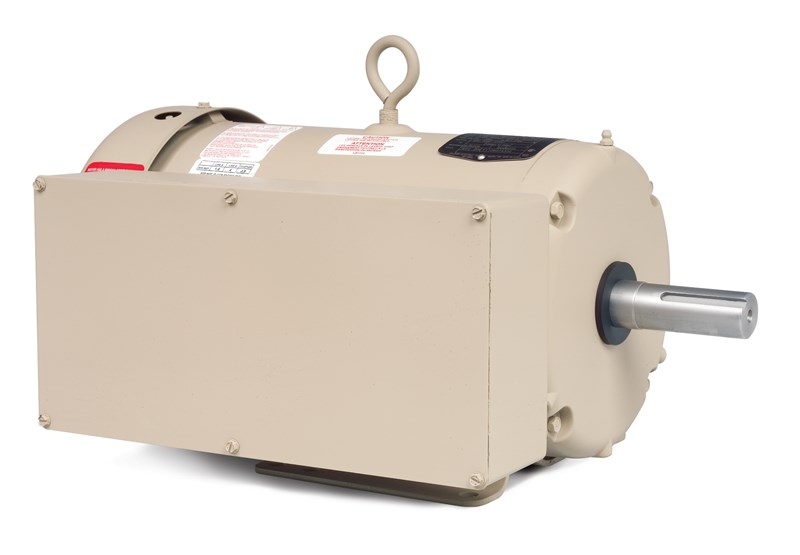

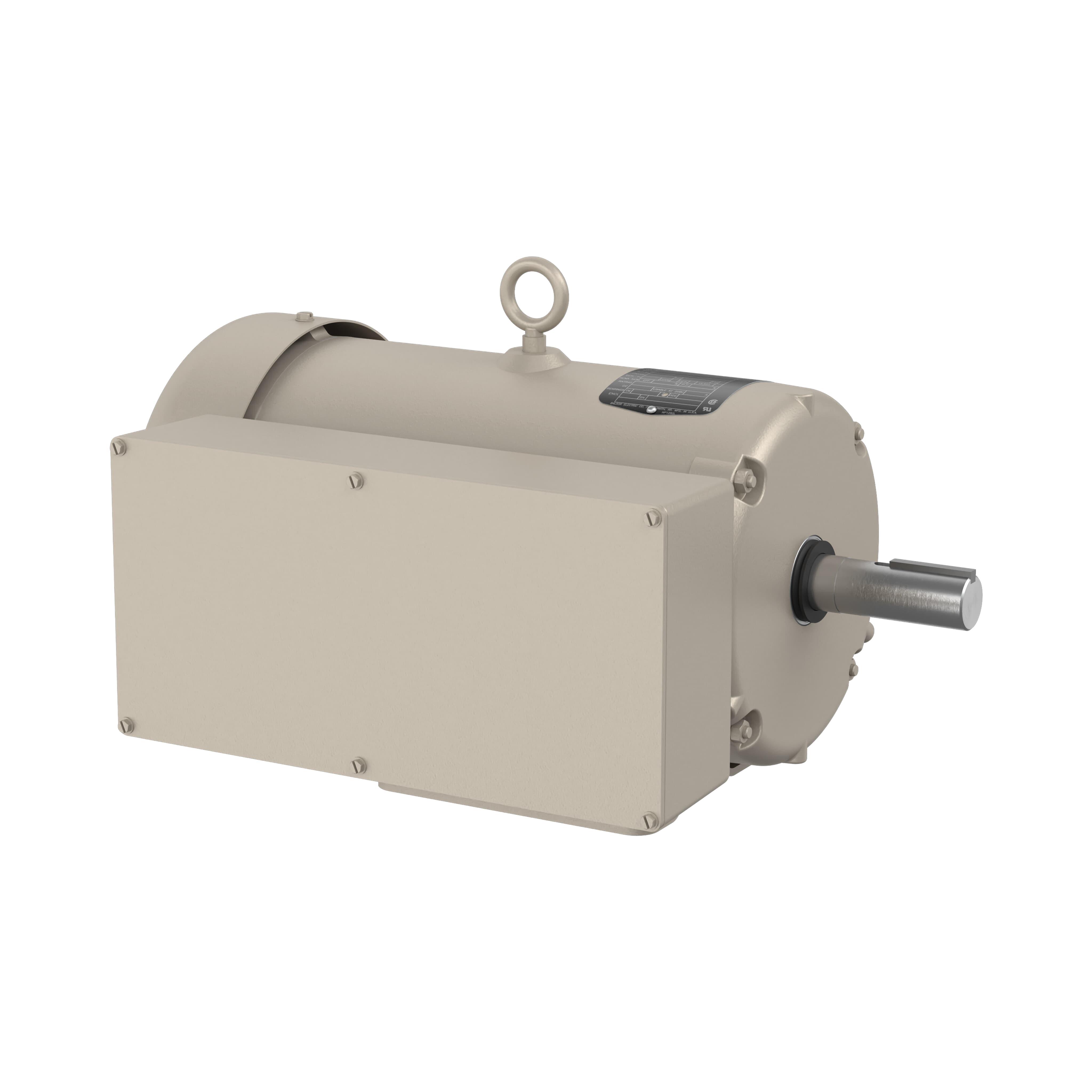

Baldor-Reliance FDL3612TM BALFDL3612TM
Baldor-Reliance FDL3612TM Type 3646LC Continuous Duty Premium Efficient AC Motor, Totally Enclosed Fan Cooled (TEFC) Enclosure, 5 hp, 230 VAC, 60 Hz, 1 ph Phase, 184T Frame, 1725 rpm Speed, Foot/Rigid Mount
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALFDL3612TM
- Alt Part Number: 36Q167W279G1
- MPN: FDL3612TM
- UPC: 781568121979
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.
Baldor-Reliance AC Motor, Type 3646LC Continuous Duty Premium Efficient, General Purpose AC Motors Application, 5 hp, 230 VAC, 23 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 184T Frame, 1-1/8 in Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 15 ft-lb Torque, Foot Rigid Mounting, 40 to 176 deg C, Insulation Class: Class F, Steel, 18.05 in L x 10.82 in H Dimensions
| Amperage Rating | : | 23 A |
| Application Type | : | General Purpose AC Motors |
| Bearing Type | : | Sealed |
| Dimensions | : | 18.05 in L x 10.82 in H |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
| Frame | : | 184T |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 5 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | Foot Rigid |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1-1/8 in |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 to 176 deg C |
| Torque Rating | : | 15 ft-lb |
| Type | : | Type 3646LC Continuous Duty Premium Efficient |
| Voltage Rating | : | 230 VAC |
- Lubed for life double sealed ball bearings
- Lip seal and V-ring slinger on DE for increased moisture resistance
- Gasketed manual reset thermal overload protection
Line Drawing
