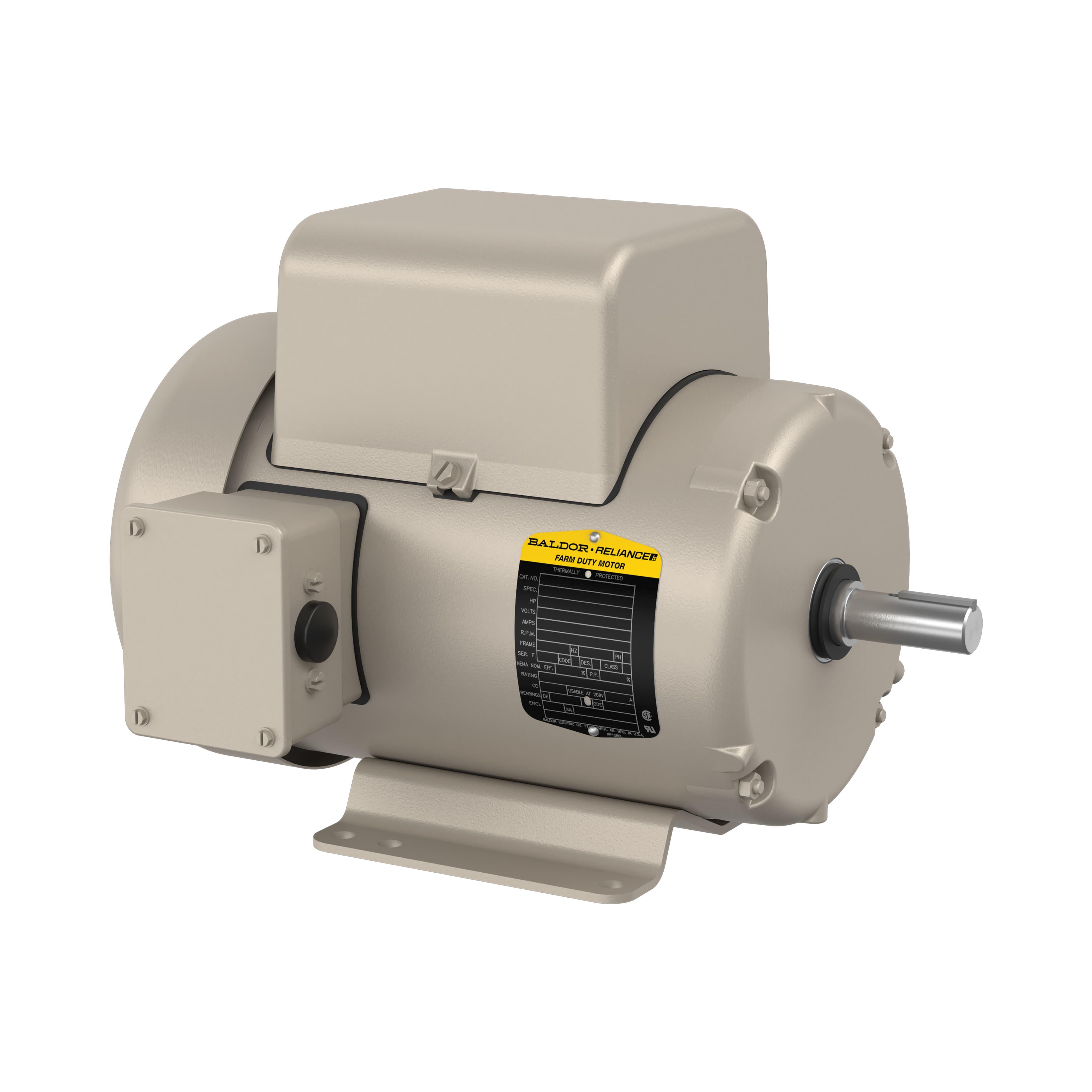

Baldor-Reliance FDL3611M BALFDL3611M
Baldor-Reliance FDL3611M Continuous Duty Premium Efficient Type 3634L AC Motor, TEFC Enclosure, 2 hp, 115/230 V AC, 60 Hz, 1 ph Phase, 184 Frame, 1725 rpm Speed, Foot Rigid Mounting
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALFDL3611M
- Alt Part Number: 36Q169X416G1
- MPN: FDL3611M
- UPC: 781568121924
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.
Baldor-Reliance, FDL3611M, AC Motor, Continuous Duty Premium Efficient Type 3634L, General Purpose AC Motors Application, 2 hp, 115/230 V AC, 24.8/12.4 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, TEFC Enclosure, 184 Frame, 7/8 in Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 6 ft-lb Torque, Foot Rigid Mounting, 40 deg C, Steel, 15.67 in L x 11.13 in H Dimensions
| Amperage Rating | : | 24.8/12.4 A |
| Application Type | : | General Purpose AC Motors |
| Bearing Type | : | Sealed |
| Dimensions | : | 15.67 in L x 11.13 in H |
| Enclosure Type | : | TEFC |
| Frame | : | 184 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 2 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | Foot Rigid |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 0.875 in |
| Special Features | : | Continuous Duty Motor |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 6 ft-lb |
| Type | : | Continuous Duty Premium Efficient Type 3634L |
- Lubed for life double sealed ball bearings
- Lip seal and V-ring slinger on DE for increased moisture resistance
- Gasketed manual reset thermal overload protection
- Heavy gauge steel frames
- Exxon polyrex EM grease
- All the features of our stock general purpose 1-phase NEMA T-frame motors but with NEMA U-frame mounting dimensions
- Without drip cover
- Without auxiliary box
