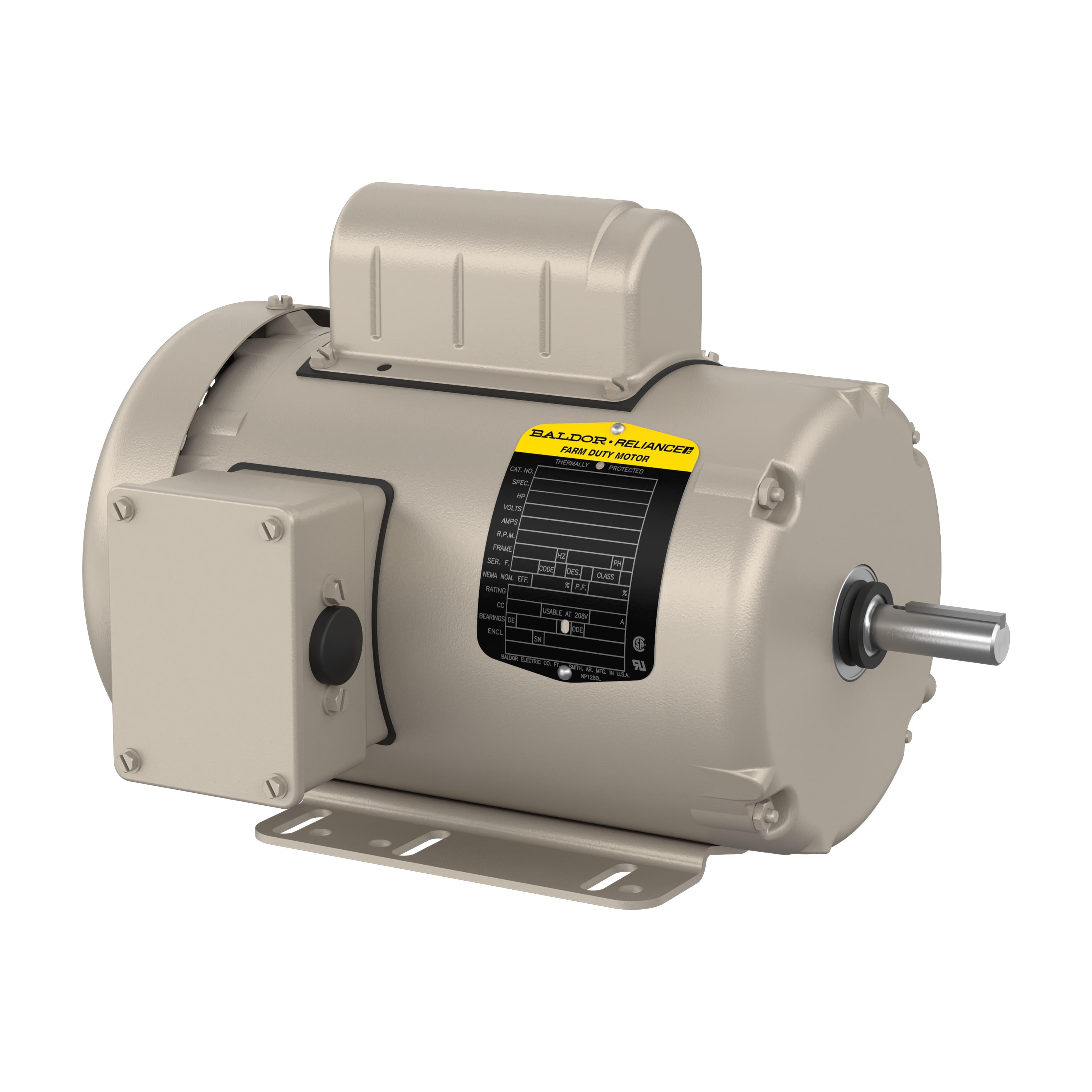

Baldor-Reliance FDL3510M BALFDL3510M
Baldor-Reliance FDL3510M Type 3524L Continuous Duty Premium Efficient AC Motor, TEFC Enclosure, 1 hp, 115/208/230 V AC, 60 Hz, 1 Phase, 56H Frame, 1725 rpm Speed, Foot Rigid Mounting
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALFDL3510M
- Alt Part Number: 35E2559S245G1|35E2559G385G1
- MPN: FDL3510M
- UPC: 781568121870
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at EVANSVILLE, IN
-
Check Availability at All Branches
- Sold As: 1/EA
-
Price:
Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.
Baldor-Reliance, FDL3510M, AC Motor, Type 3524L Continuous Duty Premium Efficient, General Purpose AC Motors Application, 1 hp, 115/208/230 V AC, 13/6.8/6.5 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, TEFC Enclosure, 56H Frame, 5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Sealed Bearing, 3 ft-lb Torque, Foot Rigid Mounting, 40 to 176 deg C, Steel, 12.93 in L x 9.05 in H Dimensions
| Amperage Rating | : | 13/6.8/6.5 A |
| Application Type | : | General Purpose AC Motors |
| Bearing Type | : | Sealed |
| Dimensions | : | 12.93 in L x 9.05 in H |
| Enclosure Type | : | TEFC |
| Frame | : | 56H |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | Foot Rigid |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 5/8 in |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 to 176 deg C |
| Torque Rating | : | 3 ft-lb |
| Type | : | Type 3524L Continuous Duty Premium Efficient |
| Voltage Rating | : | 115/208/230 V AC |
- Lubed for life double sealed ball bearings
- Lip seal and V-ring slinger on DE for increased moisture resistance
- Gasketed manual reset thermal overload protection
- Low noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design provides optimized torque profiles
- Robust heavy gauge steel design
