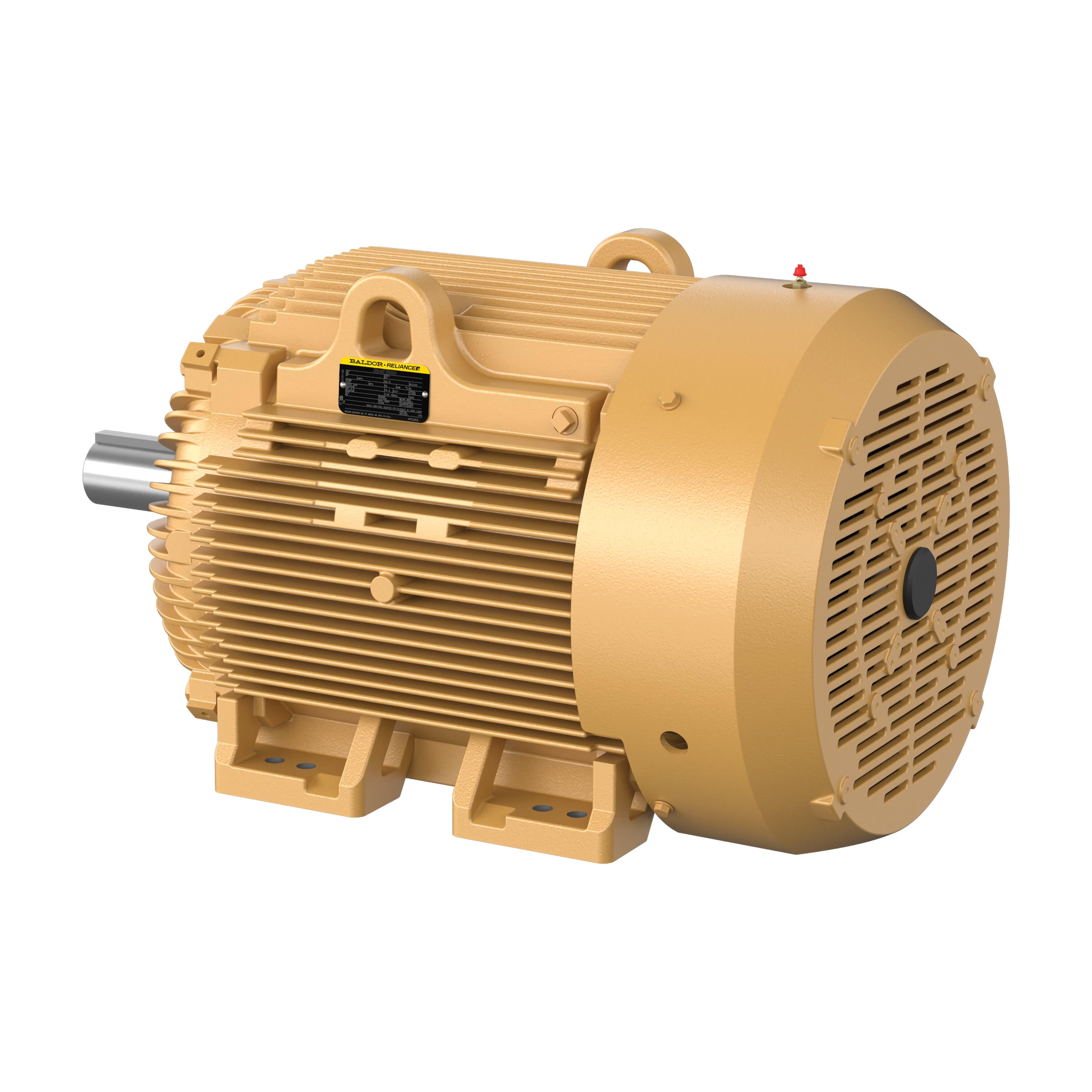

Baldor-Reliance EM4404T BALEM4404T

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Baldor-Reliance Super-E® AC Motor, Type A40064M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 75 hp, 230/460 VAC, 173.8/86.9 A, 60 Hz Frequency, 3 ph, 1185 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 405T Frame, 2-7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class B, Iron, 38.19 in L x 30.48 in W x 21.48 in H Dimensions

• 60 Hz designs with 50 Hz information on 2, 4, 6 pole 1 to 125 hp ratings
• Simple F1 to F2 conversion on cast iron frames
• Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e0d480a35d5f76e70c415b0974f4e1d9af22908ec346760681816114d540c9f8.pdf
