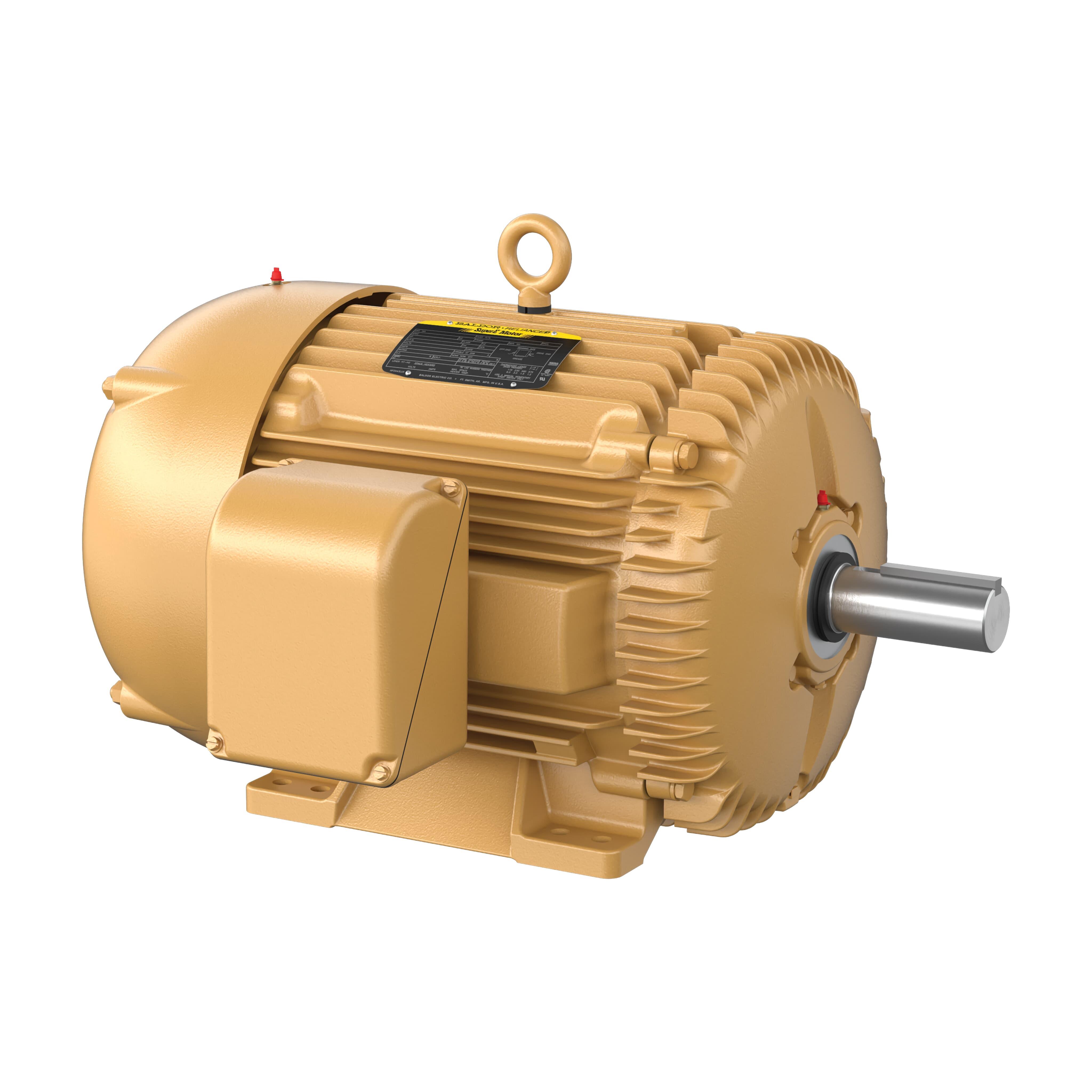

Baldor-Reliance EM4110T BALEM4110T
Baldor-Reliance Super-E® EM4110T Type 1254M Continuous Duty AC Motor, TEFC/NEMA B Enclosure, 40 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 324T Frame, 1775 rpm Speed, F1/Foot Rigid Mount
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALEM4110T
- Alt Part Number: 12H013Y276
- MPN: EM4110T
- UPC: 781568103388
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-Reliance Super-E® AC Motor, Type 1254M Continuous Duty, General Purpose AC Motors, Compressor Motors, Fan and Blower Motors Application, 40 hp, 208/230/460 VAC, 102/96/48 A, 60 Hz Frequency, 3 ph, 1775 rpm Speed, 1 Speed, TEFC/NEMA B Enclosure, 324T Frame, 2-1/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 118 ft-lb Torque, F1/Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Iron, 30.28 in L x 23.05 in W x 19.47 in H Dimensions
| Amperage Rating | : | 102/96/48 A |
| Application Type | : | General Purpose AC Motors, Compressor Motors, Fan and Blower Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 30.28 in L x 23.05 in W x 19.47 in H |
| Enclosure Type | : | TEFC/NEMA B |
| Frame | : | 324T |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 40 hp |
| Insulation Class | : | Class F |
| Material | : | Iron |
| Mounting Type | : | F1/Foot Rigid |
| Number of Speeds | : | 1 |
| Phase | : | 3 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 2-1/8 in |
| Speed | : | 1775 rpm |
| Temperature Rating | : | 40 to 76 deg C |
| Torque Rating | : | 118 ft-lb |
| Type | : | Type 1254M Continuous Duty |
| Voltage Rating | : | 208/230/460 VAC |
- 60 Hz designs with 50 Hz information on 2, 4, 6-pole 1 to 125 hp ratings
- Simple F1 to F2 conversion on cast iron frames
- Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
