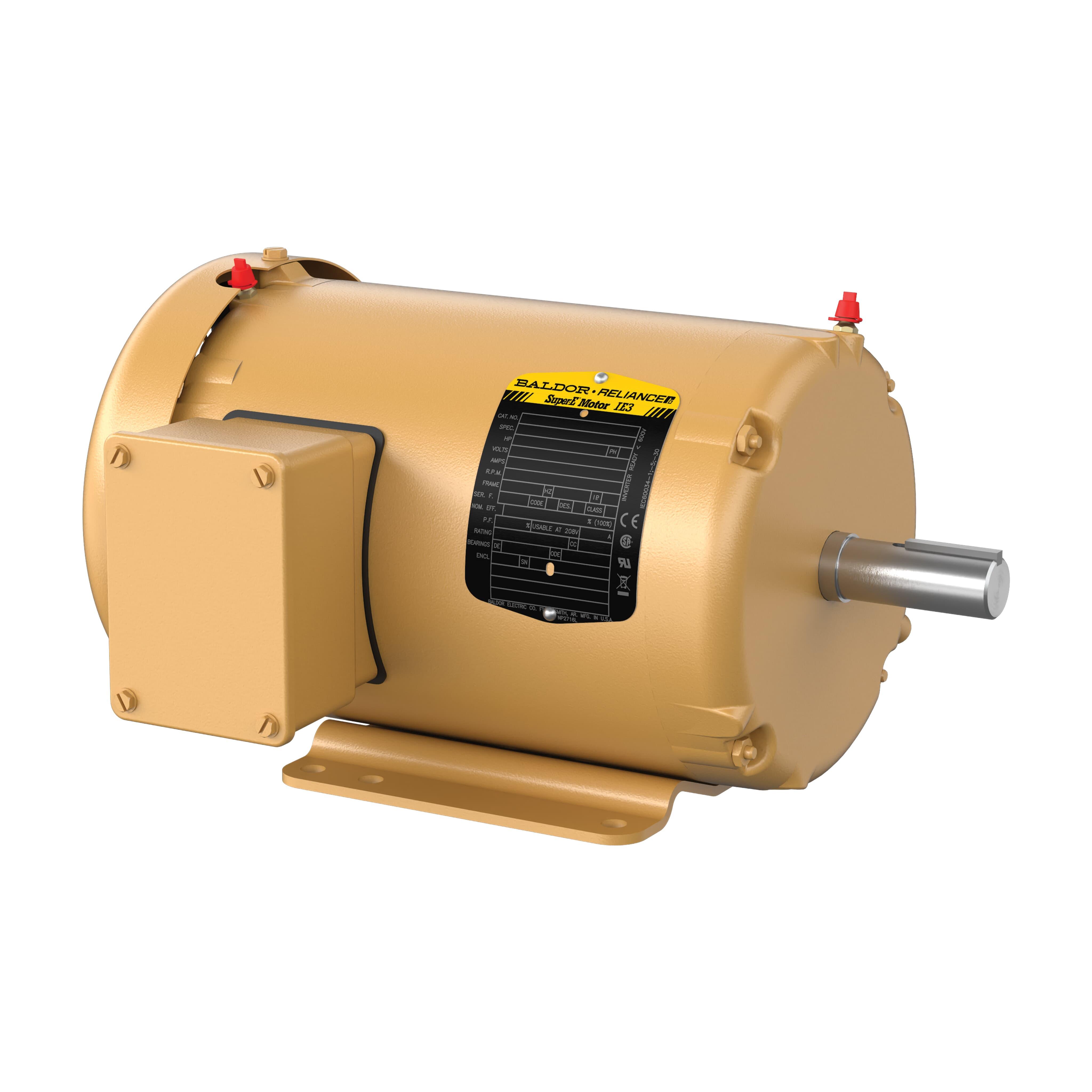

Baldor-Reliance EM3559T BALEM3559T
Baldor-Reliance EM3559T Type 3532M Continuous Duty AC Motor, TEFC Enclosure, 3 hp, 208/230/460 V AC, 60 Hz, 3 Phase, 145T Frame, 3450 rpm Speed, Foot Rigid Mount
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALEM3559T
- MPN: EM3559T
- UPC: 781568541623
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: EACH
-
Price:
Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.
Baldor-Reliance AC Motor, Type 3532M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 3 hp, 208/230/460 V AC, 7.9/7.2/3.6 A, 60 Hz Frequency, 3 ph, 3450 rpm Speed, 1 Speed, TEFC Enclosure, 145T Frame, 7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 18 ft-lb Torque, Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 14.17 in L x 10-1/4 in W Dimensions
| Amperage Rating | : | 7.9/7.2/3.6 A |
| Application Type | : | General Purpose AC Motors, Fan & Blower Motors, Compressor Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 14.17 in L x 10-1/4 in W |
| Enclosure Type | : | TEFC |
| Frame | : | 145T |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 3 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | Foot Rigid |
| Number of Speeds | : | 1 |
| Phase | : | 3 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 7/8 in |
| Speed | : | 3450 rpm |
| Temperature Rating | : | 40 to 76 deg C |
| Torque Rating | : | 18 ft-lb |
| Type | : | Type 3532M Continuous Duty |
| Voltage Rating | : | 208/230/460 VAC |
- 60 Hz designs with 50 Hz information on 2, 4, 6 pole 1 to 125 hp ratings
- Simple F1 to F2 conversion on cast iron frames
- Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
