Baldor-Reliance EGDM3313T BALEGDM3313T
  1. pin-int

Baldor-Reliance EGDM3313T BALEGDM3313T

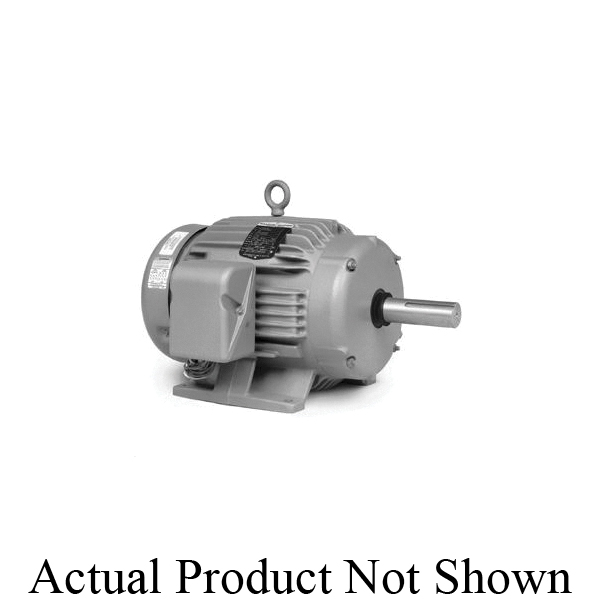

Baldor-Reliance EGDM3313T Continuous-Duty AC Motor, OPSB Enclosure, 10 hp, 230/460 VAC, 60 Hz, 3 Phase, 215TZ Frame, 1770 rpm Speed, Rigid Base Mount

  • Manufacturer: ABB Baldor-Reliance
  • Brand Name: Baldor-Reliance
  • Part Number: BALEGDM3313T
  • Alt Part Number: 37N688T853G1
  • MPN: EGDM3313T
  • UPC: 781568524541
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Baldor-Reliance AC Motor, Continuous-Duty, General Purpose AC Motors Application, Vector (Inverter) Duty Motors Special Features, 10 hp, 230/460 VAC, 25/12.5 A, 60 Hz Frequency, 3 ph, 1770 rpm Speed, 1 Speed, OPSB Enclosure, 215TZ Frame, 1-3/8 in Dia Shaft, Reversible Rotation, 1.15 Service Factor, Sealed Ball Bearing, Rigid Base Mounting, 40 deg C, Insulation Class: F, Steel, 18.45 in L Dimensions

Amperage Rating      :      25/12.5 A
Application Type      :      General Purpose AC Motors
Bearing Type      :      Sealed Ball
Dimensions      :      18.45 in L
Enclosure Type      :      OPSB
Frame      :      215TZ
Frequency Rating      :      60 Hz
Horsepower      :      10 hp
Insulation Class      :      F
Material      :      Steel
Mounting Type      :      Rigid Base
Number of Speeds      :      1
Phase      :      3
Rotation      :      Reversible
Service Factor      :      1.15
Shaft Size      :      1-3/8 in Dia
Special Features      :      Vector (Inverter) Duty Motors
Speed      :      1770 rpm
Temperature Rating      :      40 deg C
Type      :      Continuous-Duty
Voltage Rating      :      230/460 VAC
  • Shaft length 1 in longer than NEMA standard
  • Lubed for life double sealed ball bearings
  • Lip seal and V-Ring slinger on DE for increased moisture resistance
  • Screens on ODP to protect against trash and debris
  • Motors have high temperature moisture resistant grease
  • IP22 protection
  • Without auxiliary box, drip cover and heater
  • Direct on Line (DOL) starting method
  • B motor design
  • Polyrex™ EM bearing grease (-20 to 300 deg F)
  • 4-pole
  • 26 A at 208 VAC/25 A at 230 VAC/12.5 A at 460 VAC
