Baldor-Reliance CNEDM3546T BALCNEDM3546T
  1. pin-int

Baldor-Reliance CNEDM3546T BALCNEDM3546T

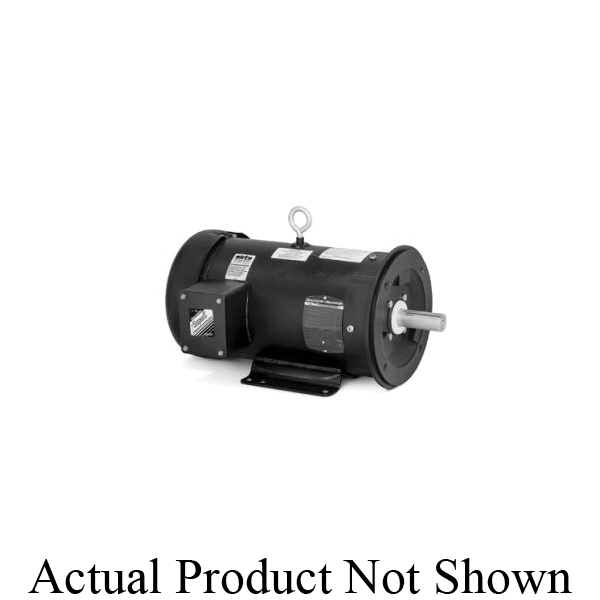

Baldor-Reliance Dirty Duty® Plus CNEDM3546T Continuous-Duty AC Motor, TENV Enclosure, 1 hp, 230/460 VAC, 60 Hz, 3 Phase, 143TC Frame, 1745 rpm Speed, C-Face/Rigid Base Mount

  • Manufacturer: ABB Baldor-Reliance
  • Brand Name: Baldor-Reliance
  • Part Number: BALCNEDM3546T
  • Alt Part Number: 35E4320Z818G1
  • MPN: CNEDM3546T
  • UPC: 781568835289
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Baldor-Reliance Dirty Duty motors are designed for use where additional protection is required against wet and wash down environments, corrosive environments and marine applications.

Baldor-Reliance Dirty Duty® Plus AC Motor, Continuous-Duty, Compressor Motors Application, Vector (Inverter) Duty Motors Special Features, 1 hp, 230/460 VAC, 2.9/1.5 A, 60 Hz Frequency, 3 ph, 1745 rpm Speed, 1 Speed, TENV Enclosure, 143TC Frame, 7/8 in Dia Shaft, Reversible Rotation, 1.15 Service Factor, Sealed Ball Bearing, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: F, Steel, 6:1 Constant Torque Speed, 12.12 in L Dimensions

Amperage Rating      :      2.9/1.5 A
Application Type      :      Compressor Motors
Bearing Type      :      Sealed Ball
Constant Torque Speed Range      :      6:1
Dimensions      :      12.12 in L
Enclosure Type      :      TENV
Frame      :      143TC
Frequency Rating      :      60 Hz
Horsepower      :      1 hp
Insulation Class      :      F
Material      :      Steel
Mounting Type      :      C-Face/Rigid Base
Number of Speeds      :      1
Phase      :      3
Rotation      :      Reversible
Service Factor      :      1.15
Shaft Size      :      7/8 in Dia
Special Features      :      Vector (Inverter) Duty Motors
Speed      :      1745 rpm
Temperature Rating      :      40 deg C
Type      :      Continuous-Duty
  • Two part epoxy paint system passed 2000+ hr salt fog test per ASTM B 117
  • Permanently lubricated, double sealed ball bearings
  • IP56 protection
  • Without auxiliary box, drip cover and heater
  • Direct on Line (DOL) starting method
  • B motor design
  • Polyrex™ EM bearing grease (-20 to 300 deg F)
  • 4-pole
  • 3 A at 208 VAC/2.9 A at 230 VAC/1.5 A at 460 VAC
  • pdfFull Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CNEDM3546T_Full_Engineering_Drawing.pdf
