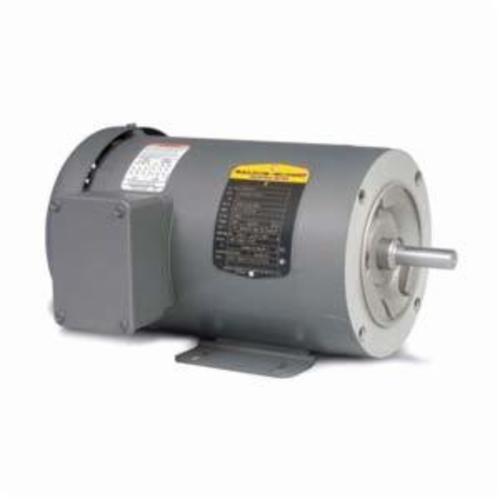

Baldor-Reliance CM3546 BALCM3546
Baldor-Reliance CM3546 Type 3426M Continuous Duty AC Motor, TEFC/NEMA B Enclosure, 1 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 56 Frame, 1725 rpm Speed, C-Face/Rigid Base Mount
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALCM3546
- MPN: CM3546
- UPC: 781568110188
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-Reliance AC Motor, Type 3426M Continuous Duty, General Purpose AC Motors, Compressor Motors, Fan and Blower Motors Application, Direct On Line Starting Method Special Features, 1 hp, 208/230/460 VAC, 1.7/3.4/3.7 A, 60 Hz Frequency, 3 ph, 1725 rpm S
| Amperage Rating | : | 1.7/3.4/3.7 A |
| Application Type | : | General Purpose AC Motors, Compressor Motors, Fan and Blower Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 12.23 in L |
| Enclosure Type | : | TEFC/NEMA B |
| Frame | : | 56 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | C-Face/Rigid Base |
| Number of Speeds | : | 1 |
| Phase | : | 3 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 5/8 in |
| Special Features | : | Direct On Line Starting Method |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 to 76 deg C |
| Torque Rating | : | 13.5 ft-lb |
| Type | : | Type 3426M Continuous Duty |
- Locked DE bearing to allow mounting in any configuration
- 60 Hz designs with 50 Hz information on 2, 4, 6-pole 1 to 125 hp ratings
- Suitable for inverter use per NEMA MG1 part 31.4.4.2
- Simple F1 to F2 conversion on cast iron frames
- Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
