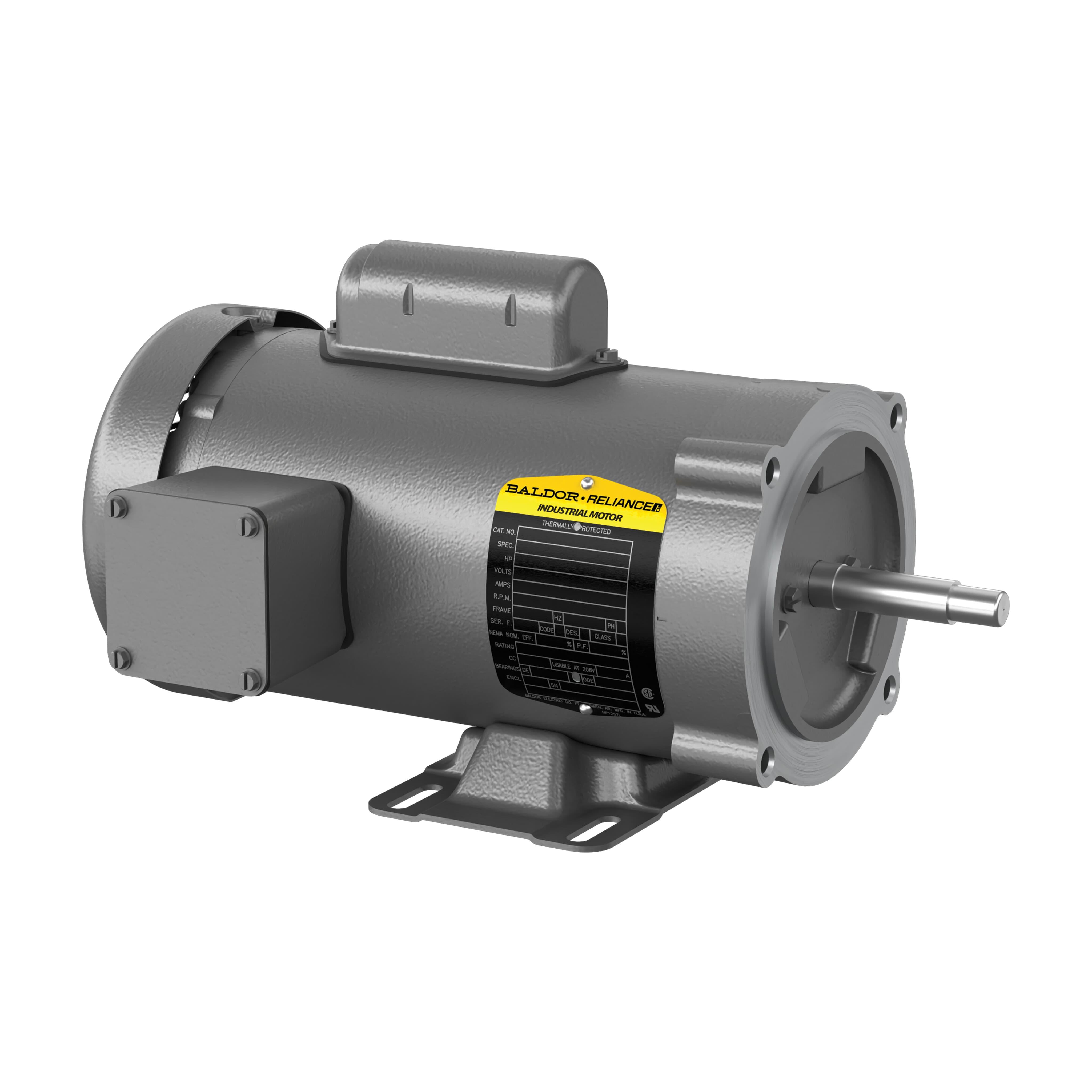

Baldor-Reliance CJL3504A BALCJL3504A
Baldor-Reliance CJL3504A AC Motor With Automatic Thermal Overload, TEFC Enclosure, 1/2 hp, 115/230 V AC, 60 Hz, 56J Frame, 1725 rpm Speed, F1 Foot Mount
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALCJL3504A
- Alt Part Number: 34L52-5593
- MPN: CJL3504A
- UPC: 781568112755
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-Reliance AC Motor, General Purpose AC Motor, Jet Pump Motor, Pool Motor Application, Continuous Duty Motor Special Features, 1/2 hp, 115/230 V AC, 3.7/7.4 A, 60 Hz Frequency, 1725 rpm Speed, 1 Speed, TEFC Enclosure, 56J Frame, 5/8 in Shaft, Fixed Opposite Standard Rotation, 1.25 Service Factor, Ball Bearing, 1.5 ft-lb Torque, F1 Foot Mounting, 40 deg C, Insulation Class: Class F, Steel, 12.47 in L Dimensions
| Amperage Rating | : | 3.7/7.4 A |
| Application Type | : | General Purpose AC Motor, Jet Pump Motor, Pool Motor |
| Bearing Type | : | Ball |
| Dimensions | : | 12.47 in L |
| Enclosure Type | : | TEFC |
| Frame | : | 56J |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/2 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | F1 Foot |
| Number of Speeds | : | 1 |
| Rotation | : | Fixed Opposite Standard |
| Service Factor | : | 1.25 |
| Shaft Size | : | 5/8 in |
| Special Features | : | Continuous Duty Motor |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 1.5 ft-lb |
| Voltage Rating | : | 115/230 V AC |
- Die cast aluminum endplates with machined steel bearing seat insert, drip cover and stainless steel shaft extension on 56J frames
- 0.5 hp at 60 Hz horsepower rating
- Without drip cover
- Without auxiliary box
