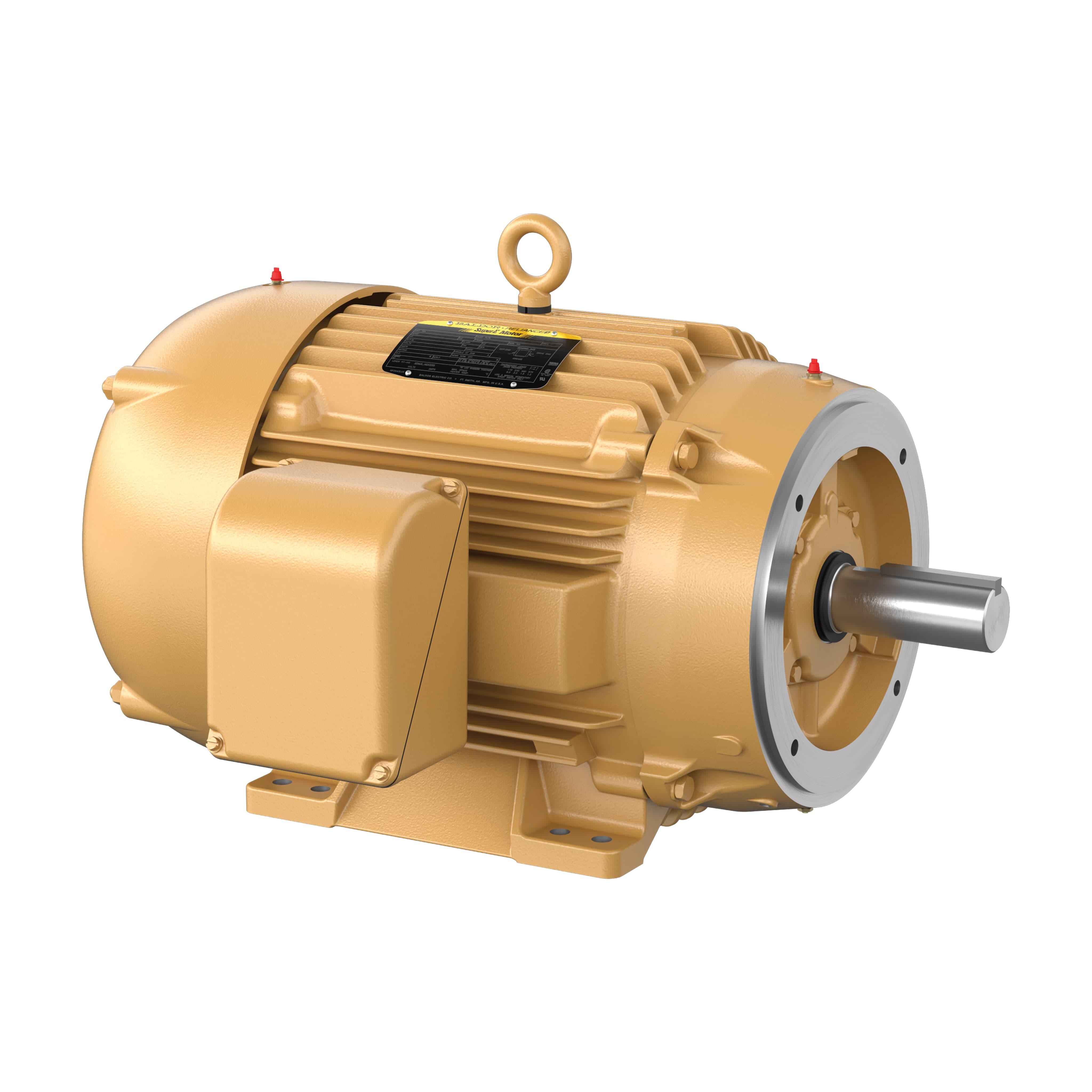

Baldor-Reliance CEM4115T BALCEM4115T
Baldor-Reliance CEM4115T Type 1272M Continuous Duty AC Motor, TEFC Enclosure, 50 hp, 208/230/460 V AC, 60 Hz, 3 Phase, 326TC Frame, 1775 rpm Speed, C-Face Foot Rigid Base Mount
- Manufacturer: ABB
- Brand Name: Baldor-Reliance
- Part Number: BALCEM4115T
- Alt Part Number: 12C052Z279G1
- MPN: CEM4115T
- UPC: 781568436660
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at EVANSVILLE, IN
-
Check Availability at All Branches
- Sold As: 1/EA
-
Price:
Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.
Baldor-Reliance AC Motor, Type 1272M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 50 hp, 208/230/460 V AC, 128/116/58 A, 60 Hz Frequency, 3 ph, 1775 rpm Speed, 1 Speed, TEFC Enclosure, 326TC Frame, 2-1/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 147 ft-lb Torque, C-Face Foot Rigid Base Mounting, 40 to 76 deg C, Insulation Class: Class F, Iron, 30.28 in L x 23.05 in W x 19.47 in H Dimensions
| Amperage Rating | : | 128/116/58 A |
| Application Type | : | General Purpose AC Motors, Fan & Blower Motors, Compressor Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 30.28 in L x 23.05 in W x 19.47 in H |
| Enclosure Type | : | TEFC |
| Frame | : | 326TC |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 50 hp |
| Insulation Class | : | Class F |
| Material | : | Iron |
| Mounting Type | : | C-Face Foot Rigid Base |
| Number of Speeds | : | 1 |
| Phase | : | 3 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 2-1/8 in |
| Speed | : | 1775 rpm |
| Temperature Rating | : | 40 to 76 deg C |
| Torque Rating | : | 147 ft-lb |
| Type | : | Type 1272M Continuous Duty |
| Voltage Rating | : | 208/230/460 V AC |
- Locked DE bearing to allow mounting in any configuration
- 60 Hz designs with 50 Hz information on 2, 4, 6-pole 1 to 125 hp ratings
- Suitable for inverter use per NEMA MG1 part 31.4.4.2
- Simple F1 to F2 conversion on cast iron frames
- Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
Line Drawing
