Baldor-Reliance BC160 BALBC160
  1. pin-int

Baldor-Reliance BC160 BALBC160

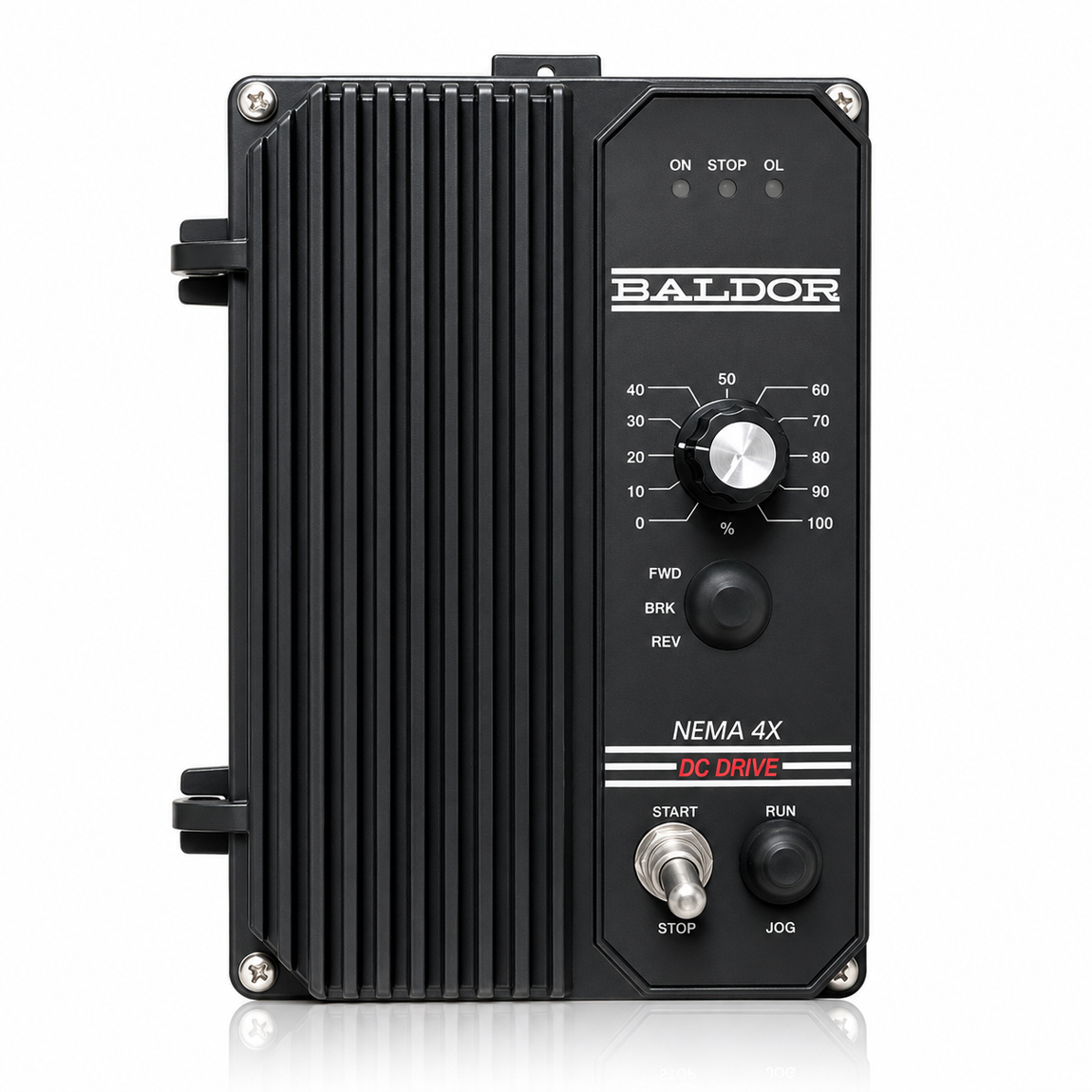

Baldor-Reliance BC160 dual-voltage SCR DC motor speed control for permanent-magnet and shunt-wound DC motors. 115/230 VAC input, 90/180 VDC armature output, 15 A maximum DC output, 1.5 HP at 115 VAC or 3 HP at 230 VAC, with NEMA 4X/IP65 washdown enclosure.

  • Manufacturer: ABB
  • Brand Name: Baldor-Reliance
  • Part Number: BALBC160
  • Alt Part Number: CN3000A46
  • MPN: BC160
  • UPC: 781568198735
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Baldor-Reliance BC160 adjustable-speed SCR DC motor control Dual-voltage 115/230 VAC, single-phase, 50/60 Hz input 90 VDC nominal armature output with 115 VAC input 180 VDC nominal armature output with 230 VAC input Maximum AC line current: 22 A Maximum DC output current: 15 A Rated 1.5 HP at 115 VAC / 3 HP at 230 VAC For permanent-magnet and shunt-wound DC motors NEMA 4X / IP65 washdown-duty enclosure Speed or torque control modes Armature or DC tachometer feedback 50:1 control speed range Adjustable acceleration and deceleration: 0.1–15 seconds Adjustable current limit: 0–180% Adjustable IR compensation Electronic overload/current-limit protection Surface-mounted enclosed DC control UPC: 781568198735

Baldor-Reliance BC160 is a dual-voltage adjustable-speed SCR DC motor control designed for constant-torque applications using permanent-magnet or shunt-wound DC motors. The control accepts 115 or 230 VAC single-phase, 50/60 Hz input and provides nominal 90 or 180 VDC armature output. Rated output is 1.5 HP at 115 VAC or 3 HP at 230 VAC, with a maximum DC output current of 15 A. The BC160 uses a NEMA 4X / IP65 enclosure designed for washdown and wet or dirty industrial environments. Its die-cast aluminum housing is acrylic coated for corrosion resistance, with sealed switches and a sealed speed potentiometer. Adjustable functions include acceleration, deceleration, current limit, IR compensation, minimum speed and maximum speed. The controller can operate in speed or torque control mode and supports armature or DC tachometer feedback. Electronic current limiting and overload protection help protect the connected motor, while the 50:1 control speed range provides adjustable-speed operation for suitable DC motor applications.

Amperage Rating      :      22 A
Depth      :      5.866 in
Enclosure Type      :      NEMA 4X/IP65
Height      :      5 in
Horsepower      :      3 hp
Mounting Type      :      Flat Surface
Type      :      Adjustable Speed
Voltage Rating      :      115/230 VAC / 90/180 VDC
Width      :      9.488 in
  • Baldor-Reliance BC160 adjustable-speed SCR DC motor control
  • Dual-voltage 115/230 VAC, single-phase, 50/60 Hz input
  • 90 VDC nominal armature output with 115 VAC input
  • 180 VDC nominal armature output with 230 VAC input
  • Maximum AC line current: 22 A
  • Maximum DC output current: 15 A
  • Rated 1.5 HP at 115 VAC / 3 HP at 230 VAC
  • For permanent-magnet and shunt-wound DC motors
  • NEMA 4X / IP65 washdown-duty enclosure
  • Speed or torque control modes
  • Armature or DC tachometer feedback
  • 50:1 control speed range
  • Adjustable acceleration and deceleration: 0.1–15 seconds
  • Adjustable current limit: 0–180%
  • Adjustable IR compensation
  • Electronic overload/current-limit protection
  • Surface-mounted enclosed DC control
  • UPC: 781568198735
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_3AUA0000013872_Catalog.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_BC160_Installation_Sheet.pdf
