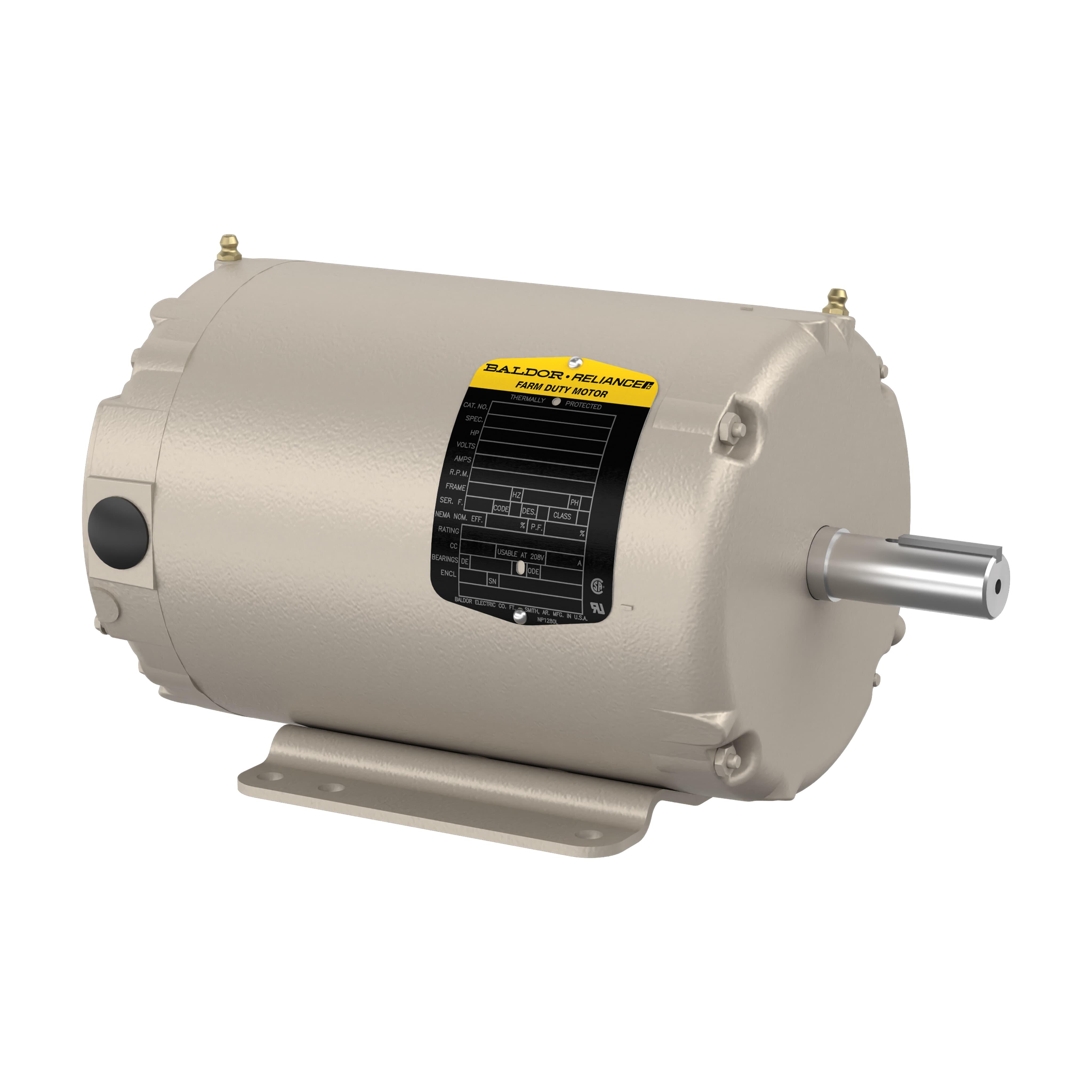

Baldor-Reliance AFM3532 BALAFM3532

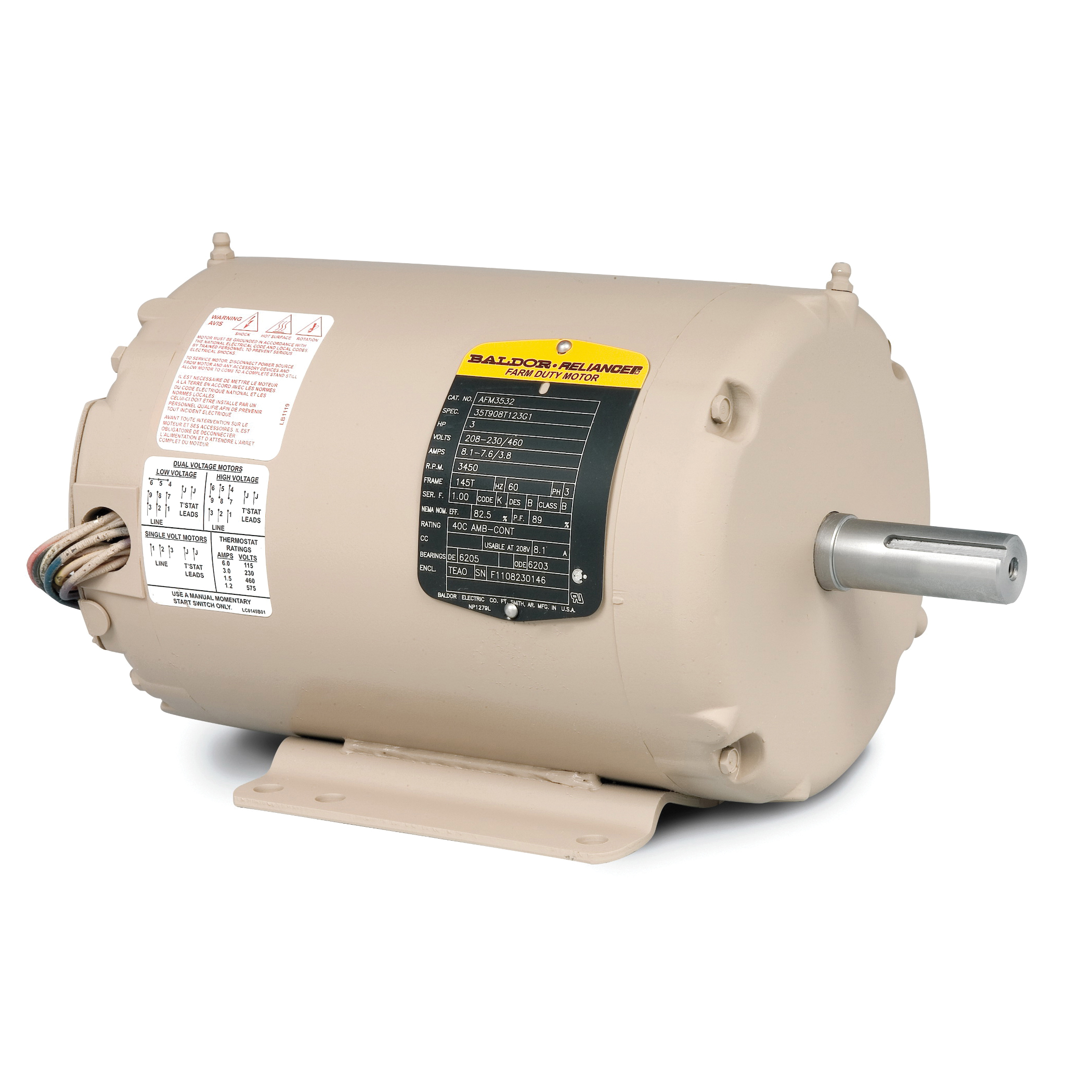

Baldor-Reliance AFM3532 Type 3528M Continuous Duty Direct On Line Aeration Fan AC Motor, Totally Enclosed Air Over Enclosure, 3 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 145T Frame, 3450 rpm Speed, Foot/Rigid Mount

  • Manufacturer: ABB Baldor-Reliance
  • Brand Name: Baldor-Reliance
  • Part Number: BALAFM3532
  • MPN: AFM3532
  • UPC: 781568121382
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.

Baldor-Reliance Aeration Fan AC Motor, Type 3528M Continuous Duty Direct On Line, General Purpose AC Motors Application, 3 hp, 208/230/460 VAC, 8.1/7.6/3.8 A, 60 Hz Frequency, 3 ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Air Over Enclosure, 145T Frame, 7/8 in Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 19.7 ft-lb Torque, Foot Rigid Mounting, 40 to 176 deg C, Insulation Class: Class B, Steel, 12.74 in L x 6.81 in H Dimensions

Amperage Rating      :      8.1/7.6/3.8 A
Application Type      :      General Purpose AC Motors
Bearing Type      :      Ball
Dimensions      :      12.74 in L x 6.81 in H
Enclosure Type      :      Totally Enclosed Air Over
Frame      :      145T
Frequency Rating      :      60 Hz
Horsepower      :      3 hp
Insulation Class      :      Class B
Material      :      Steel
Mounting Type      :      Foot Rigid
Number of Speeds      :      1
Phase      :      3
Rotation      :      Reversible
Service Factor      :      1
Shaft Size      :      7/8 in
Speed      :      3450 rpm
Temperature Rating      :      40 to 176 deg C
Torque Rating      :      19.7 ft-lb
Type      :      Type 3528M Continuous Duty Direct On Line
Voltage Rating      :      208/230/460 VAC
  • 1/4-20 tapped and keyed shaft
  • Terminal panel for ease of connectivity
  • Automatic thermal overload protection
  • Normally closed winding thermostats to protect against overheating
  • Lubed for life double shielded ball bearings
