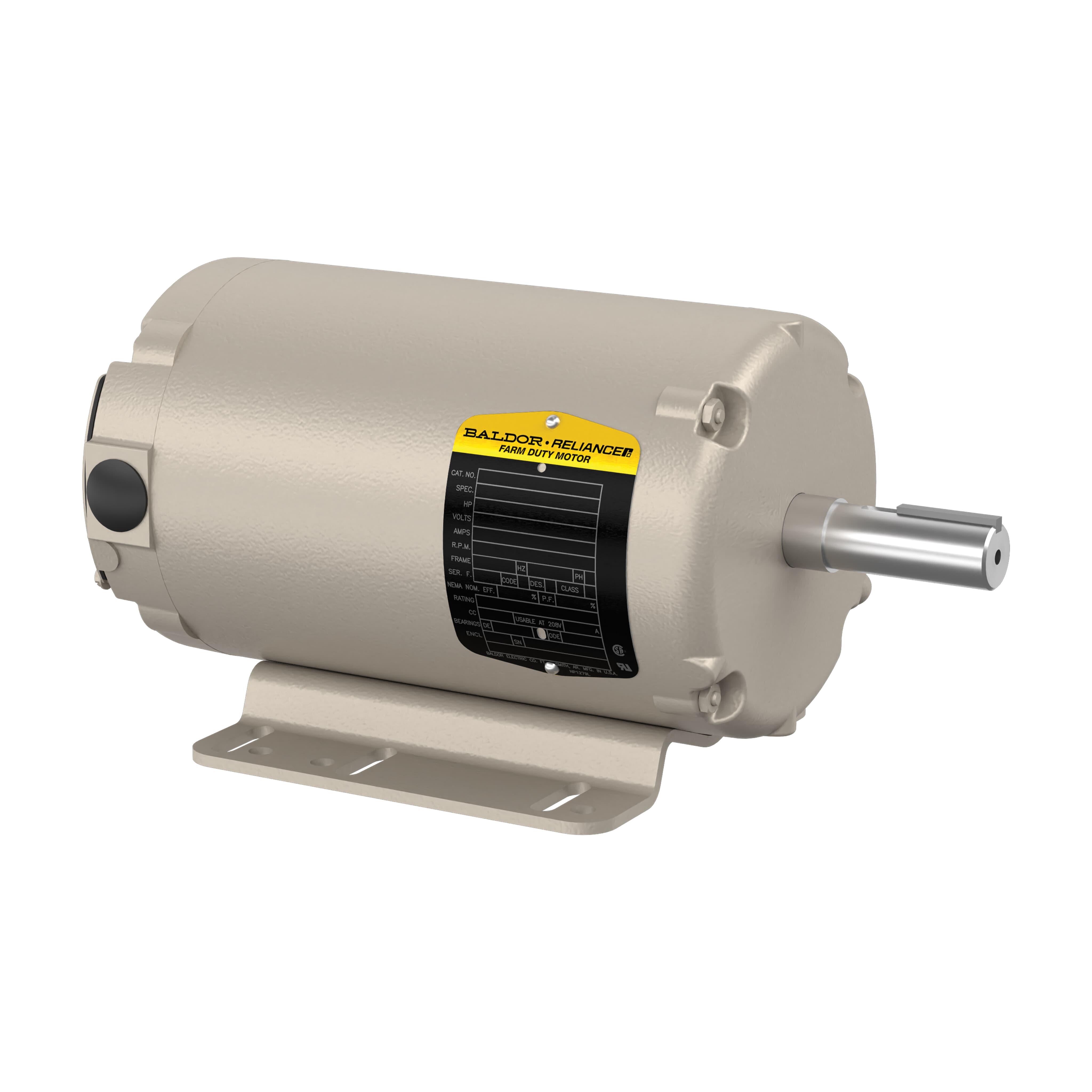

Baldor-Reliance AFM3530 BALAFM3530
Baldor-Reliance AFM3530 AC Motor, 1-1/2 hp, 208/230/460 VAC, 60 Hz, 3 ph, 143TZ Frame, 3450 rpm, F1 Foot Mount, Totally Enclosed Air Over Enclosure
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALAFM3530
- Alt Part Number: 34K954-0283G1
- MPN: AFM3530
- UPC: 781568121368
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-RelianceAC Motor, General Purpose AC Motor Application Type, Continuous Duty Motor, Farm Duty Motor Special Features, 1-1/2 hp, 208/230/460 VAC, 2.3/4.6/4.9 A, 60 Hz, 3 ph Phase, 3450 rpm, 1 Speed, Totally Enclosed Air Over, 143TZ Frame, 7/8 in Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 2.25 ft-lb, F1 Foot Mount, 40 deg C, Insulation Class: Class F, Steel, 12.45 in L
| Amperage Rating | : | 2.3/4.6/4.9 A |
| Application Type | : | General Purpose AC Motor |
| Bearing Type | : | Ball |
| Dimensions | : | 12.45 in L |
| Enclosure Type | : | Totally Enclosed Air Over |
| Frame | : | 143TZ |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1-1/2 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | F1 Foot |
| Number of Speeds | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 7/8 in |
| Special Features | : | Continuous Duty Motor, Farm Duty Motor |
| Speed | : | 3450 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 2.25 ft-lb |
| Voltage Rating | : | 208/230/460 VAC |
- Without drip cover
- Without auxiliary box
Warranty Information
