Baldor-Reliance AFL3521A BALAFL3525A

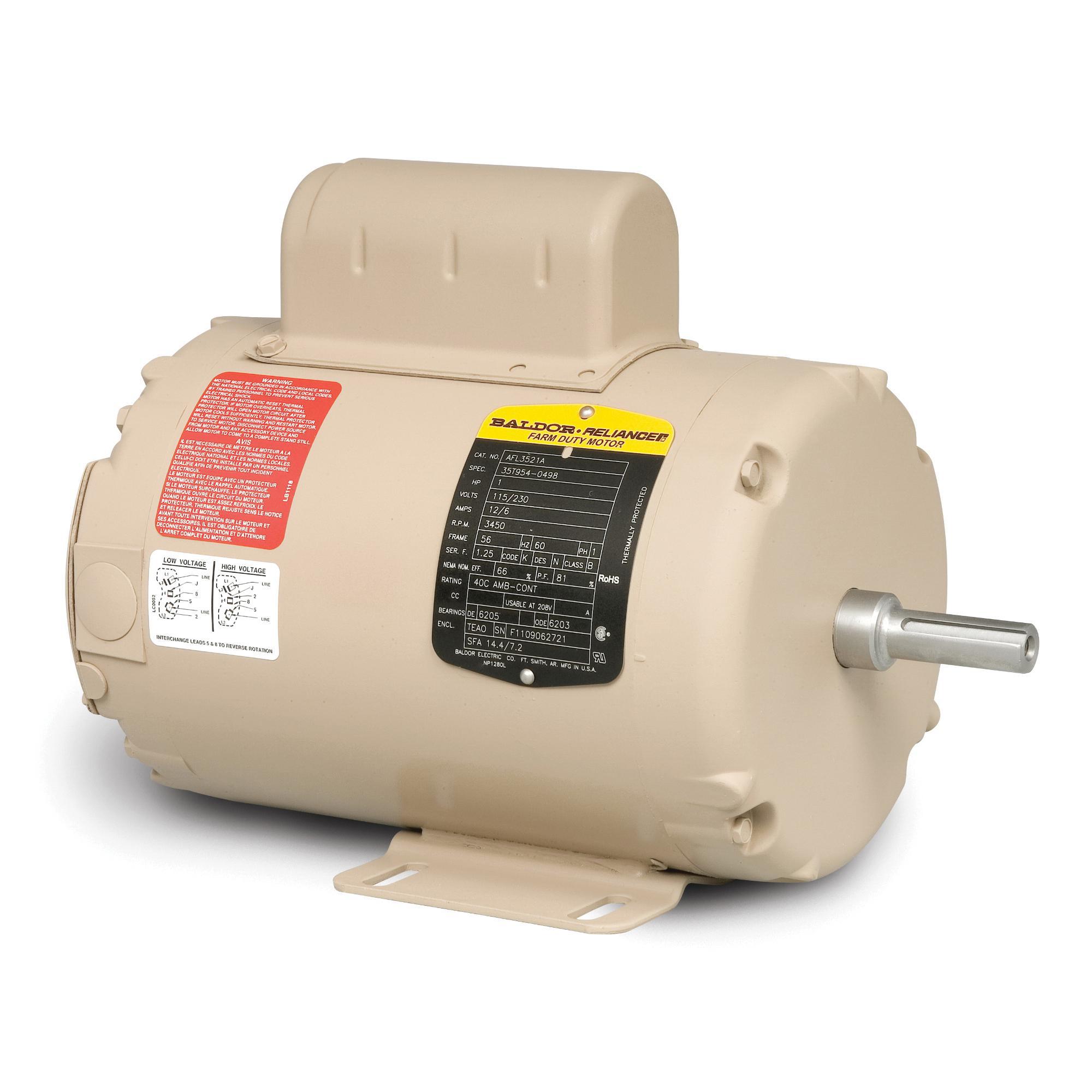

Baldor-Reliance AFL3521A Type 3524L Continuous Duty Direct On Line Aeration Fan AC Motor, Totally Enclosed Air Over Enclosure, 1 hp, 115/230 VAC, 60 Hz, 1 Phase, 56 Frame, 3450 rpm Speed, Foot Rigid Mounting
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALAFL3525A
- MPN: AFL3521A
- UPC: 781568121290
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Baldor offers one of the most complete lines of farm duty motors available on the market. As the largest motor manufacturer in North America, Baldor has led the market for farm duty motors for years. We have the motor for just about any agricultural applications you may have.
Baldor-Reliance, AFL3521A, Aeration Fan AC Motor, Type 3524L Continuous Duty Direct On Line, Continuous Duty Motor, Farm Duty Motor Special Features, 1 hp, 115/230 VAC, 12/6 A, 60 Hz Frequency, 1 ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Air Over Enclosure, 56 Frame, 5/8 in Shaft, Connected Standard/Reversible Rotation, 1.25 Service Factor, 1.5 ft-lb Torque, Foot Rigid Mounting, 40 to 176 deg C, Insulation Class: Class B, Steel, 12.68 in L x 8.99 in H Dimensions
| Amperage Rating | : | 12/6 A |
| Application Type | : | General Purpose AC Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 12.68 in L x 8.99 in H |
| Enclosure Type | : | Totally Enclosed Air Over |
| Frame | : | 56 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1 hp |
| Insulation Class | : | Class B |
| Material | : | Steel |
| Mounting Type | : | Foot Rigid |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Connected Standard/Reversible |
| Service Factor | : | 1.25 |
| Shaft Size | : | 5/8 in |
| Special Features | : | Continuous Duty Motor, Farm Duty Motor |
| Speed | : | 3450 rpm |
| Temperature Rating | : | 40 to 176 deg C |
| Torque Rating | : | 1.5 ft-lb |
| Type | : | Type 3524L Continuous Duty Direct On Line |
- 1/4-20 tapped and keyed shaft
- Terminal panel for ease of connectivity
- Automatic thermal overload protection
- Normally closed winding thermostats to protect against overheating
- Lubed for life double shielded ball bearings
- Without drip cover
- Without auxiliary box
Warranty Information
