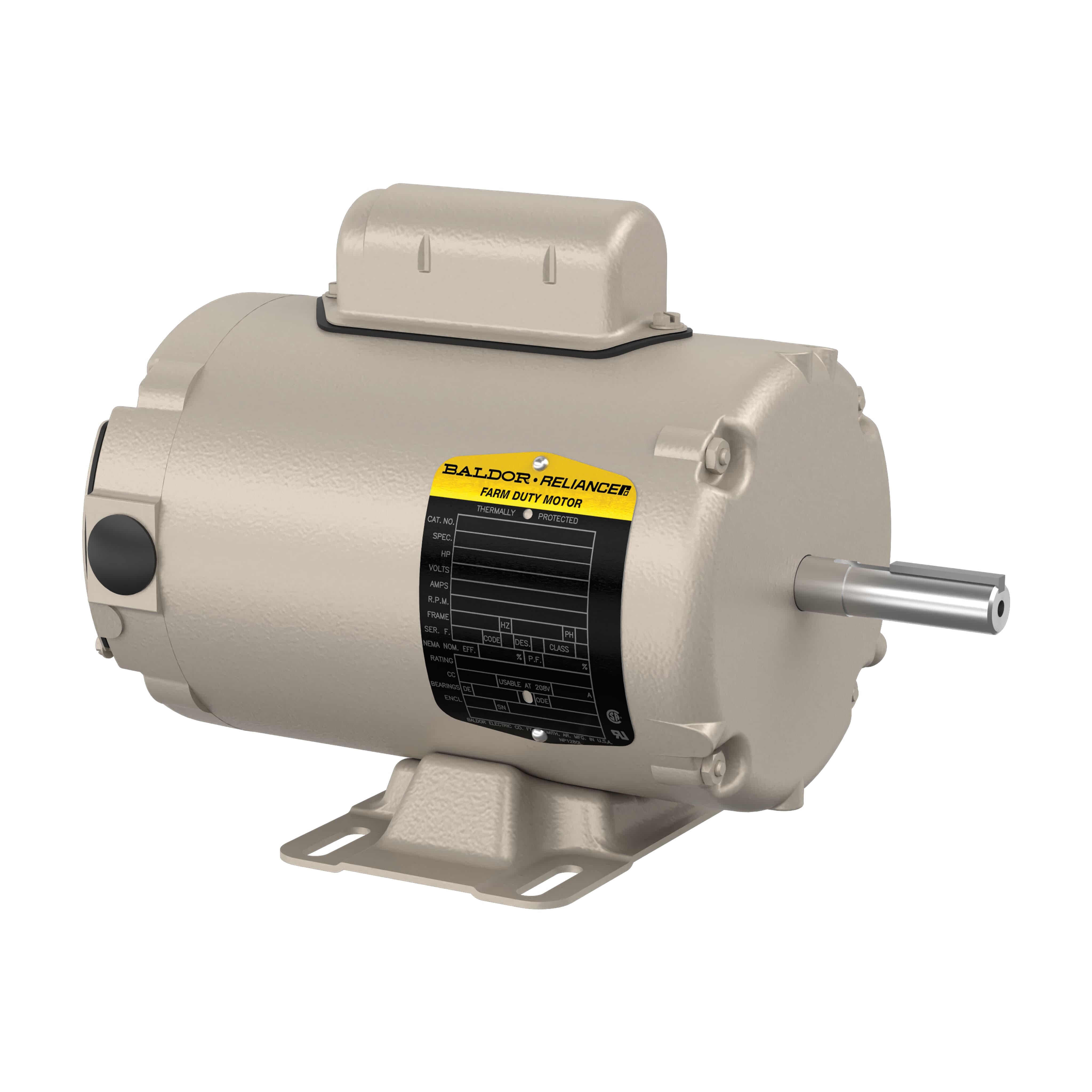

Baldor-Reliance AFL3520A BALAFL3520A
Baldor-Reliance AFL3520A AC Motor, TENV Enclosure, 3/4 hp, 115/230 VAC, 60 Hz, 56Z Frame, 3450 rpm Speed, F1 Foot Mount
- Manufacturer: ABB Baldor-Reliance
- Brand Name: Baldor-Reliance
- Part Number: BALAFL3520A
- Alt Part Number: 34K48-656
- MPN: AFL3520A
- UPC: 781568121283
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Baldor-RelianceAC Motor, General Purpose AC Motor Application Type, Continuous Duty Motor, Farm Duty Motor Special Features, 3/4 hp, 115/230 VAC, 5.5/11 A, 60 Hz, 1 ph Phase, 3450 rpm, 1 Speed, TENV, 56Z Frame, 5/8 in Shaft, Connected Standard/Reversible, Service Factor: 1, Sealed Ball Bearing, 1.2 ft-lb, F1 Foot Mount, 40 deg C, Insulation Class: Class F, Steel, 11.59 in L
| Amperage Rating | : | 5.5/11 A |
| Application Type | : | General Purpose AC Motor |
| Bearing Type | : | Sealed Ball |
| Dimensions | : | 11.59 in L |
| Enclosure Type | : | TENV |
| Frame | : | 56Z |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 3/4 hp |
| Insulation Class | : | Class F |
| Material | : | Steel |
| Mounting Type | : | F1 Foot |
| Number of Speeds | : | 1 |
| Rotation | : | Connected Standard/Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 5/8 in |
| Special Features | : | Continuous Duty Motor, Farm Duty Motor |
| Speed | : | 3450 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 1.2 ft-lb |
| Voltage Rating | : | 115/230 VAC |
- Without drip cover
- Without auxiliary box
Warranty Information
