American Cylinder 1062DNS-4.00-5 ACY1062DNS-4.00-5

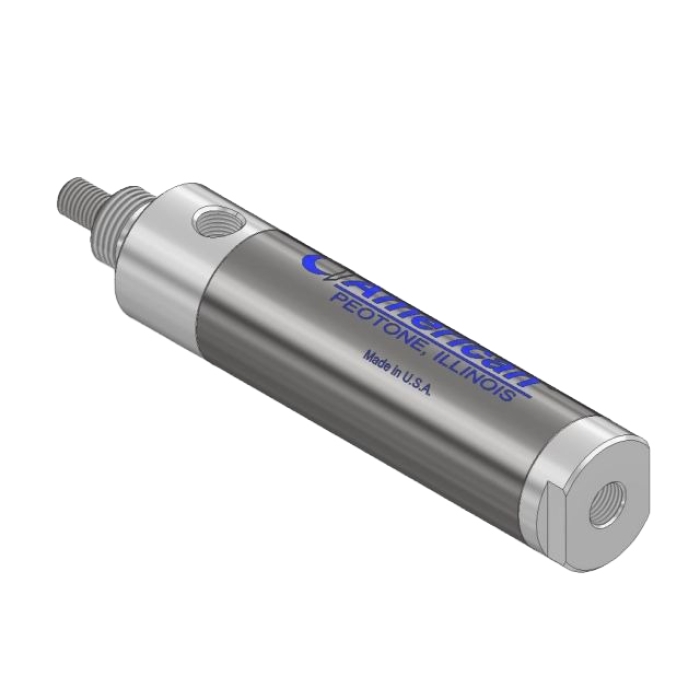

Stainless Steel air cylinder with 1-1/16" bore and 4" stroke for reliable pneumatic motion. Nose Mount design for straightforward installation.
- Manufacturer: American Cylinder Co., Inc.
- Brand Name: American Cylinder
- Part Number: ACY1062DNS-4.00-5
- MPN: 1062DNS-4.00-5
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
-
Price:
1062DNS-X.XX (1-1/16" Bore)1 1/16" CYLINDER;DBL ACTING NOSE MNT,4"
Built for dependable pneumatic actuation, the American Cylinder 1062DNS-4.00-5 is a stainless steel air cylinder sized at 1-1/16" bore x 4" stroke.It is a double acting cylinder in a nose mount configuration, ideal for automation equipment, fixtures, and industrial air systems.For complete dimensional and port/thread details, reference the manufacturer specification for this part number.Estimated weight: ~1.8 lb.
| Cylinder Action | : | Double Acting |
| Cylinder Bore Size | : | 1-1/16 in |
| Finish | : | Stainless Steel |
| Material | : | Stainless Steel |
| Mounting Type | : | Nose Mount |
| Port Size | : | 1/8 NPT |
| Rod Thread Size | : | 5/16-24 UNF |
| Series | : | Stainless Steel |
| Stroke Length | : | 4 in |
| Type | : | Pneumatic Air Cylinder |
- Bore: 1-1/16"
- Stroke: 4"
- Action: Double Acting
- Mount: Nose Mount
- Manufacturer: American Cylinder
