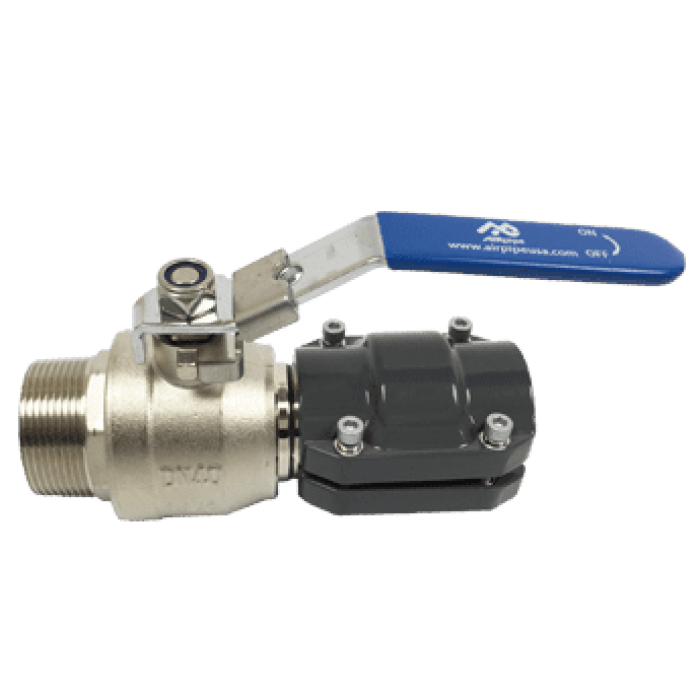

AIRpipe USA 1352 is a male NPT quick-connect locking ball valve designed for flow control and isolation in AIRpipe compressed-air systems. The locking ball-valve design provides a convenient local shutoff point for isolating equipment or sections of the air system during operation or maintenance. Key specifications: Nominal Size: 3/4 to 3/4 in; Connection Type: Quick Connect / Male NPT; Pressure Rating: 300 psi; Temperature Range: -4°F to 176°F; Media: Compressed Air / Vacuum / Inert Gases.
| Connection Type | : | Quick Connect / Male NPT |
| Media | : | Compressed Air / Vacuum / Inert Gases |
| Nominal Size | : | 3/4 to 3/4 in |
| Pressure Rating | : | 300 psi |
| Temperature Rating | : | -4 to +176 deg F |
| Type | : | Male Threaded Quick-Connect Locking Ball Valve |
- Provides local shutoff and flow isolation in AIRpipe piping
- Locking ball-valve design supports secure isolation during service or equipment changes
- Nominal Size: 3/4 to 3/4 in
- Connection Type: Quick Connect / Male NPT
- Operating limits: Pressure Rating: 300 psi; Temperature Rating: -4 to +176 °F
- Media: Compressed Air / Vacuum / Inert Gases
