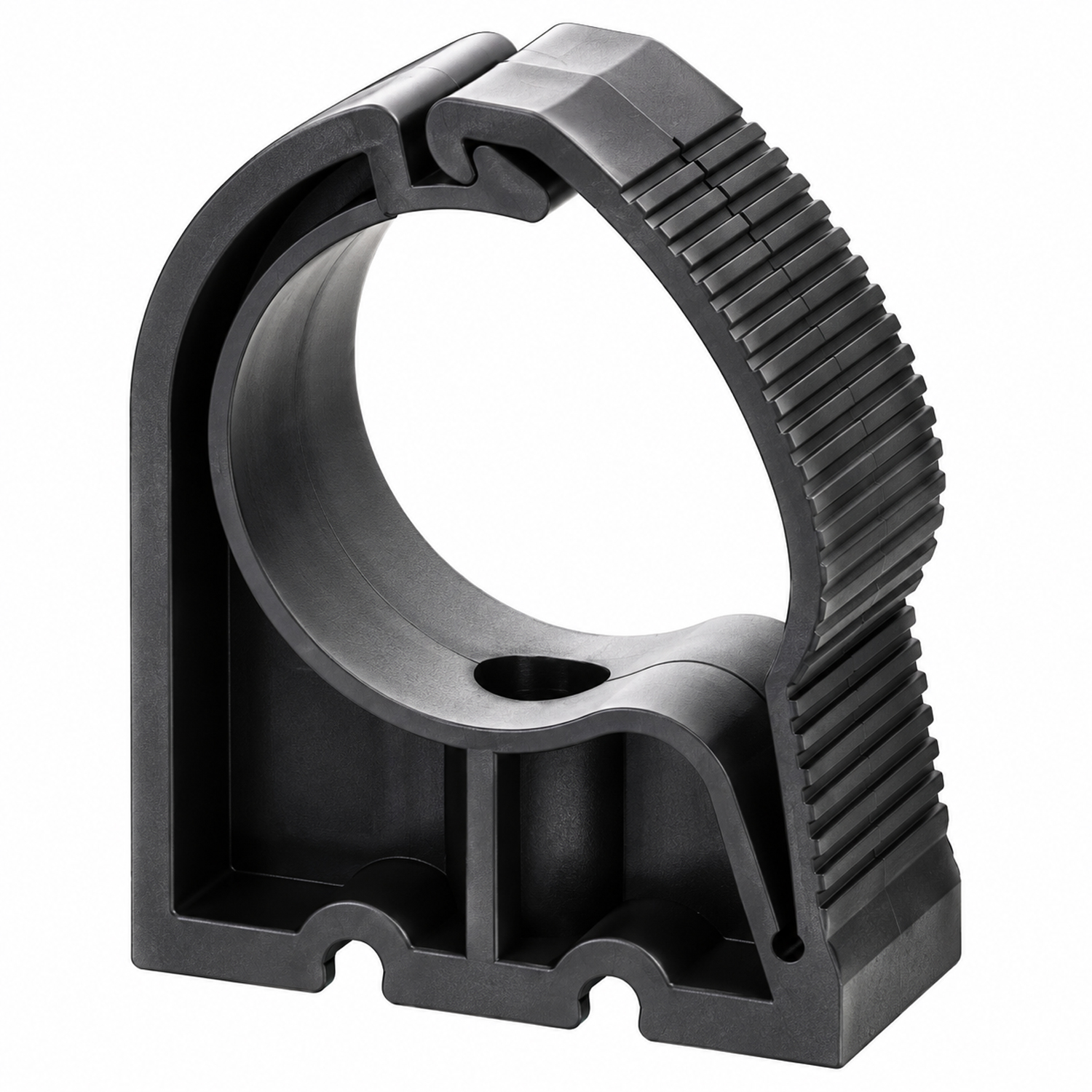

Secure and align 20 mm (3/4 in) AIRpipe aluminum piping with this rugged fixture clip. The 3/8-16 threaded mounting connection simplifies supported installations while the clip design accommodates normal expansion, contraction, and vibration of the piping system.
AIRpipe USA 1022 is a fixture clip designed for supporting and aligning AIRpipe aluminum tubing. It supports and aligns AIRpipe tubing in suspended, wall-mounted, or structural installations while providing a stable, serviceable mounting point for the piping run. Key specifications: Pipe Size: 3/4 in; Temperature Range: -4°F to 176°F; Mounting Type: Threaded 3/8-16; For Use With: AIRpipe aluminum compressed air systems; Configuration: 3/8-16 threaded rod port.
| Mounting Type | : | Threaded 3/8-16 |
| Pipe Size | : | 3/4 in |
| Specifications | : | 3/8-16 threaded rod port |
| Suitable For Use With | : | AIRpipe aluminum compressed air systems |
| Temperature Rating | : | -4 to +176 deg F |
| Type | : | Fixture Clip |
- Supports and aligns AIRpipe aluminum tubing
- Pipe Size: 3/4 in
- Mounting Type: Threaded 3/8-16
- Specifications: 3/8-16 threaded rod port
- Suitable For Use With: AIRpipe aluminum compressed air systems
- Operating limits: Temperature Rating: -4 to +176 °F
