Hi-Lo 150DCVX5/8 Variable Speed Sheave, 5/8 in Bore
Hi-Lo 150DCVX5/8 two-face variable speed pulley, B-belt, 5/8 in bore
- Manufacturer: Hi-Lo Manufacturing
- Brand Name: Hi-Lo
- Part Number: HIL150DCV5/8
- MPN: 150DCVX5/8
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price: Call for Price

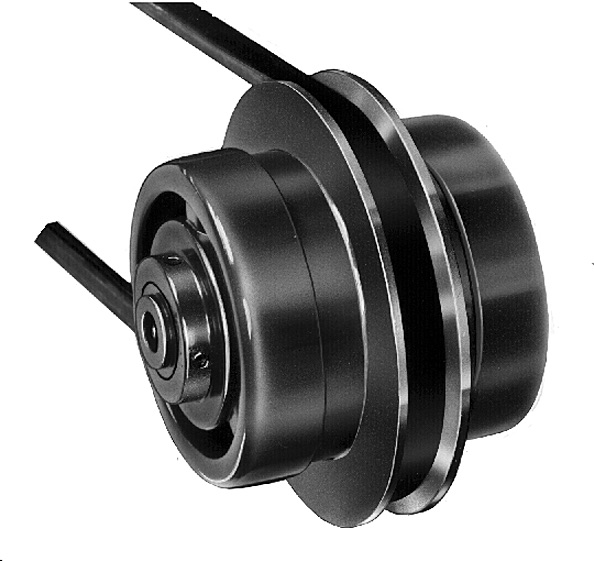

The Hi-Lo 150DCVX5/8 is a spring-loaded, two-face movable variable speed pulley for adjustable center-distance V-belt drives. Rated 1.5 hp at 1750 RPM (1 hp at 1150 RPM) with a 2.5:1 pitch-diameter range of 4.70 to 1.88 in, it runs a B-section belt on a 5 in outside diameter aluminum-alloy face set. The 5/8 in plain bore, torque-sensing cam design, and oil-impregnated bronze bushings help maintain belt alignment on close centers while matching belt tension to load. Use it wherever Tri-State's DCV150 X 7/8 sibling is specified, but with a 5/8 in motor shaft.
| Bore Diameter | : | 5/8 in |
| Bore Type | : | Finished Bore |
| Material | : | Aluminum Alloy |
| Outside Diameter | : | 5.00 in |
| Pitch Diameter | : | 1.88 - 4.70 in |
| Series | : | DCV |
| Suitable For Use With | : | B Section V-Belt |
| Type | : | Variable Pitch Sheave |
MPN 150DCVX5/8; Tri-State SKU HIL150DCV5/8
Two-face movable DCV design for belt alignment on close center distances
5/8 in plain bore; B-section belt; OD 5.00 in; PD 4.70–1.88 in (2.5:1)
1.5 hp @ 1750 RPM / 1 hp @ 1150 RPM
Aluminum-alloy faces with permanently lubricated bronze bushings
Approx. shipping weight 4.1 lb
