G & G Manufacturing 042-5618 GGM042-5618
G&G 042-5618 solid-steel double-groove A/B V-belt pulley with 3.5 in OD and 1.125 in finished bore, standard keyway and two set screws.
- Manufacturer: G & G MANUFACTURING CO.
- Brand Name: G & G Manufacturing
- Part Number: GGM042-5618
- MPN: 042-5618
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Heavy solid-steel double-groove pulley engineered for A/B V-belt drives with a finished keyed bore and secure dual set-screw mounting.

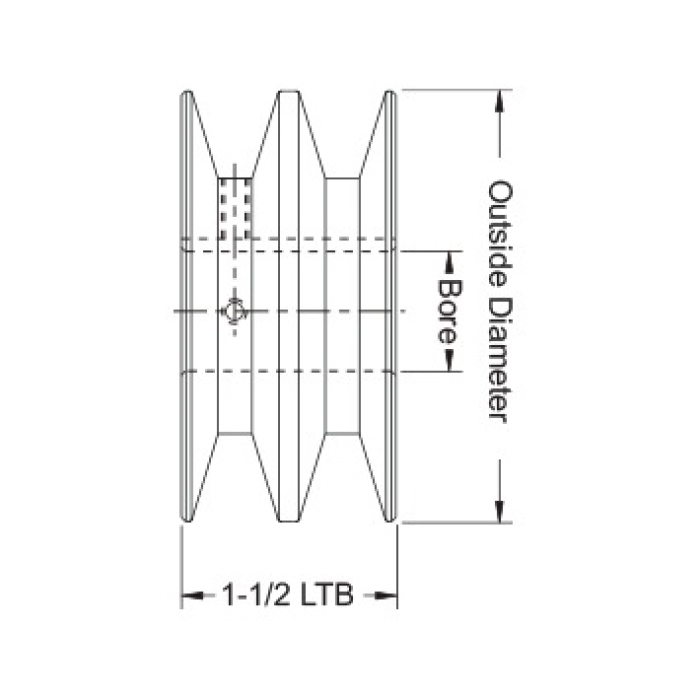

G&G Manufacturing 042-5618 is a double-groove solid-steel pulley designed for A and B section V-belts. It features a 3.5 in outside diameter, 1.125 in finished bore, standard keyway and two set screws for secure shaft attachment. The pulley weighs approximately 2.25 lb.
| Belt Type | : | A/B |
| Bore Diameter | : | 1.125 in |
| Number of Grooves | : | 2 |
| Outside Diameter | : | 3.5 in |
| Pulley Type | : | Type A |
| Type | : | Solid Steel V-Belt Pulley |
| in | : | Number of Grooves 2 |
- Double-groove A/B V-belt pulley
- Solid-steel construction
- 3.5 in outside diameter
- 1.125 in finished bore
- Standard keyway
- Two set screws
- Approximate weight: 2.25 lb
- NOVA Import product
