G & G Manufacturing 042-4818 GGM042-4818
G&G 042-4818 solid-steel double-groove A/B V-belt pulley with 3 in OD and 1.125 in finished bore. Includes standard keyway and two set screws.
- Manufacturer: G & G MANUFACTURING CO.
- Brand Name: G & G Manufacturing
- Part Number: GGM042-4818
- MPN: 042-4818
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Compact solid-steel double-groove pulley for A/B V-belt drives, supplied with a finished keyed bore and dual set-screw shaft retention.

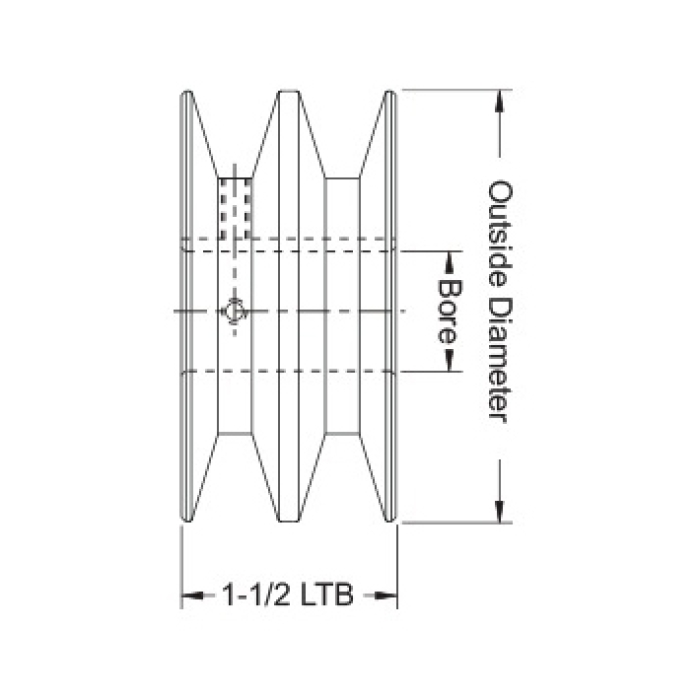

G&G Manufacturing 042-4818 is a solid-steel Type A double-groove pulley designed for A and B section V-belts. It features a 3 in outside diameter and 1.125 in finished bore with a standard keyway and two set screws for secure shaft mounting. The pulley weighs approximately 1.40 lb.
| Belt Type | : | A/B |
| Bore Diameter | : | 1.125 in |
| Number of Grooves | : | 2 |
| Outside Diameter | : | 3 in |
| Pulley Type | : | Type A |
| Type | : | Solid Steel V-Belt Pulley |
| in | : | Number of Grooves 2 |
- Double-groove A/B V-belt pulley
- Solid-steel construction
- 3 in outside diameter
- 1.125 in finished bore
- Standard keyway
- Two set screws
- Approximate weight: 1.40 lb
- NOVA Import product
