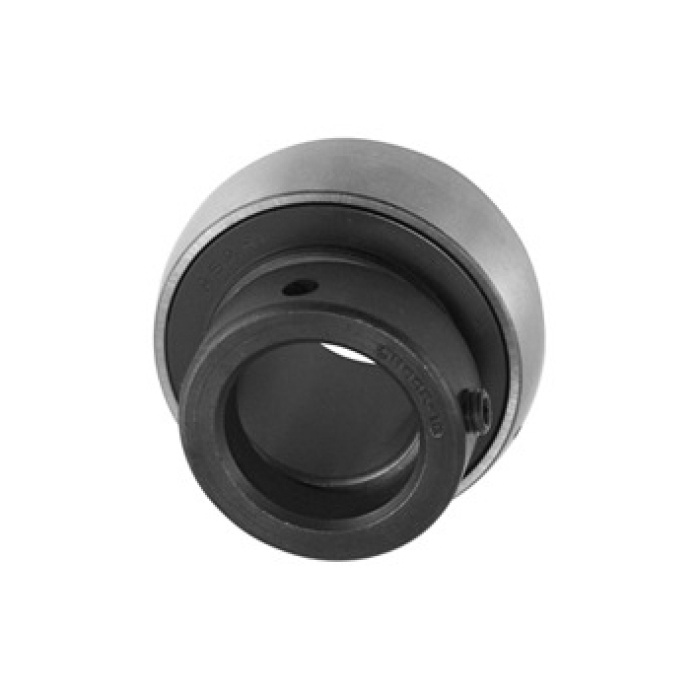

AMI Bearings UG212 AMIUG212
UG212 is an eccentric collar locking insert for 60 mm shafts, combining strong shaft retention with robust insert dimensions for heavy service.
- Manufacturer: AMI Bearings
- Brand Name: AMI Bearings
- Part Number: AMIUG212
- MPN: UG212
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
-
Price:
UG212 is a solid choice when you prefer eccentric collar locking on larger shafts. It is well suited for equipment where vibration or reversing loads are common and you want added resistance to shaft slip.With a 60 mm bore, 110 mm insert OD, and 77.8 mm overall width, it is straightforward to match to compatible housings and validate replacements during rebuilds.
| Series | : | UG200/UGW200 |
- Type: eccentric collar locking bearing insert (spherical OD)
- Shaft bore (Bore Size): 60 mm
- Outside diameter (Insert OD): 110 mm
- Overall width: 77.8 mm
- Inner ring width: 61.9 mm
- Outer ring width: 26 mm
- Chamfer/fillet radius: 2.5 mm
- Set screw thread: M12x1.5
- Dynamic load rating: 5350 kgf; Static load rating: 3700 kgf
- Weight: 3.79 lb
