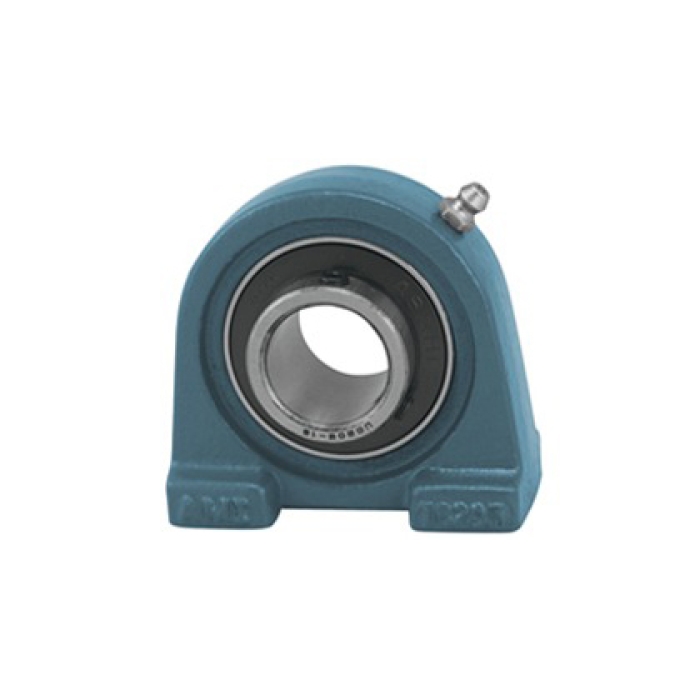

AMI Bearings UCTB207-23 AMIUCTB207-23
UCTB207-23 is a tapped-base pillow block unit for 1-7/16" shafts, ideal when your mounting design benefits from integrated base threading.
- Manufacturer: AMI Bearings
- Brand Name: AMI Bearings
- Part Number: AMIUCTB207-23
- MPN: UCTB207-23
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
-
Price:
UCTB207-23 adds a practical advantage to the classic pillow block format: a tapped base that can simplify mounting when backside access is limited or when a threaded mounting design is preferred. It supports a 1-7/16 in shaft and keeps service straightforward with a common mounted-bearing form factor.Defined height, base length, and overall width make it easy to integrate into equipment layouts and replacements.
| Base Width | : | 3-3/4 in |
| Bolt Center-to-Center Length | : | 3-1/4 in |
| Bore Diameter | : | 1-7/16 in |
| Locking Device | : | Set Screw |
| Material | : | Cast Iron Housing |
| Mounting Type | : | Tapped Base Pillow Block |
| Overall Height | : | 1-7/8 in |
| Overall Length | : | 4-1/4 in |
| Overall Width | : | 1-7/8 in |
| Series | : | UCTB200 |
- Type: tapped-base pillow block mounted bearing unit (set screw locking)
- Shaft bore (Bore Size): 1-7/16 in
- Lubrication fitting tap: 1/8-27 NPT
- Weight: 3.75 lb
- Shaft center height from base: 1-7/8 in
- Overall base length: 4-1/4 in
- Overall housing width: 3-3/4 in
- Base width: 1-7/8 in
- Base thread: 1/2-13
